Product Code: B650M-GAMING-PLUS-WIFI

MSI B650M Gaming Plus WIFI DDR5 AM5 mATX Motherboard

Rs. 32,000.00 Rs. 16,333.00

*GST & Offers are Calculated at Checkout!
Free Shipping
Verified by Sentinel
7-Day Return
Verified by Sentinel
Secure Checkout
Verified by Sentinel
  • Brand
    MSI
  • Color
    • White
  • Chipset
    AMD B650
    Supported CPUs
    Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
    Memory
    4x DDR5 UDIMM, Maximum Memory Capacity 256GB ,Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
    Dual-Channel Mode
    Supported
    Non-ECC, un-buffered memory
    Supported
    AMD EXPO™
    Supported
    Max. overclocking frequency
    1DPC 1R Max speed up to 7200+ MHz, 1DPC 2R Max speed up to 6000+ MHz, 2DPC 1R Max speed up to 6000+ MHz, 2DPC 2R Max speed up to 5400+ MHz
    Onboard Graphics
    1x HDMI™, Support HDMI™ 2.1, maximum resolution of 4K 60Hz*, 1x DisplayPort, Support DP 1.4, maximum resolution of 4K 60Hz*, *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    Slot
    1x PCI-E x16 slot - Supports x16/x4 (For Ryzen™ 9000/ 7000 Series processors), Supports x8/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors), Supports x4/x4 (For Ryzen™ 8500/ 8300 Series processors), 2x PCI-E x1 slot, PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU), PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
    Audio
    Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
    Storage
    2x M.2, M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, 4x SATA 6G, M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 8500/ 8300 Series processor is installed
    RAID
    Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1 for M.2 NVMe storage devices
    USB
    4x USB 2.0 (Front), 4x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front), 3x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Rear), 1x USB 10Gbps Type C (Front)
    LAN
    Realtek® RTL8125BG 2.5Gbps
    Internal IO
    1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 3x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Tuning Controller connector(JDASH), 2x Addressable V2 RGB LED connector (JARGB_V2), 2x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 2x USB 5Gbps Type A ports, 1x USB 10Gbps Type C ports
    Wireless LAN & Bluetooth
    Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.3**, * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11, ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
    LED Feature
    4x EZ Debug LED

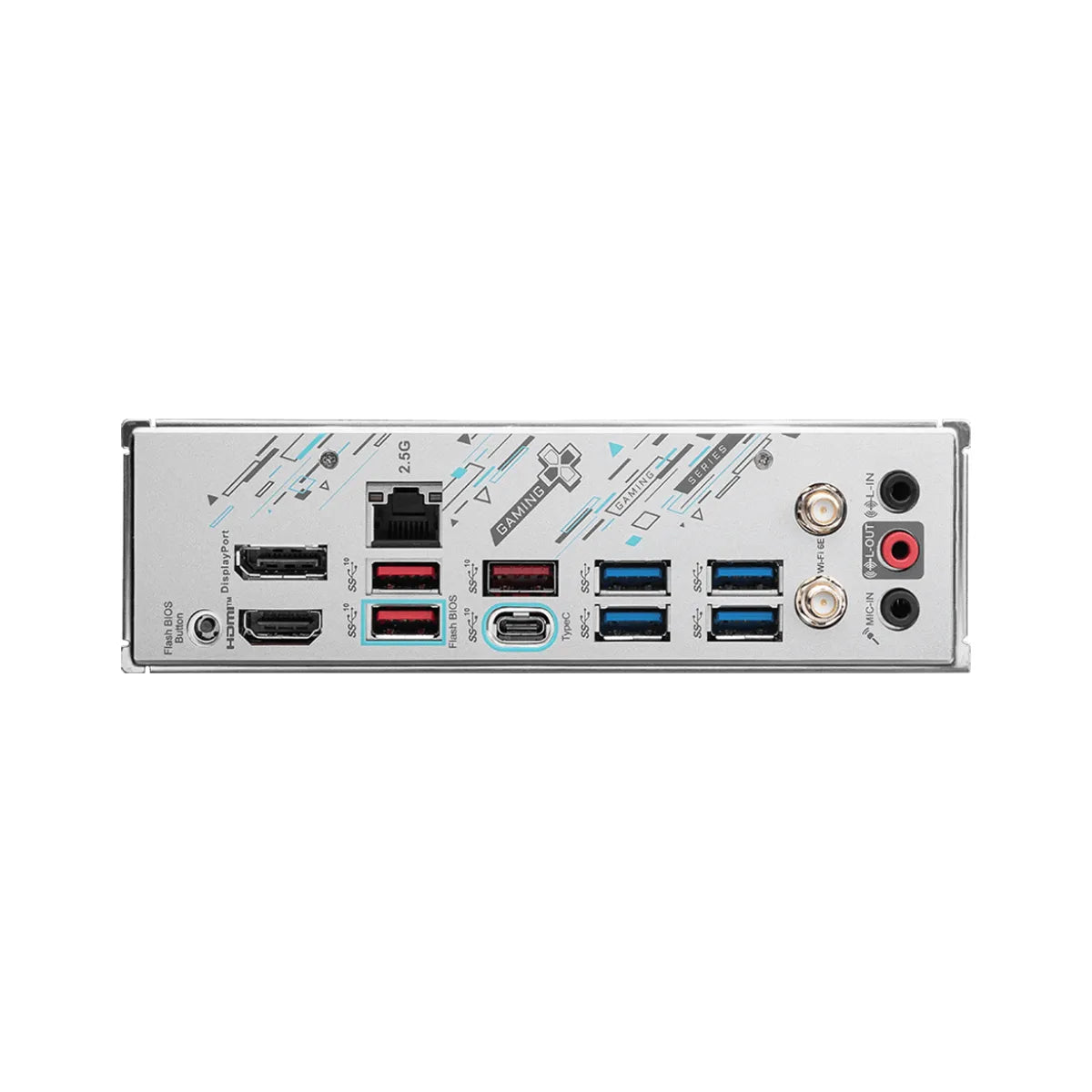

    Back Panel Ports
    DisplayPort, 2.5G LAN, USB 3.2 Gen 2 10Gbps (Type-A), USB 3.2 Gen 1 5Gbps (Type-A), Wi-Fi / Bluetooth, Flash BIOS Button, HDMI™, USB 3.2 Gen 2 10Gbps (Type-A), USB 3.2 Gen 2 10Gbps (Type-C), Audio connectors
    Operating System
    Support for Windows® 11 64-bit, Windows® 10 64-bit
    PCB Info
    mATX, 243.84mmx243.84mm
