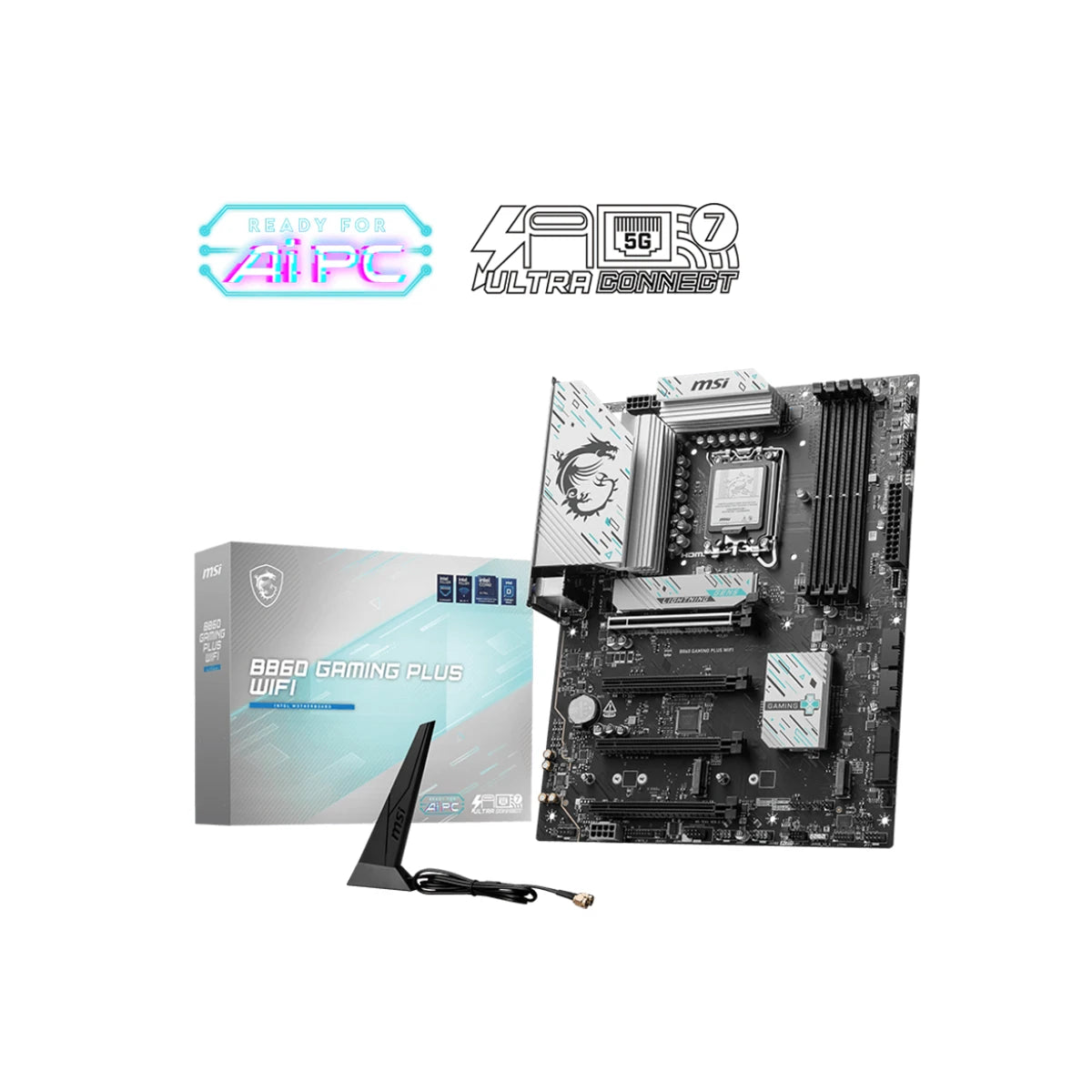

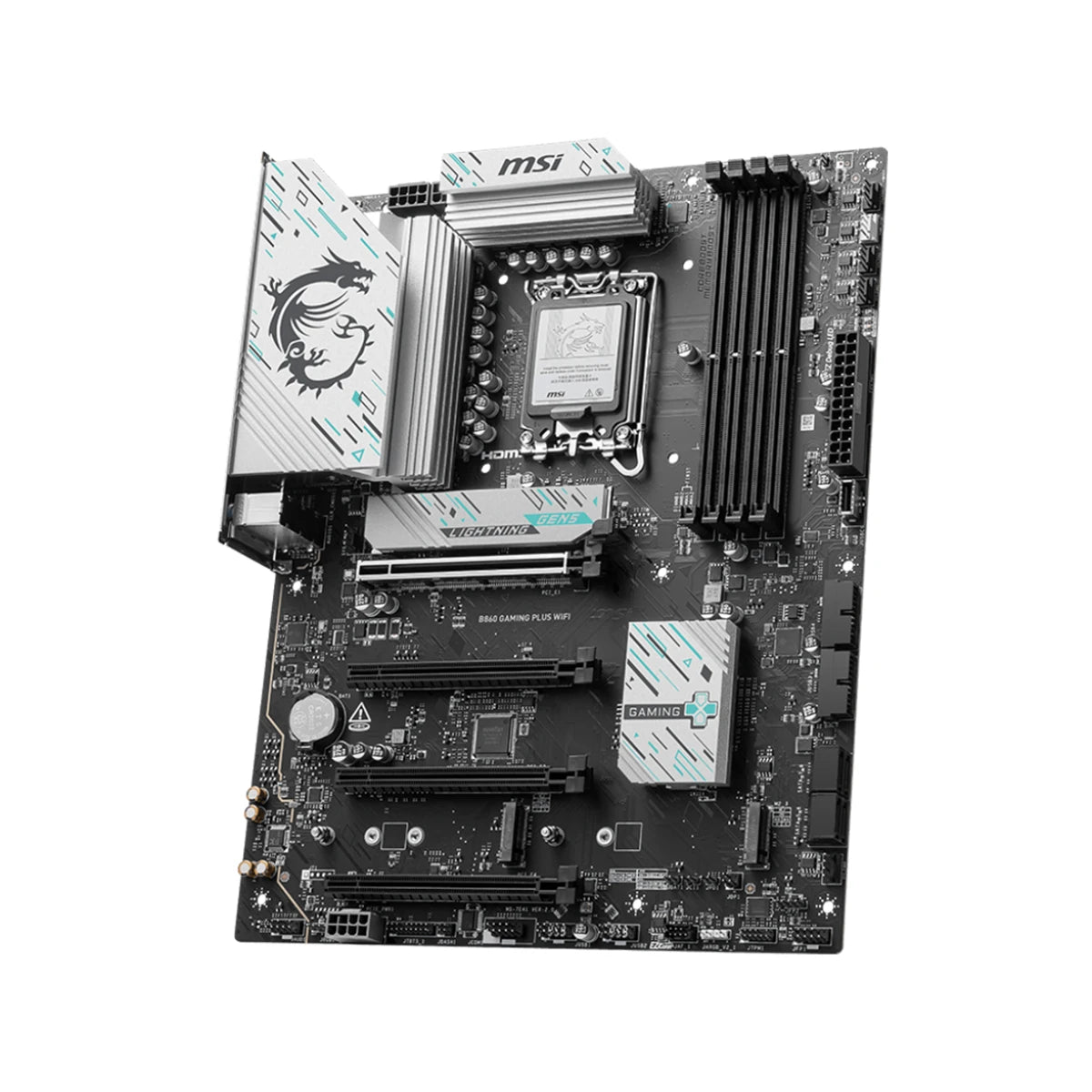

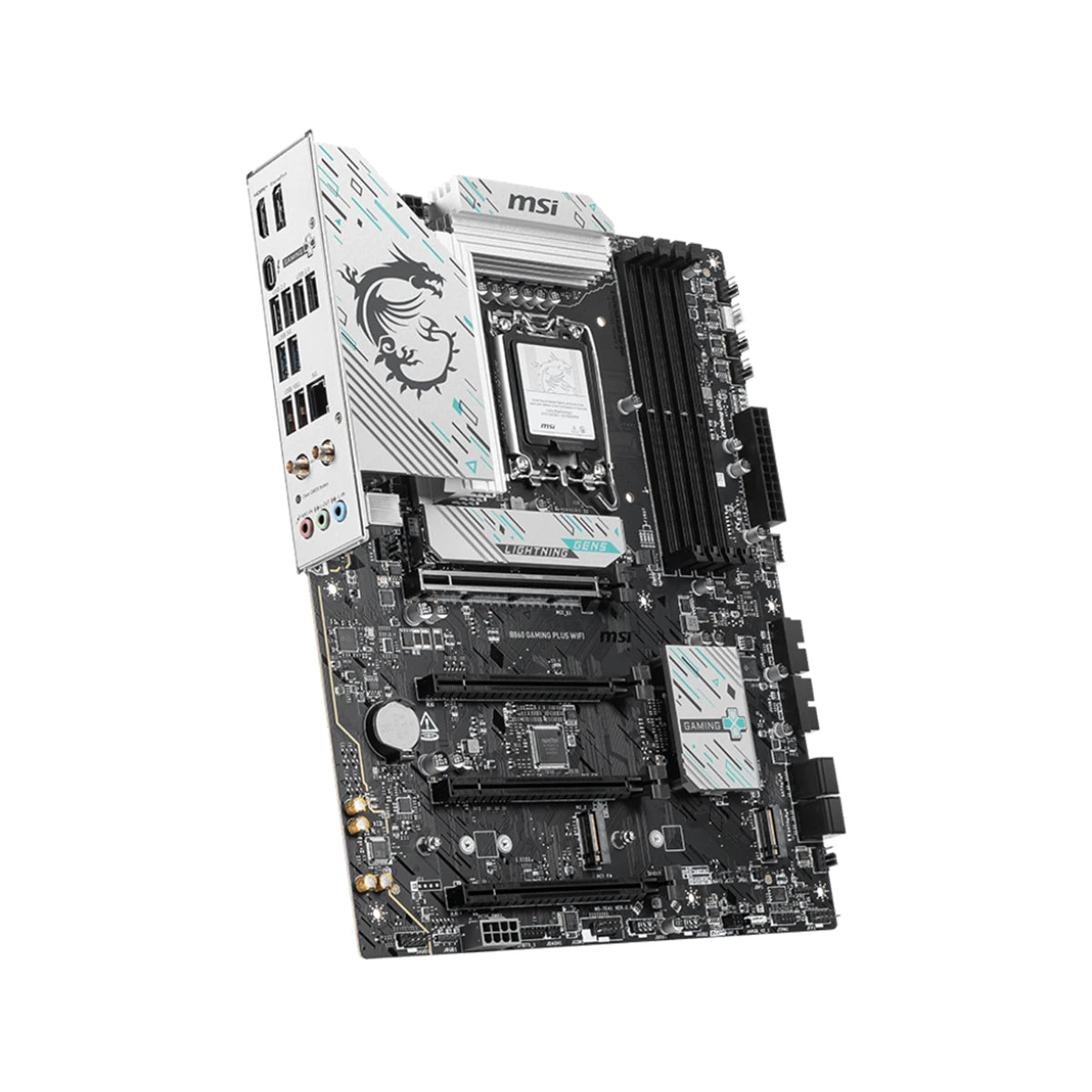

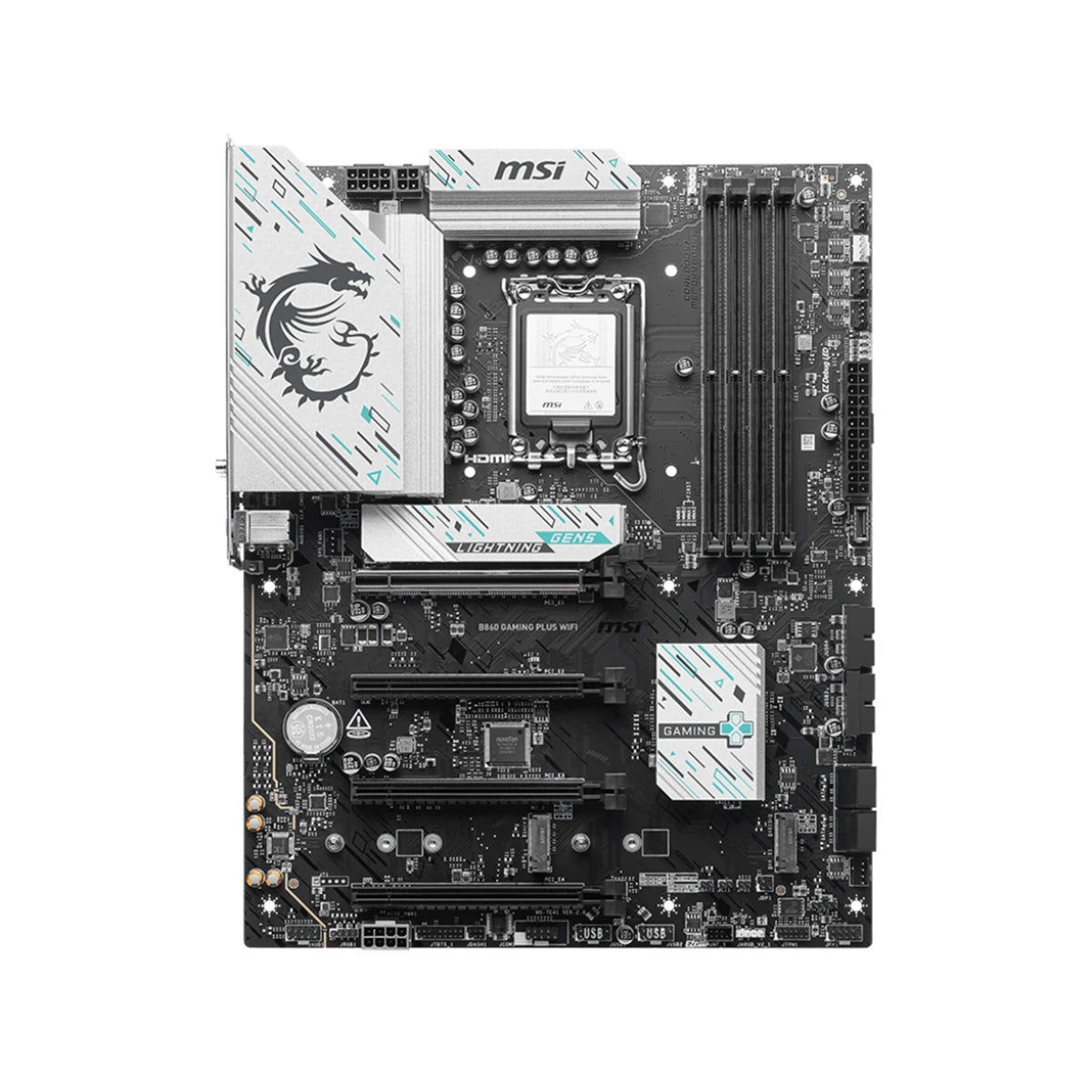

MSI B860 Gaming Plus WiFi LGA 1851 ATX Motherboard

MSI B860 GAMING PLUS WIFI

Introducing the MSI B860 GAMING PLUS WIFI—a powerhouse ATX motherboard engineered for gamers and PC enthusiasts seeking top-tier performance, advanced connectivity, and robust durability. Built on the Intel B860 chipset, it supports Intel® Core™ Ultra Processors (Series 2) with the LGA 1851 socket, delivering exceptional power and features for demanding applications.

🧠 Unleash Next-Gen Performance

• Supports Intel® Core™ Ultra Processors (Series 2): With the LGA 1851 socket, ensuring compatibility with the latest CPUs.
• 12 Duet Rail Power System with P-PAK: Provides stable and efficient power delivery for optimal performance.
• DDR5 Memory Support: Accommodates up to 256GB of DDR5 memory, with speeds reaching up to 8800+ MT/s (OC), delivering lightning-fast data processing capabilities.

⚡ Advanced Connectivity

• Wi-Fi 7 & Bluetooth® 5.4: Offers ultra-fast wireless connections with speeds up to 5.8Gbps, ensuring seamless online experiences.
• Intel® Killer™ 5G LAN: Provides high-speed wired networking options for low-latency gaming and data transfers.
• Thunderbolt™ 4 Port: Delivers up to 40Gbps data transfer speeds, supporting up to 8K displays, and offering 15W power delivery.

💾 Versatile Storage Options

• Three M.2 Slots: 1x PCIe 5.0 x4 (CPU), 1x PCIe 4.0 x4 (Chipset), 1x PCIe 4.0 x2 (Chipset)
• Four SATA 6Gb/s Ports: Provides additional storage options for HDDs and SSDs.
• RAID Support: RAID 0, 1, 5, 10 for SATA devices.

❄️ Efficient Thermal Management

• Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads, and EZ M.2 Shield Frozr II for improved thermal dissipation.
• Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers, including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan), and system fan.
• Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

🛠️ EZ DIY Features

• EZ M.2 Shield Frozr II: Tool-free design for easy installation and improved thermal performance of M.2 SSDs.
• EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.
• EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in cramped case spaces.
• EZ Antenna: MSI's latest Wi-Fi antenna features a magnetic design, making it easier to adjust the antenna's placement.

🎨 Immersive Audio & Visuals

• Audio Boost: Delivers high-quality sound for an immersive gaming experience.

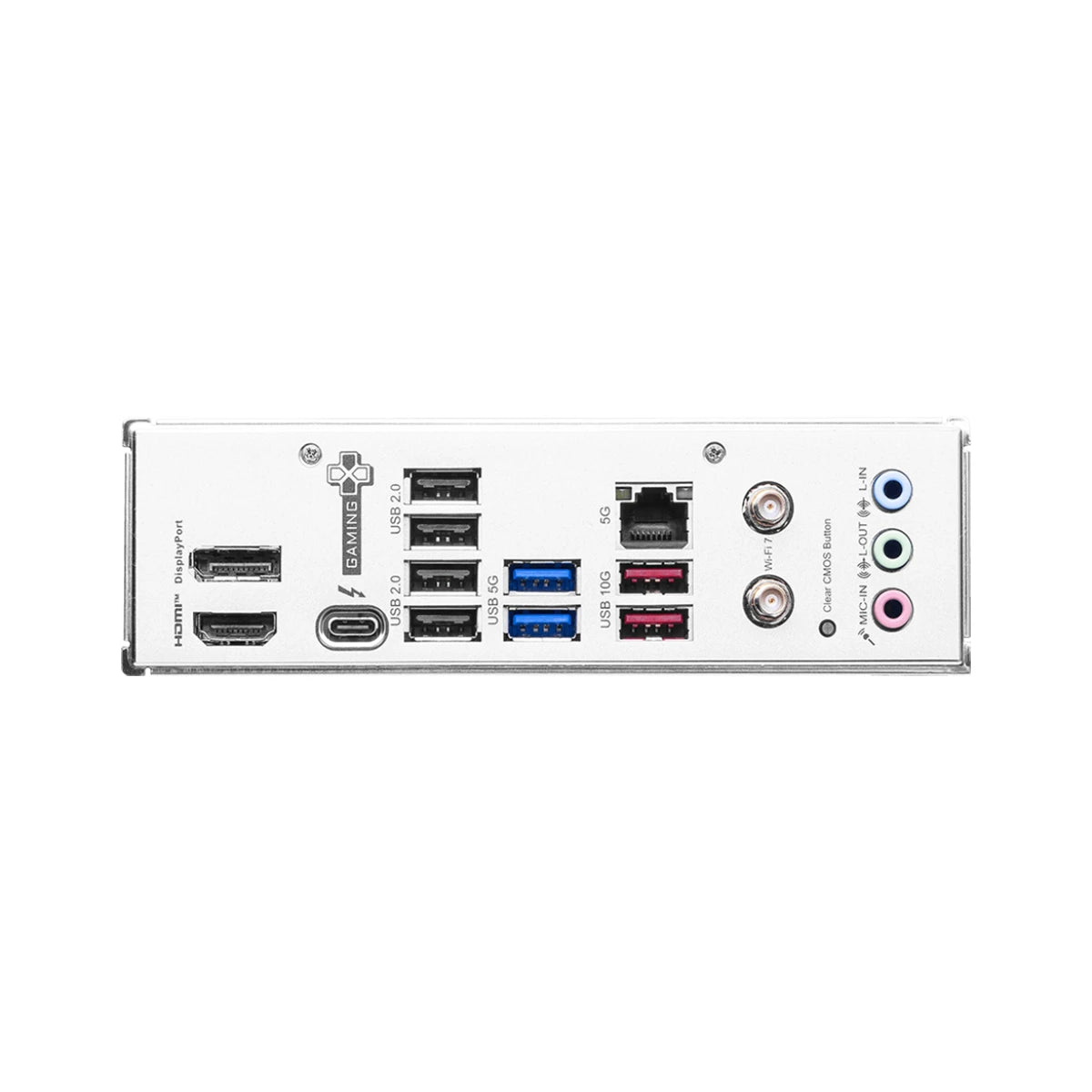

• Display Outputs: 1x HDMI™ 2.1 (4K @60Hz), 1x DisplayPort 1.4 (4K @60Hz), 1x Thunderbolt™ 4 Type-C (up to 8K @60Hz)

The MSI B860 GAMING PLUS WIFI motherboard stands as a testament to MSI's commitment to excellence, offering a feature-rich platform that caters to the needs of gamers and PC enthusiasts alike. With its advanced power delivery, next-gen connectivity, and innovative design elements, it's the ultimate choice for building a high-performance PC.
