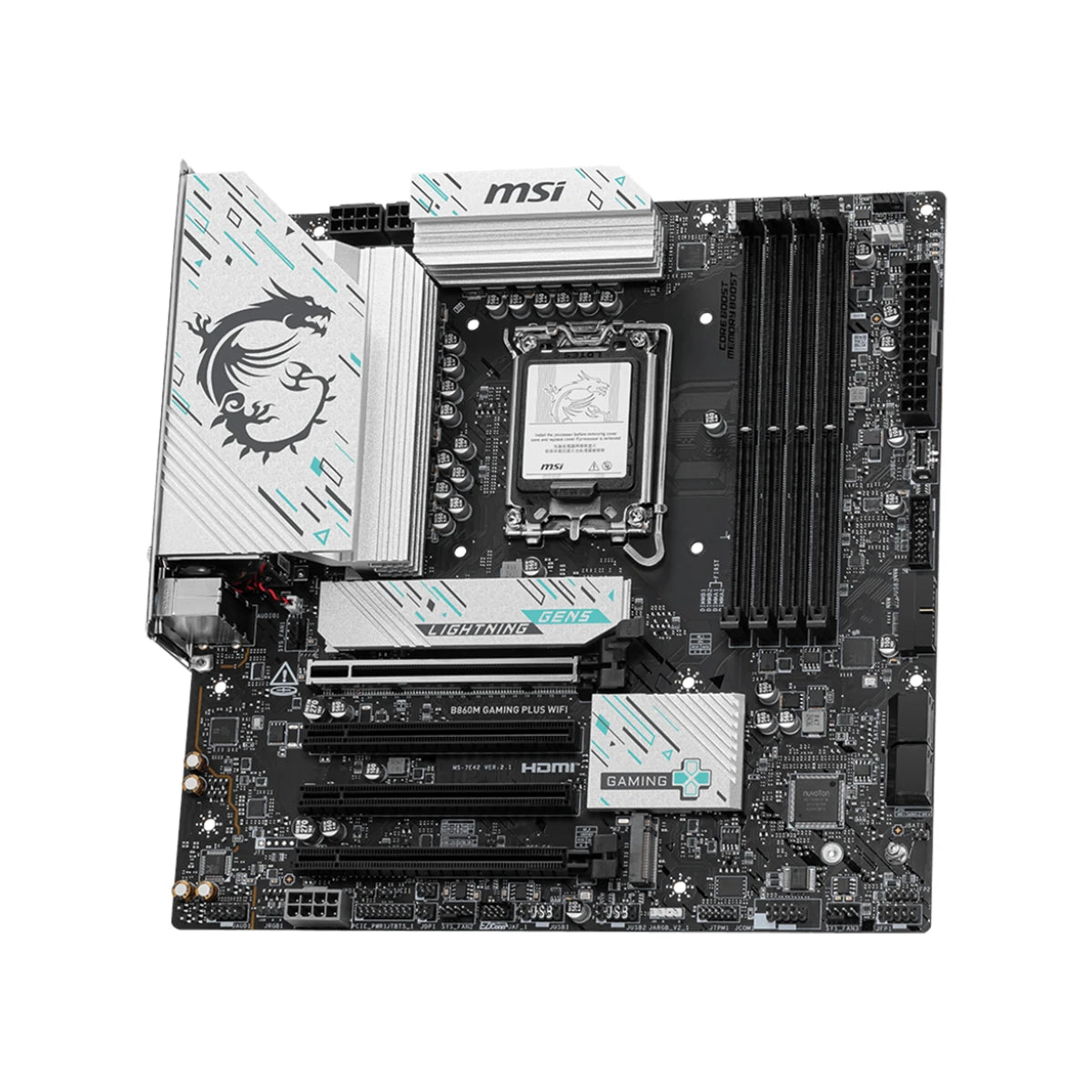

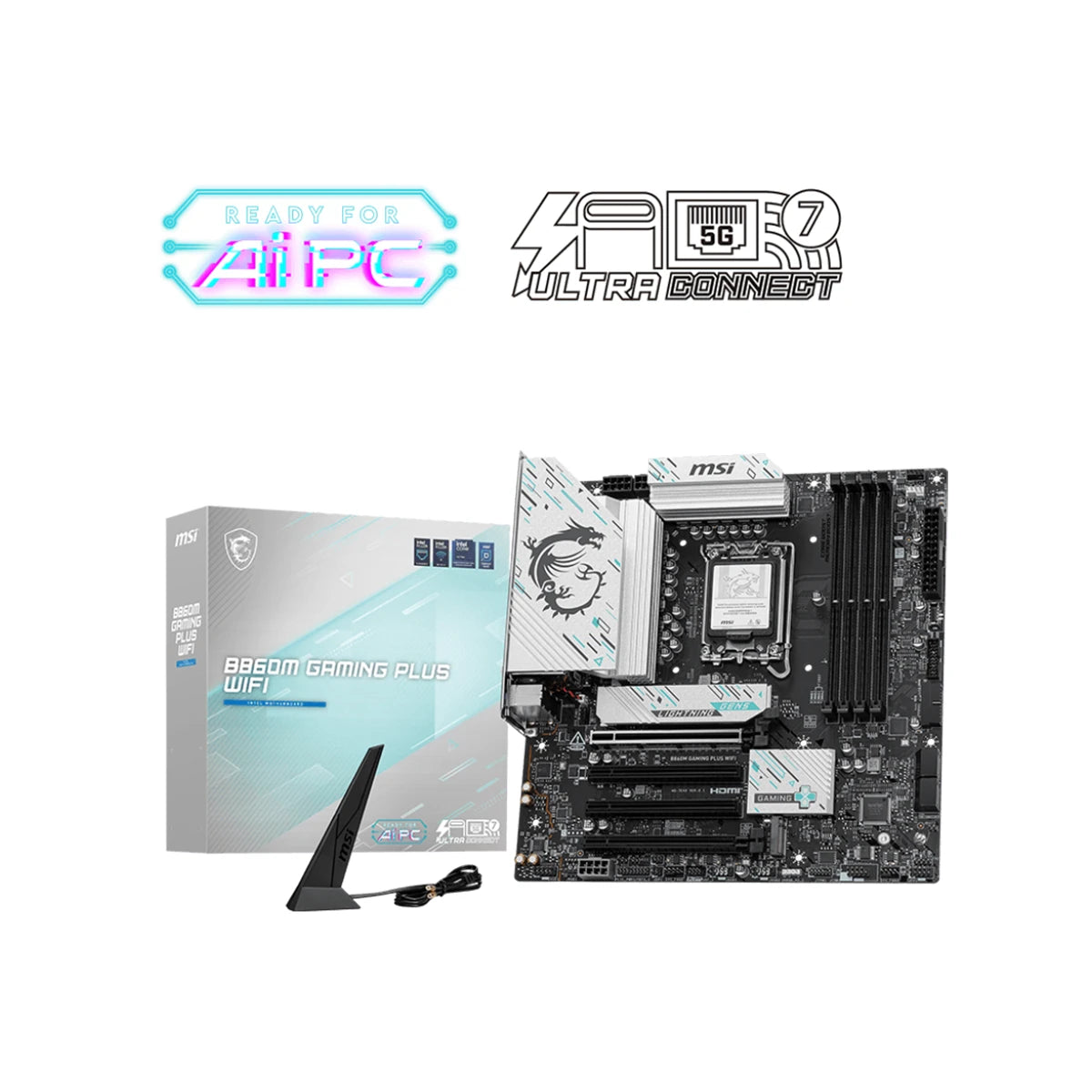

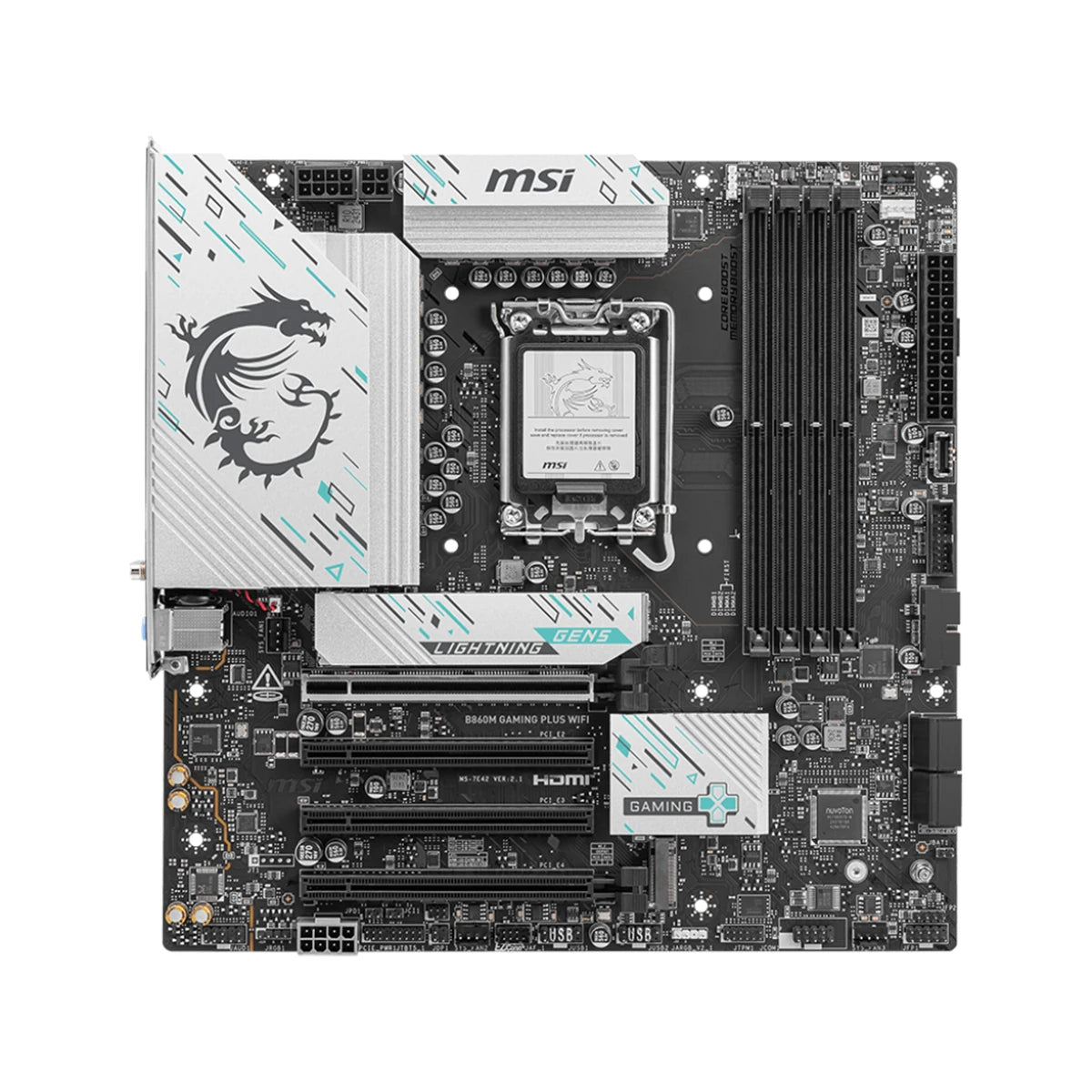

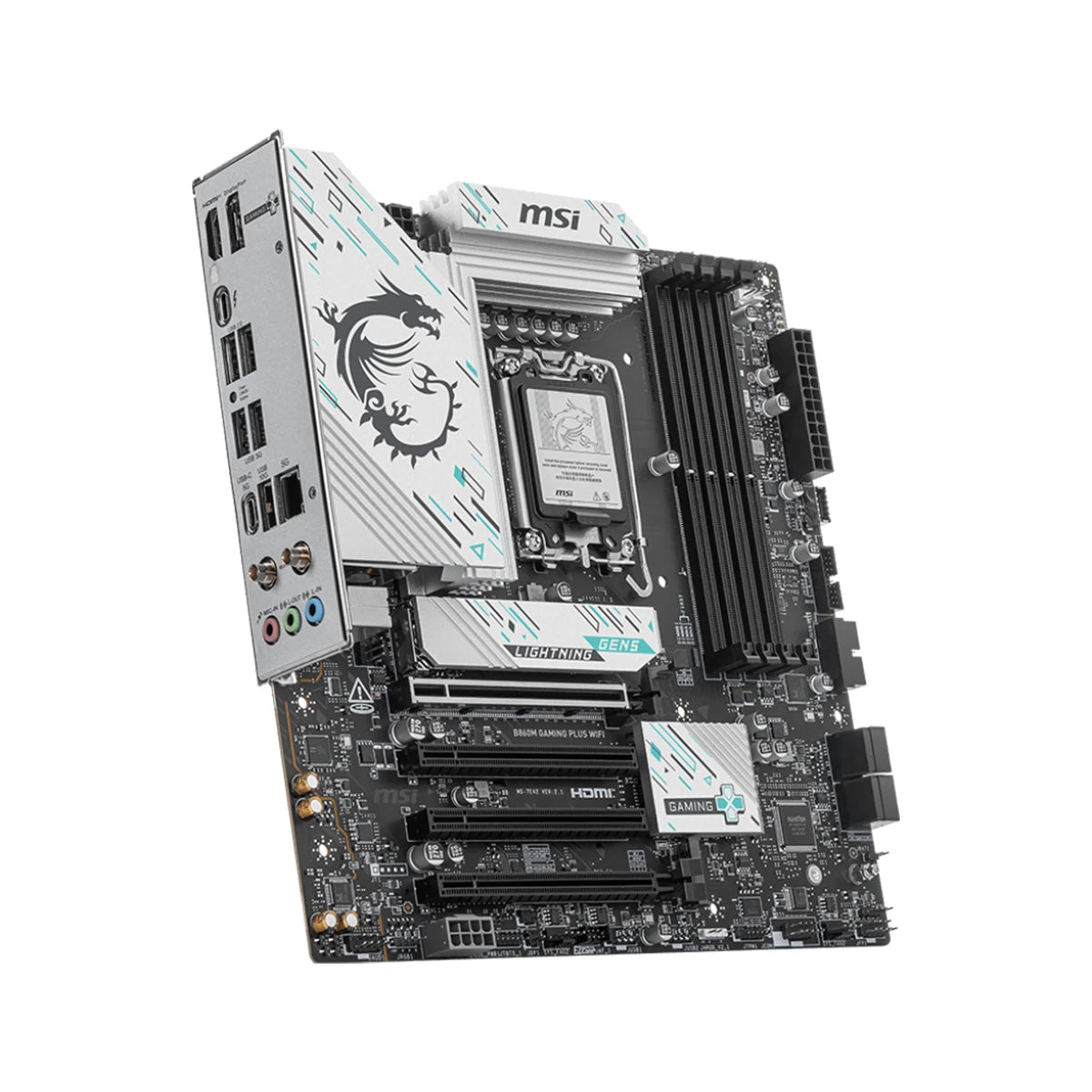

MSI B860M Gaming Plus WiFi LGA 1851 mATX Motherboard
MSI B860M Gaming Plus WiFi LGA 1851 mATX Motherboard is backordered and will ship as soon as it is back in stock.
*GST & Offers are Calculated at Checkout!
Couldn't load pickup availability
-
Brand
-
MSI B860M GAMING PLUS WIFI
Elevate your gaming experience with the MSI B860M GAMING PLUS WIFI motherboard. Designed for gamers and PC enthusiasts, this Micro-ATX board offers cutting-edge features, robust performance, and advanced connectivity to meet the demands of modern gaming and computing.
🔧 Key Features
- Socket & Chipset: Supports Intel® Core™ Ultra Processors (Series 2) with LGA 1851 socket on the Intel B860 chipset.
- Memory Support: 4x DDR5 DIMM slots supporting up to 256GB, with speeds up to 8800+ MT/s (OC), ensuring rapid data processing and multitasking.
- Power Design: 12+1+1+1 Duet Rail Power System with digital PWM IC, providing stable and efficient power delivery for optimal performance.
- Graphics Outputs: Equipped with HDMI™ 2.1, DisplayPort 1.4, and Thunderbolt™ 4 Type-C, supporting resolutions up to 8K@60Hz.
⚡ Advanced Connectivity
- Wi-Fi 7 & Bluetooth® 5.4: Delivers ultra-fast wireless connections with speeds up to 5.8Gbps, ensuring seamless online experience.
- Intel® Killer™ E5000 5Gbps LAN: Provides high-speed wired networking options for low-latency gaming and data transfer.
- Thunderbolt™ 4 Port: Offers up to 40Gbps data transfer speeds, supporting up to 8K displays, and providing 15W power delivery.
💾 Storage & Expansion
- M.2 Slots: 1x PCIe 5.0 x4 (CPU), 1x PCIe 4.0 x4 (Chipset), 1x PCIe 4.0 x2 (Chipset)
- SATA Ports: 4x SATA 6Gb/s ports for additional storage options.
- RAID Support: Supports RAID 0, 1, 5, and 10 for SATA storage devices.
- PCIe Slots: 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (Chipset), 2x PCIe 4.0 x1 (Chipset)
❄️ Cooling & Thermal Management
- Extended Heatsink Design: Ensures optimal cooling for VRMs and other critical components.
- M.2 Shield Frozr: Provides thermal protection for M.2 SSDs, maintaining performance under heavy workloads.
- 7W/mK Thermal Pads: High-quality thermal pads ensure stable performance during intense operations.
🎮 Gaming & Audio Features
- Audio Boost: Delivers high-quality 7.1-channel HD audio for an immersive gaming experience.
- Mystic Light: Customize and synchronize RGB lighting with compatible devices for a personalized setup.
🛠️ EZ DIY Features

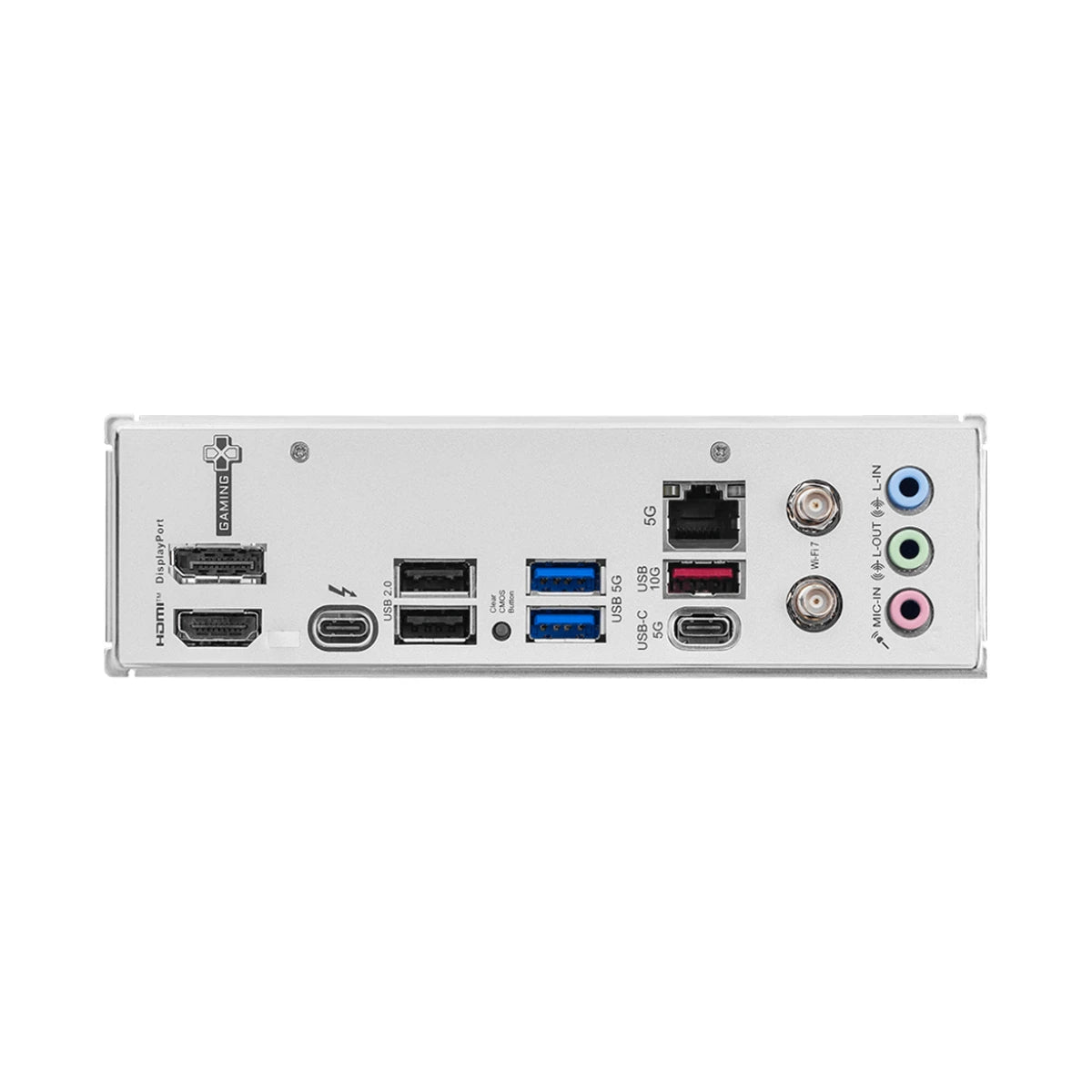

- Pre-Installed I/O Shield: Streamlines the installation process and enhances durability.
- EZ M.2 Clip II: Tool-free design for easy installation and improved thermal performance of M.2 SSDs.
- EZ PCIe Clip II: Facilitates quick and secure installation of PCIe devices.
- EZ Antenna: Magnetic design allows for easy adjustment and optimal signal reception.
The MSI B860M GAMING PLUS WIFI motherboard stands as a testament to MSI's commitment to excellence, offering a feature-rich platform that caters to the needs of gamers and PC enthusiasts alike. With its advanced power delivery, next-gen connectivity, and innovative design elements, it's the ultimate choice for building a high-performance PC.
