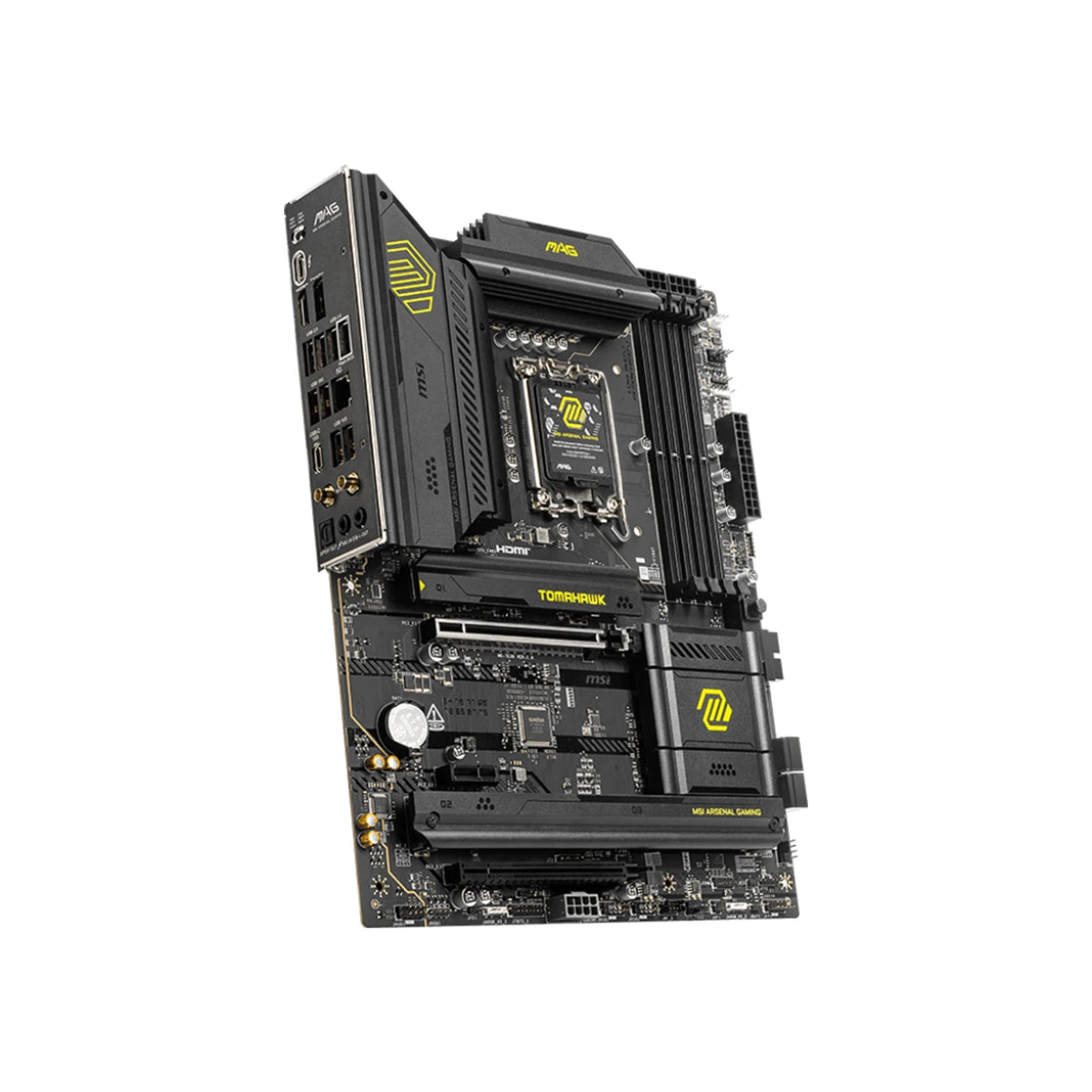

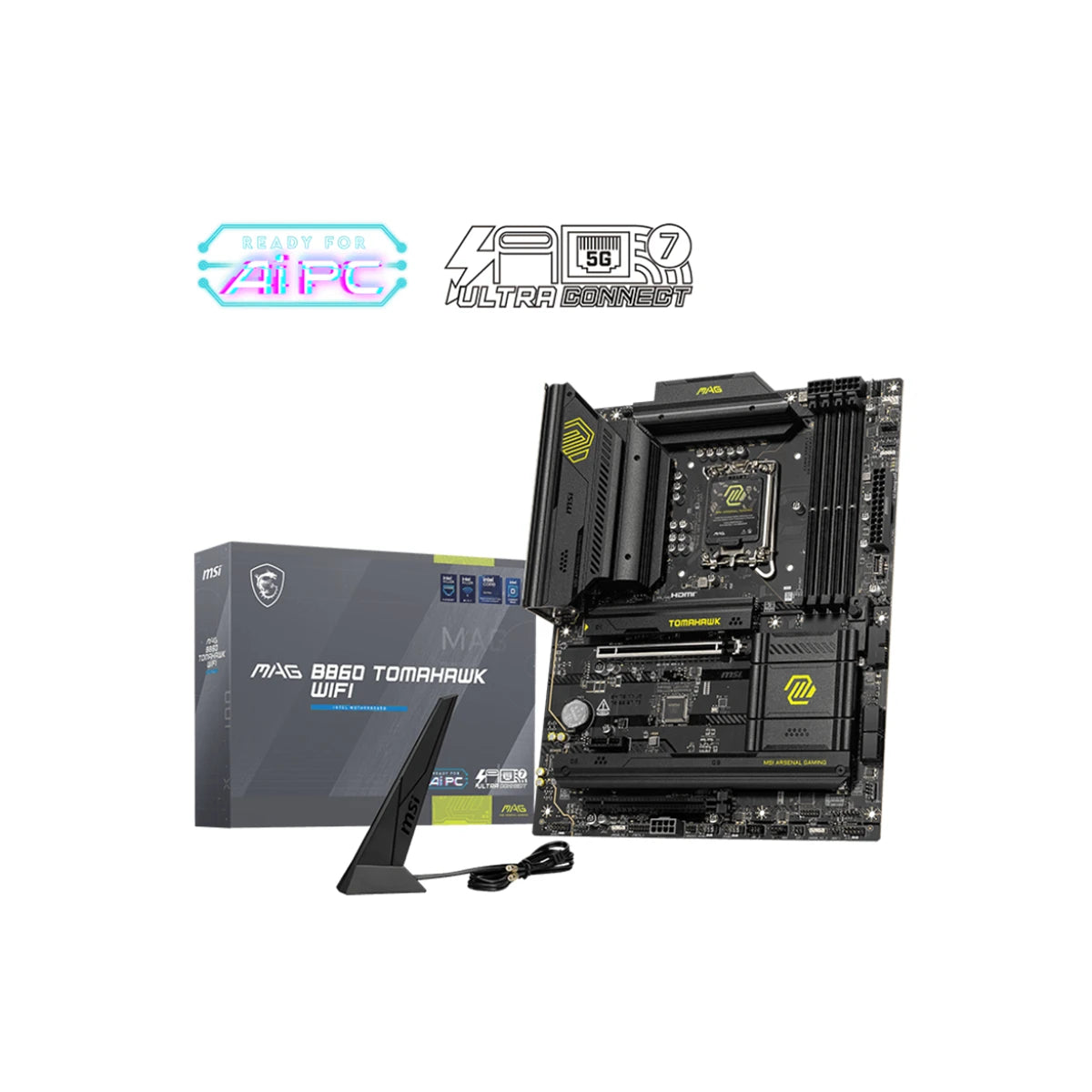

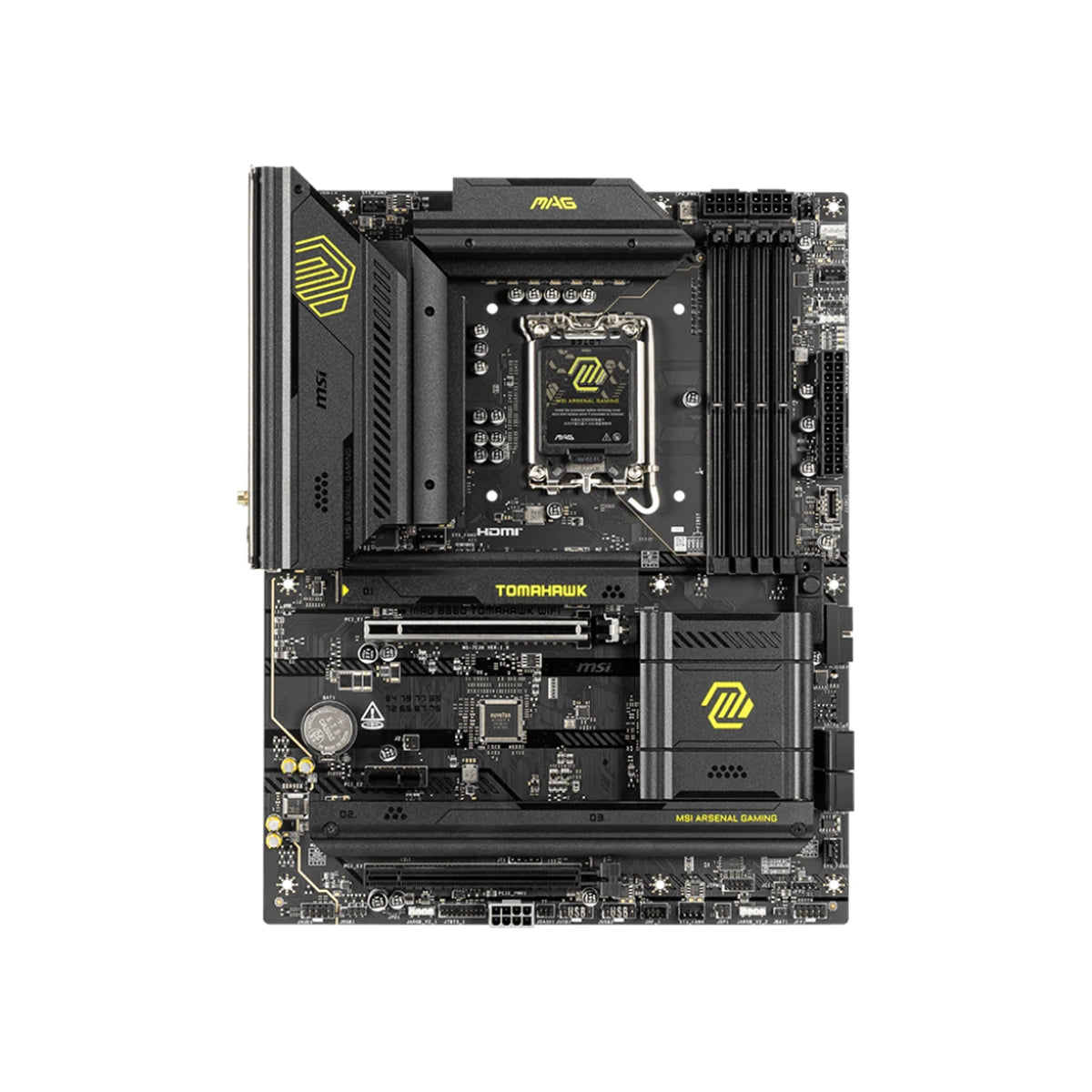

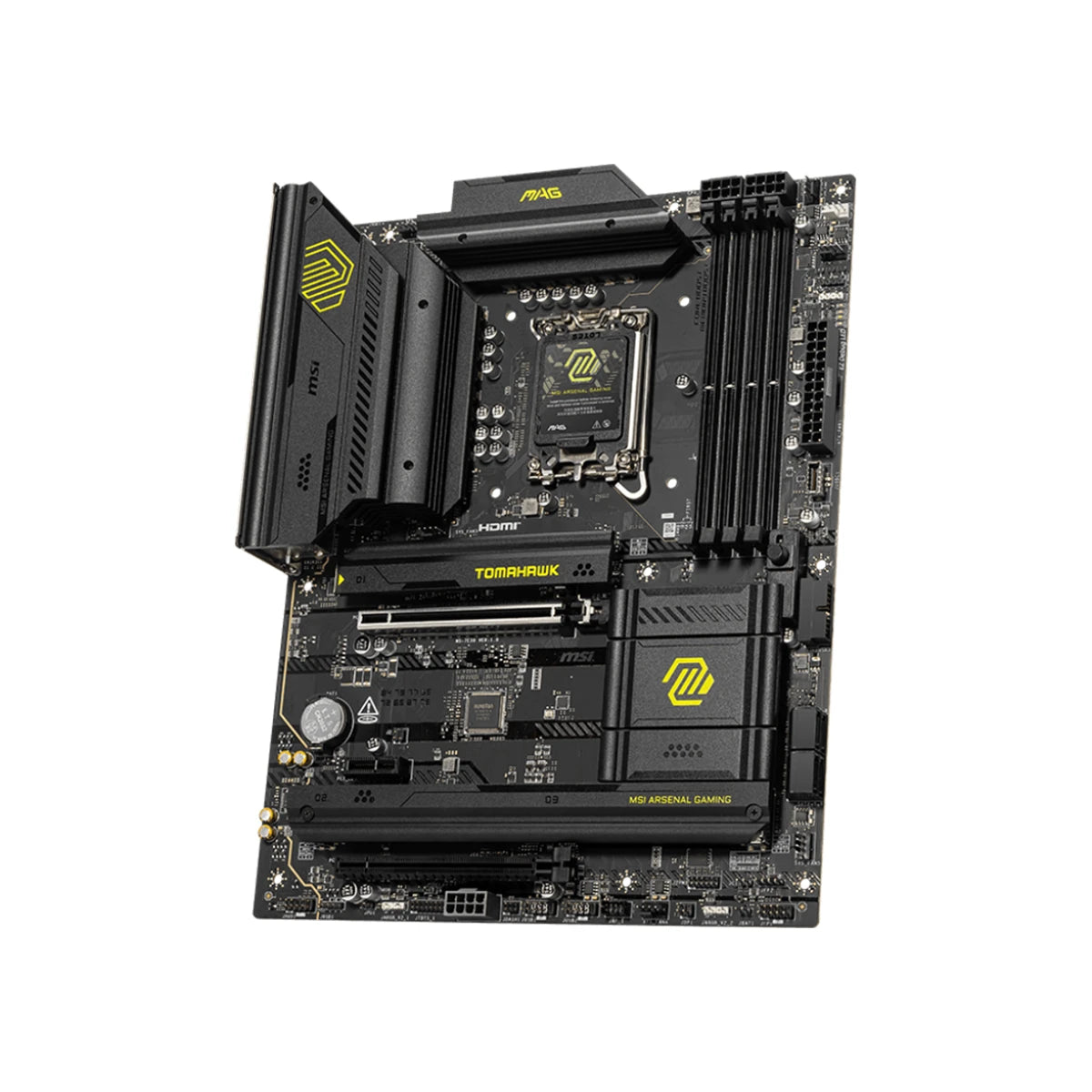

MSI MAG B860 Tomahawk WiFi LGA 1851 ATX Motherboard
MSI MAG B860 Tomahawk WiFi LGA 1851 ATX Motherboard is backordered and will ship as soon as it is back in stock.
*GST & Offers are Calculated at Checkout!
Couldn't load pickup availability
-
Brand
-
MSI MAG B860 Tomahawk WiFi
Introducing the MSI MAG B860 Tomahawk WiFi—a feature-rich ATX motherboard designed for gamers and PC enthusiasts seeking top-tier performance and advanced connectivity. Built on the Intel B860 chipset, it supports Intel® Core™ Ultra Processors (Series 2) with the LGA 1851 socket, delivering exceptional power and features for demanding applications.
🧠 Powerful Performance & Memory Support
- Supports Intel® Core™ Ultra Processors (Series 2): With the LGA 1851 socket, ensuring compatibility with the latest CPUs.
- 12+1+1+1 Duet Rail Power System: With 60A Smart Power Stages, providing stable and efficient power delivery for optimal performance.
- DDR5 Memory Support: Accommodates up to 256GB of DDR5 memory, with speeds reaching up to 9200+ MT/s (OC), delivering lightning-fast data processing capabilities.
⚡ Advanced Connectivity
- Wi-Fi 7 & Bluetooth® 5.4: Offers ultra-fast wireless connections with speeds up to 5.8Gbps, ensuring seamless online experiences.
- Intel® Killer™ 5G LAN: Provides high-speed wired networking options for low-latency gaming and data transfers.
- Thunderbolt™ 4 Port: Delivers up to 40Gbps data transfer speeds, supporting up to 8K displays, and offering 15W power delivery.
💾 Versatile Storage Options
- Three M.2 Slots: 1x PCIe 5.0 x4 (CPU), 2x PCIe 4.0 x4 (Chipset)
- Four SATA 6Gb/s Ports: Provides additional storage options for HDDs and SSDs.
- RAID Support: RAID 0, 1, 5, 10 for SATA devices; RAID 0, 1, 5 for M.2 NVMe devices.
❄️ Efficient Thermal Management
- Extended Heatsink Design: Ensures optimal cooling for VRMs and other critical components.
- M.2 Shield Frozr II: Provides thermal protection for M.2 SSDs, maintaining performance under heavy workload.
- 6-Layer Server Grade PCB: With 2oz thickened copper, enhancing durability and heat dissipation.
🛠️ EZ DIY Features
- EZ PCIe Release & EZ M.2 Clip II: Facilitate easy installation and removal of components, streamlining the building process.

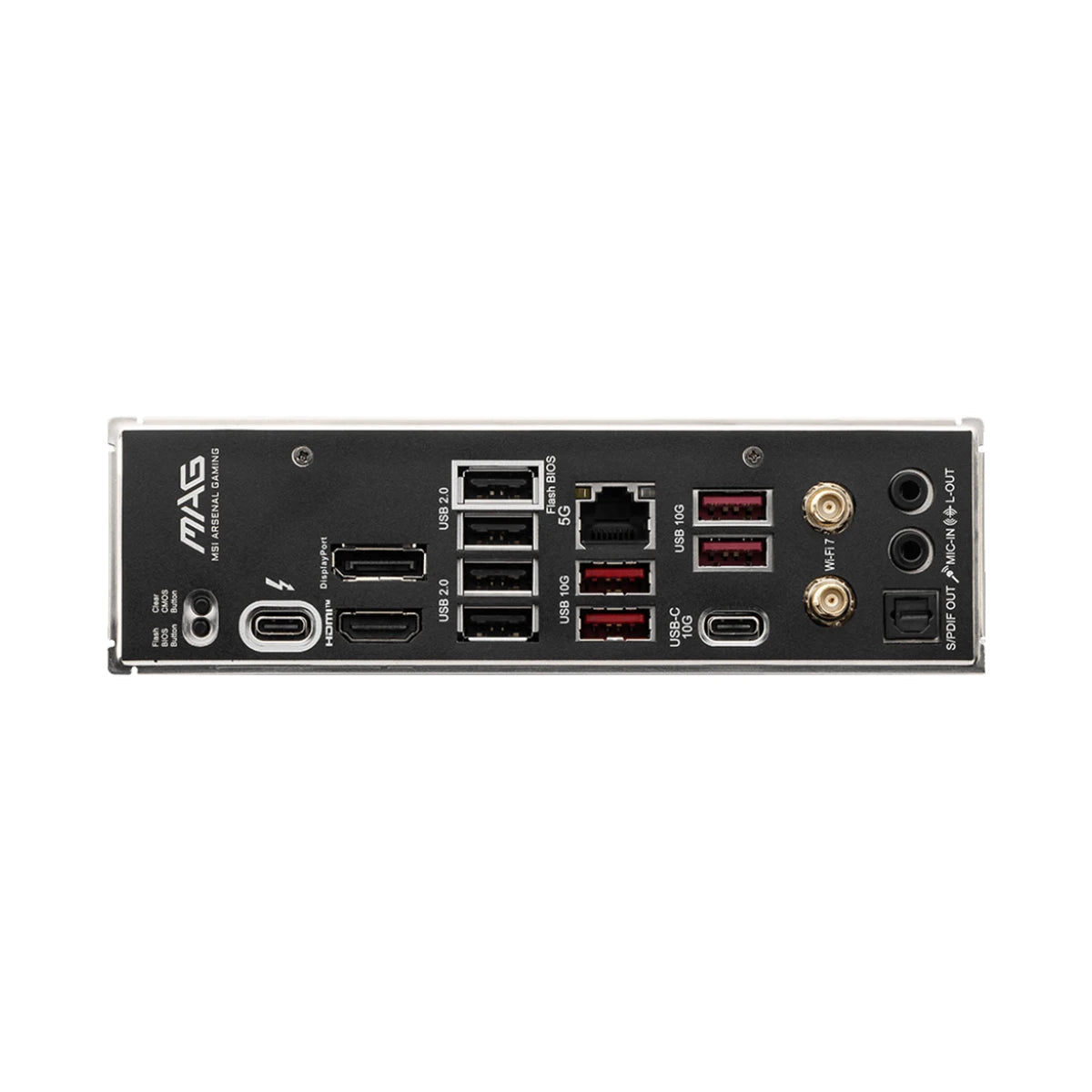

- Pre-Installed I/O Shield: Offers a streamlined and hassle-free installation experience.
- Flash BIOS Button & Clear CMOS Button: Provide quick access to system functions, improving user convenience.
🎨 Sleek and Functional Design
- ATX Form Factor: Provides ample space for components while maintaining compatibility with a wide range of cases.
- Steel Armor II: Reinforces PCIe slots to support heavy graphics cards and prevent bending.
- Audio Boost: Delivers high-quality sound for an immersive gaming experience.
The MSI MAG B860 Tomahawk WiFi motherboard stands as a testament to MSI's commitment to excellence, offering a feature-rich platform that caters to the needs of gamers and PC enthusiasts alike. With its advanced power delivery, next-gen connectivity, and innovative design elements, it's the ultimate choice for building a high-performance PC.
