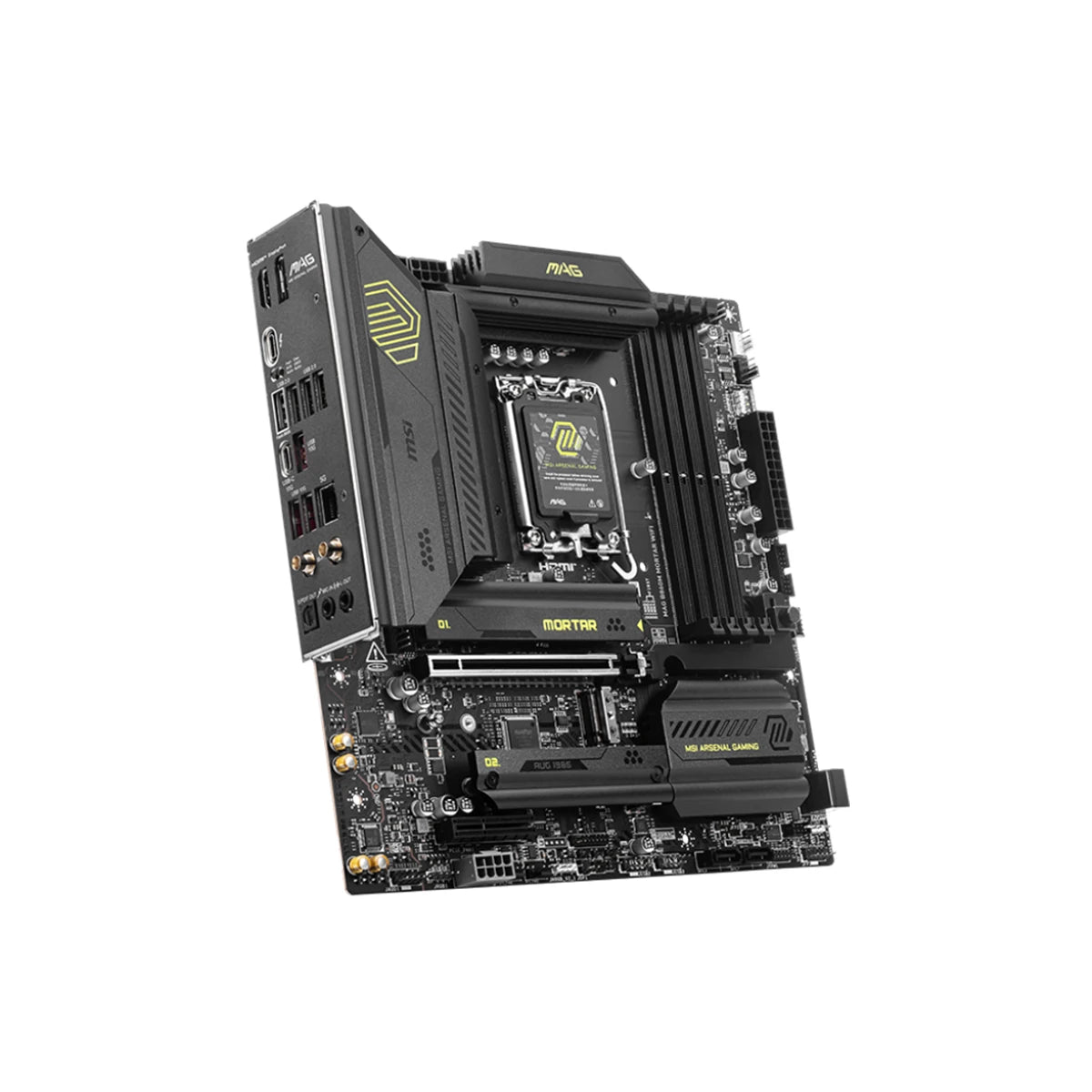

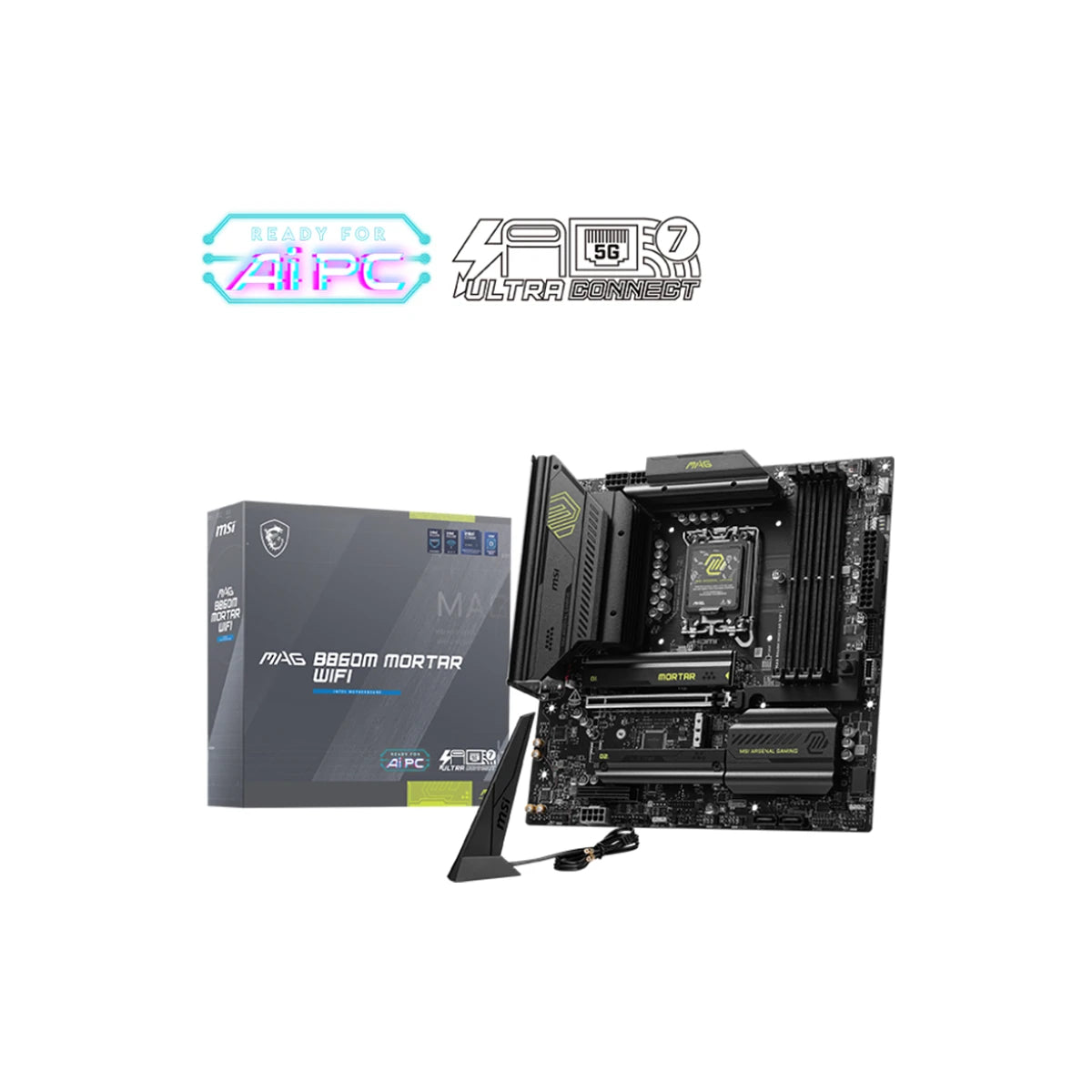

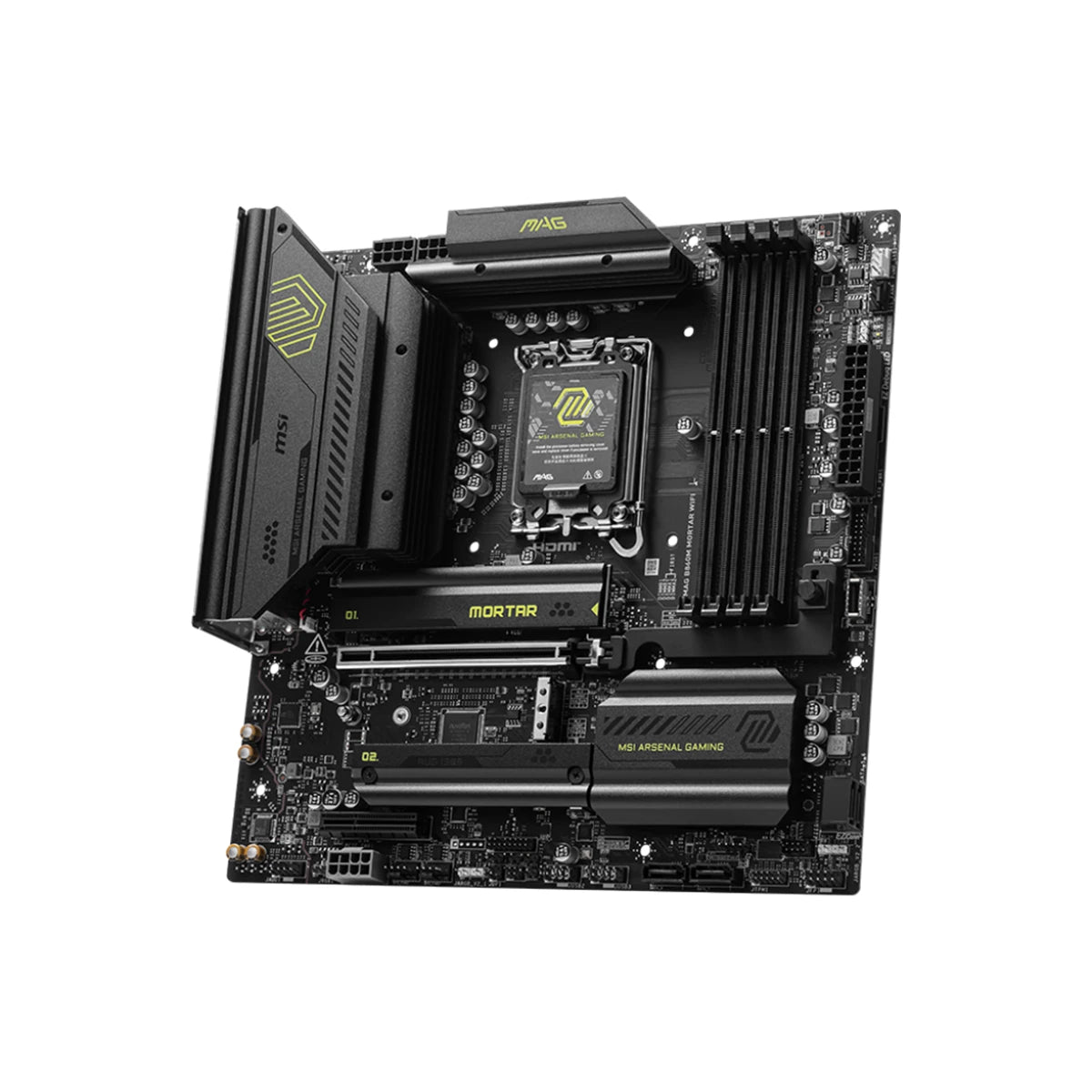

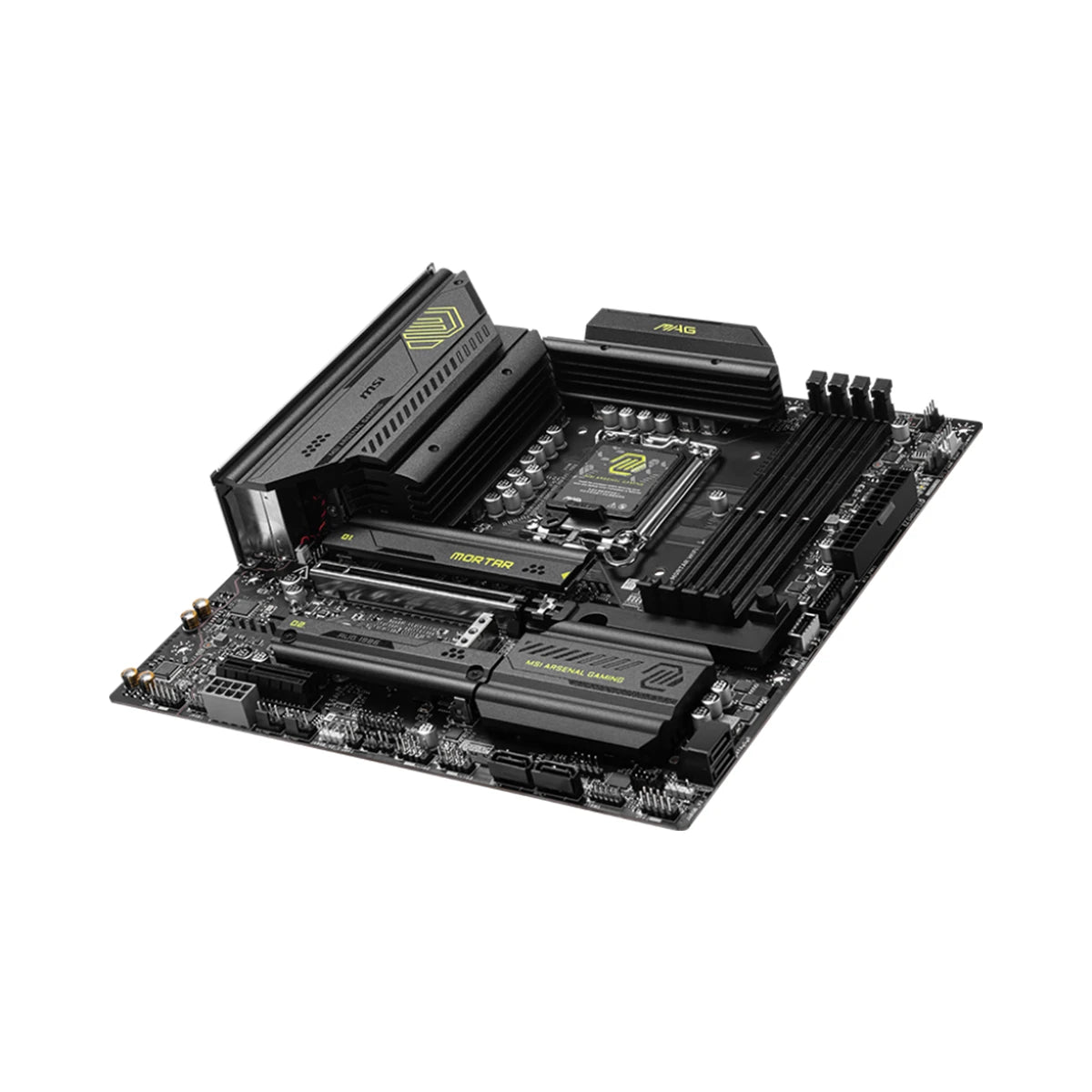

MSI MAG B860M Mortar WiFi LGA 1851 mATX Motherboard
MSI MAG B860M Mortar WiFi LGA 1851 mATX Motherboard is backordered and will ship as soon as it is back in stock.
*GST & Offers are Calculated at Checkout!
Couldn't load pickup availability
-
Brand
-
MSI MAG B860M MORTAR WIFI
Introducing the MSI MAG B860M MORTAR WIFI—a robust Micro-ATX motherboard engineered for gamers and PC enthusiasts seeking top-tier performance and advanced connectivity. Built on the Intel B860 chipset, it supports Intel® Core™ Ultra Processors (Series 2) with the LGA 1851 socket, delivering exceptional power and features for demanding applications.
🧠 Powerful Performance & Memory Support
- Supports Intel® Core™ Ultra Processors (Series 2): With the LGA 1851 socket, ensuring compatibility with the latest CPUs.
- 12+1+1+1 Duet Rail Power System: With 60A DrMOS, providing stable and efficient power delivery for optimal performance.
- DDR5 Memory Support: Accommodates up to 256GB of DDR5 memory, with speeds reaching up to 9200+ MT/s (OC), delivering lightning-fast data processing capabilities.
⚡ Advanced Connectivity
- Wi-Fi 7 & Bluetooth® 5.4: Offers ultra-fast wireless connections with speeds up to 5.8Gbps, ensuring seamless online experiences.
- 5G LAN: Provides high-speed wired networking options for low-latency gaming and data transfers.
- Thunderbolt™ 4 Port: Delivers up to 40Gbps data transfer speeds, supporting up to 8K displays, and offering 15W power delivery.
💾 Versatile Storage Options
- Three M.2 Slots: 1x PCIe 5.0 x4 (CPU), 2x PCIe 4.0 x4 (Chipset)
- Four SATA 6Gb/s Ports: Provides additional storage options for HDDs and SSDs.
- RAID Support: RAID 0, 1, 5, 10 for SATA devices; RAID 0, 1, 5 for M.2 NVMe devices.
❄️ Efficient Thermal Management
- Extended Heatsink Design: Ensures optimal cooling for VRMs and other critical components.
- M.2 Shield Frozr II: Provides thermal protection for M.2 SSDs, maintaining performance under heavy workload.
- 6-Layer Server Grade PCB: With 2oz thickened copper, enhancing durability and heat dissipation.
🛠️ EZ DIY Features
- Pre-Installed I/O Shield: Offers a streamlined and hassle-free installation experience.
- EZ M.2 Shield Frozr II: Tool-free design for easy installation and improved thermal performance of M.2 SSDs.
- EZ PCIe Release: An easy-to-access physical button release mechanism that can help remove any PCIe card with a single tap.
- Flash BIOS Button & Clear CMOS Button: Facilitates easy BIOS updates and resets without the need for a CPU or memory installed.
🎨 Sleek and Functional Design
- Micro-ATX Form Factor: Provides ample space for components while maintaining compatibility with a wide range of cases.
- Military-Inspired Aesthetics: Features a robust design with metallic-like hardness, ensuring stability for all critical gaming components.
- Audio Boost: Delivers high-quality sound for an immersive gaming experience.
The MSI MAG B860M MORTAR WIFI motherboard stands as a testament to MSI's commitment to excellence, offering a feature-rich platform that caters to the needs of gamers and PC enthusiasts alike. With its advanced power delivery, next-gen connectivity, and innovative design elements, it's the ultimate choice for building a high-performance PC.
