Product Code: MAG-Z790-TOMAHAWK-MAX-WIFI

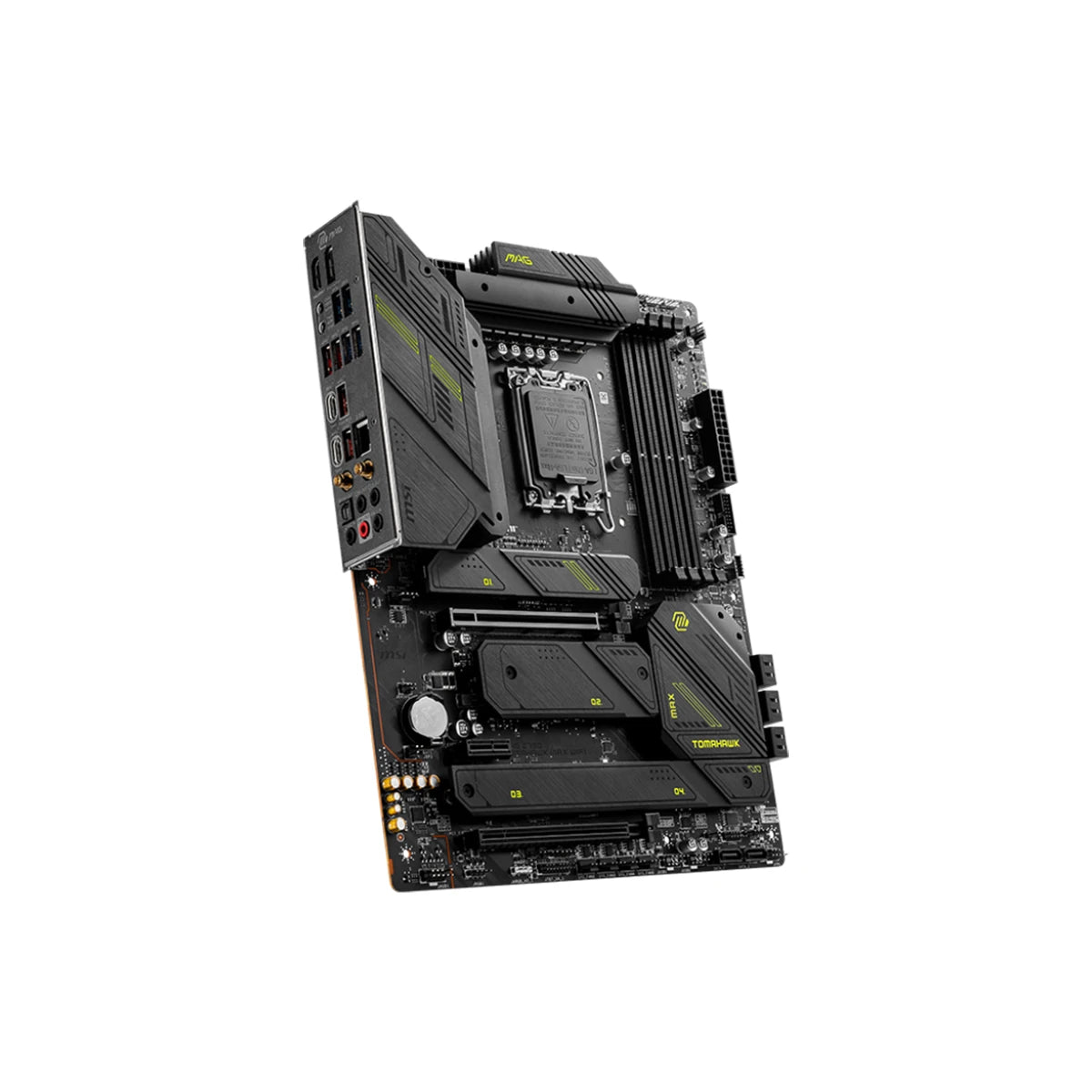

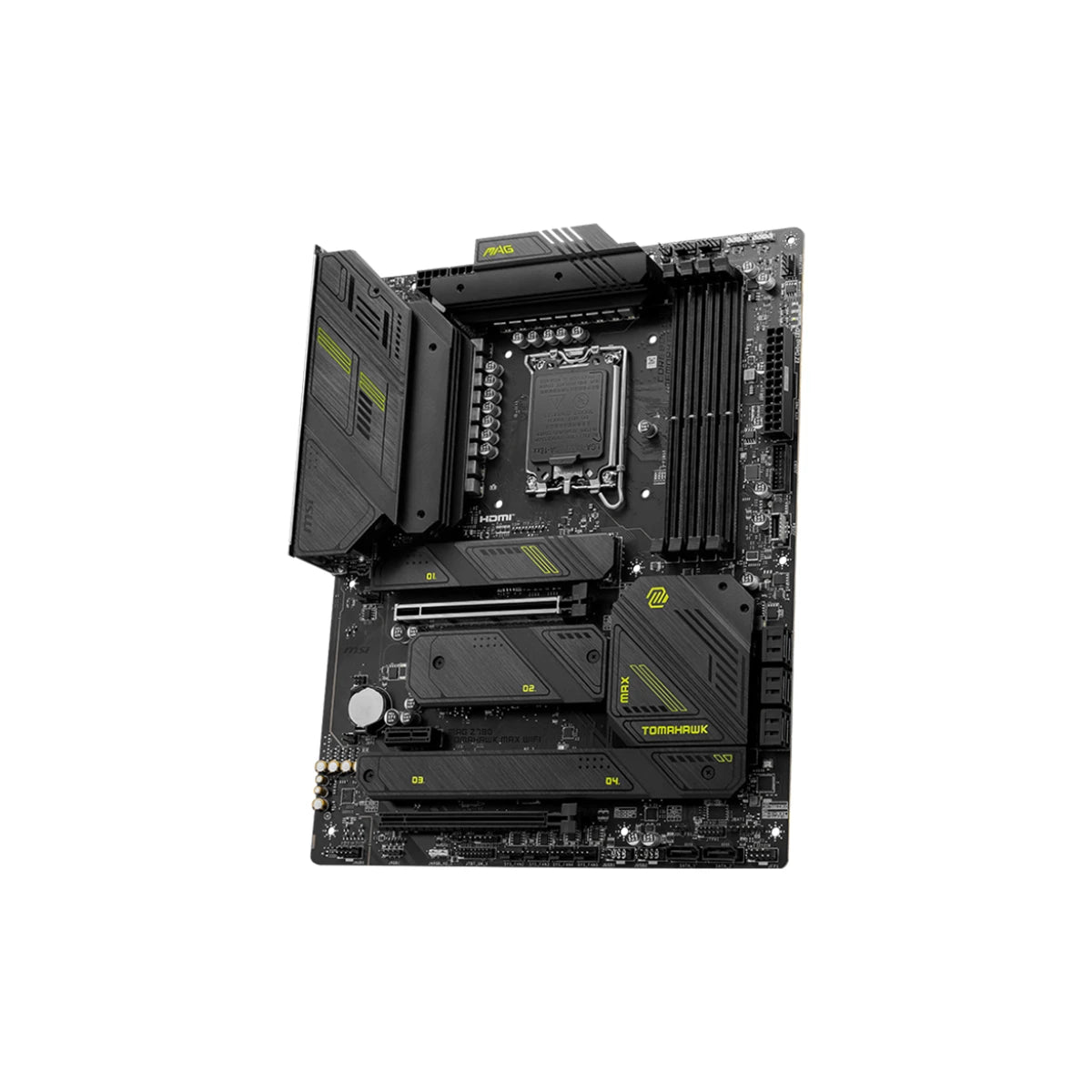

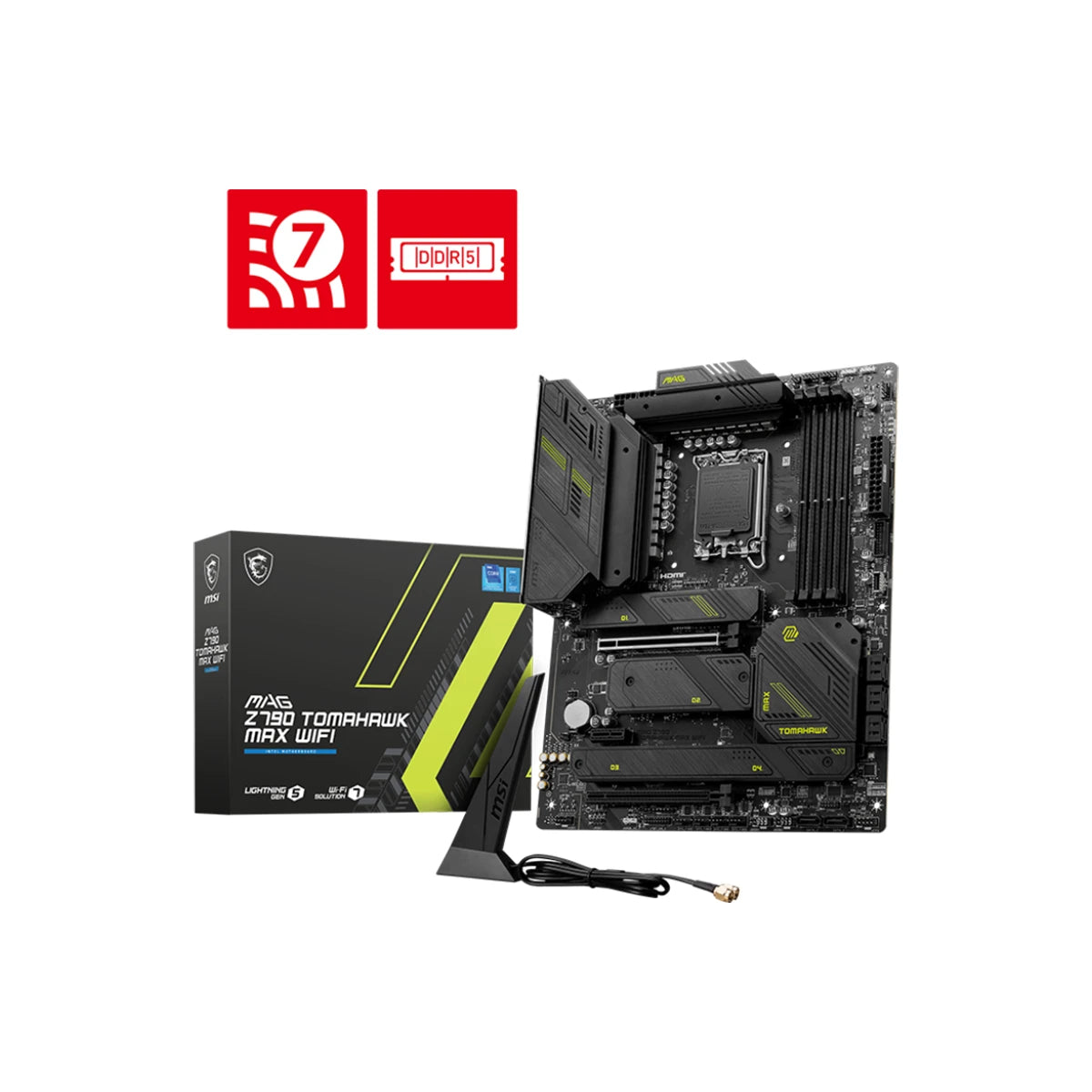

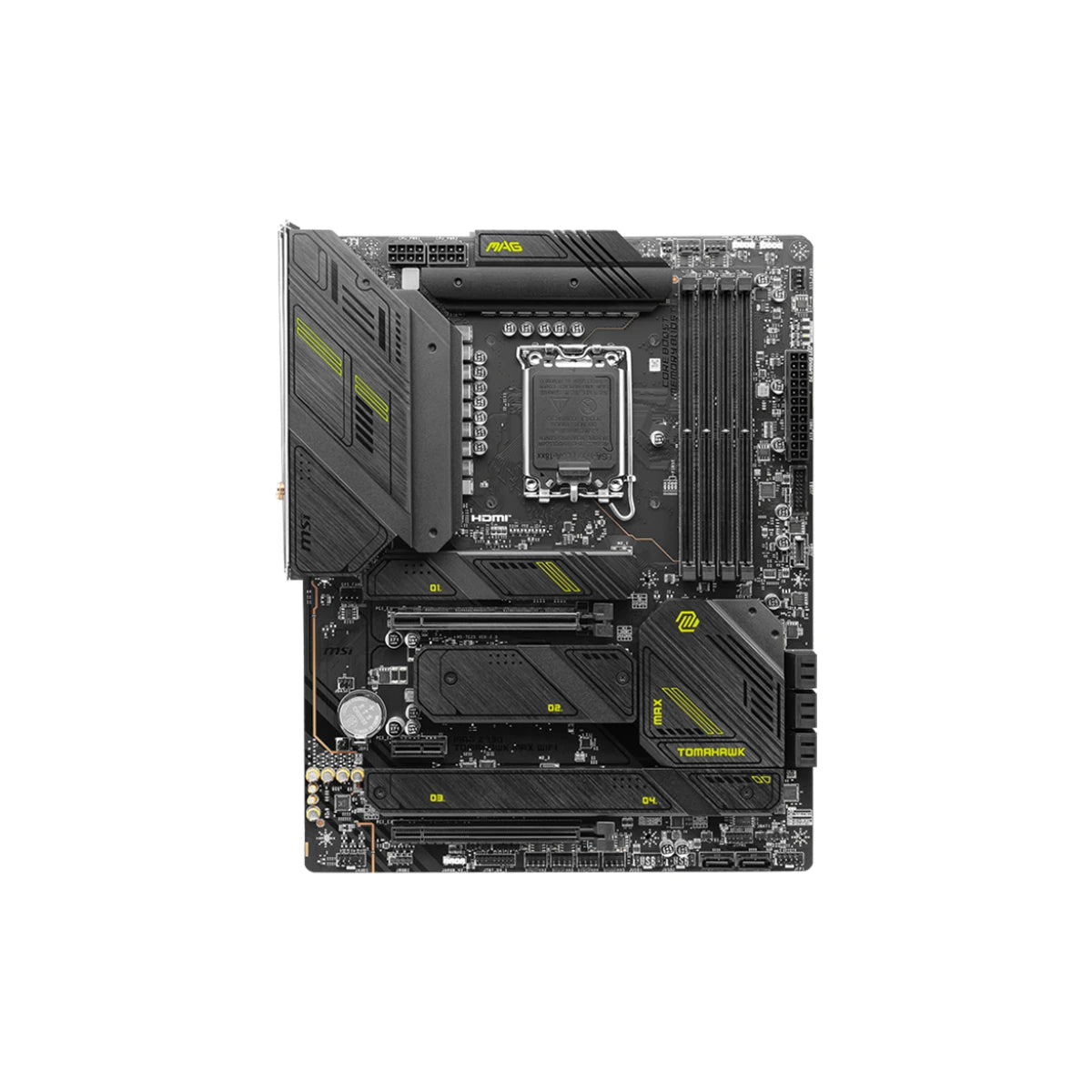

MSI MAG Z790 Tomahawk MAX WiFi DDR5 LGA 1700 ATX Motherboard

Rs. 68,000.00 Rs. 34,222.00

*GST & Offers are Calculated at Checkout!
Free Shipping
Verified by Sentinel
7-Day Return
Verified by Sentinel
Secure Checkout
Verified by Sentinel
  • Brand
    MSI
  • Color
    • Black
  • PCB Info
    ATX, 243.84mmx304.8mm

    Chipset
    INTEL Z790

    CPU
    Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA 1700

    Memory
    4x DDR5 UDIMM, Maximum Memory Capacity 256GB, up to 7800+(OC)

    Onboard Graphics
    1x HDMI™ 2.1, maximum resolution of 4K 60Hz, 1x DisplayPort 1.4, maximum resolution of 8K 60Hz

    PCIe Slot
    2x PCI-E x16 slot, 1x PCI-E x1 slot

    Audio
    Realtek® ALC4080 Codec, 7.1-Channel USB High Performance Audio, Supports up to 32-Bit/384 kHz playback on front panel

    Storage Slot
    4x M.2, 8x SATA 6G
    *PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_1 slot.
    *SATA_1 & SATA_2 will be unavailable when installing M.2 SATA SSD in the M2_3 slot.

    RAID
    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
    *SATA_A1_A2 do not support RAID function.

    USB
    4x USB 2.0 (Front), 4x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front), 4x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Rear), 1x USB 10Gbps Type C (Front), 1x USB 20Gbps Type C (Rear)

    LAN
    Intel® 2.5Gbps LAN

    Internal I/O
    1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 6x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Tuning Controller connector (JDASH), 3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector (JRGB), 1x TPM pin header (Support TPM 2.0), 1x USB4 card connector (JTBT_U4_1, supports RTD3), 4x USB 2.0 ports, 2x USB 5Gbps Type A ports, 1x USB 10Gbps Type C port

    Wireless LAN & Bluetooth
    Wi-Fi 7, Bluetooth® 5.4, MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps

    LED Feature
    4x EZ Debug LED

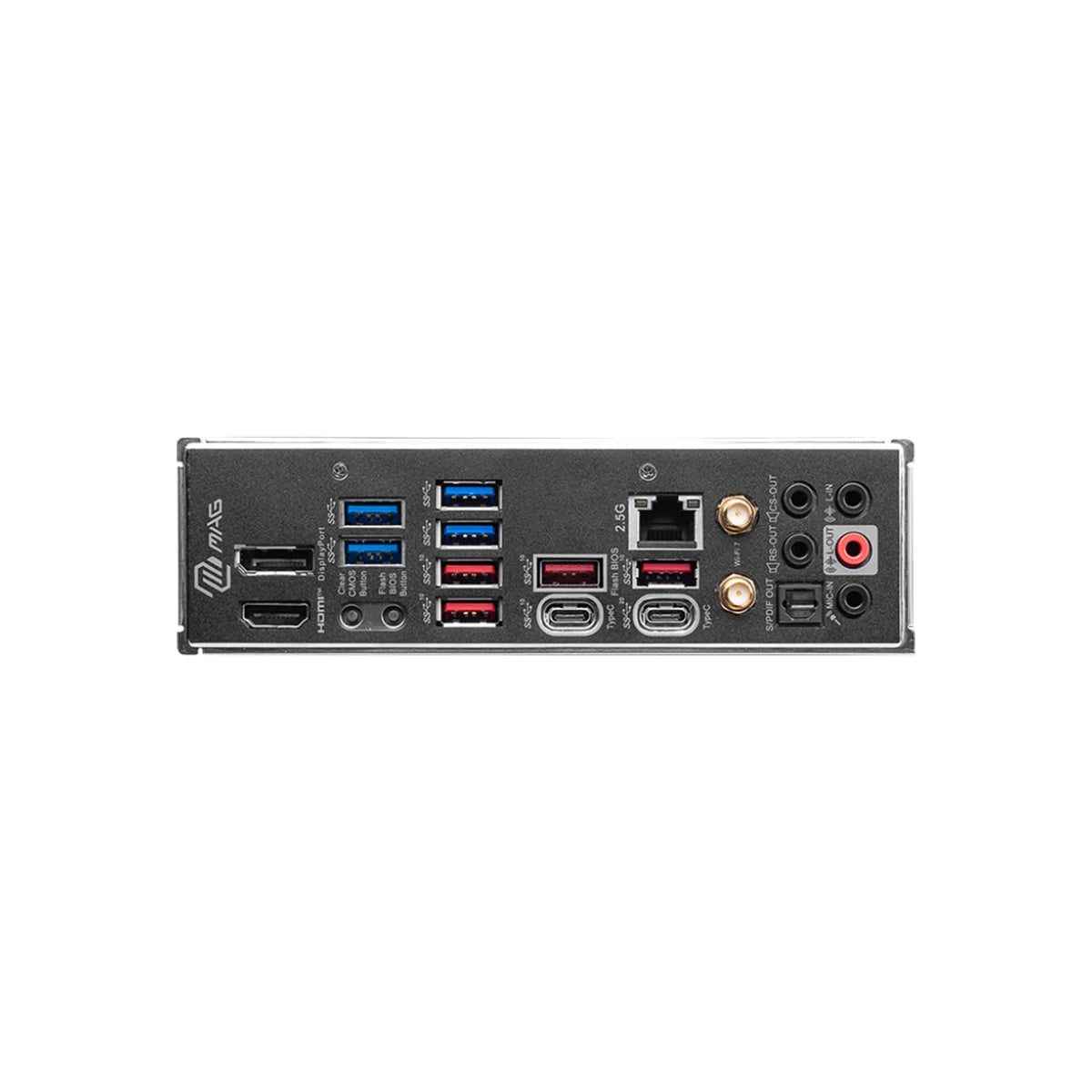

    Back Panel Ports
    DisplayPort, USB 3.2 Gen 1 5Gbps (Type-A), USB 3.2 Gen 2 10Gbps (Type-A), 2.5G LAN, Wi-Fi / Bluetooth, Audio Connectors, HDMI™, Clear CMOS, Flash BIOS, USB 3.2 Gen 2 10Gbps (Type-A), USB 3.2 Gen 2 10Gbps (Type-C), USB 3.2 Gen 2x2 20Gbps (Type-C)

    Operating System
    Support for Windows® 11 64-bit, Windows® 10 64-bit

    Box Content
    Motherboard, Regulatory Notice, 2 x SATA Cable, EZ M.2 Clip, USB Drive, USB Drive, Cable Sticker, Wi-Fi Antenna, Front Panel Connector, Quick Installation Guide

    Warranty
    3 Years
