Brand Logo of MSI
Product Code: MEG-Z790-GODLIKE

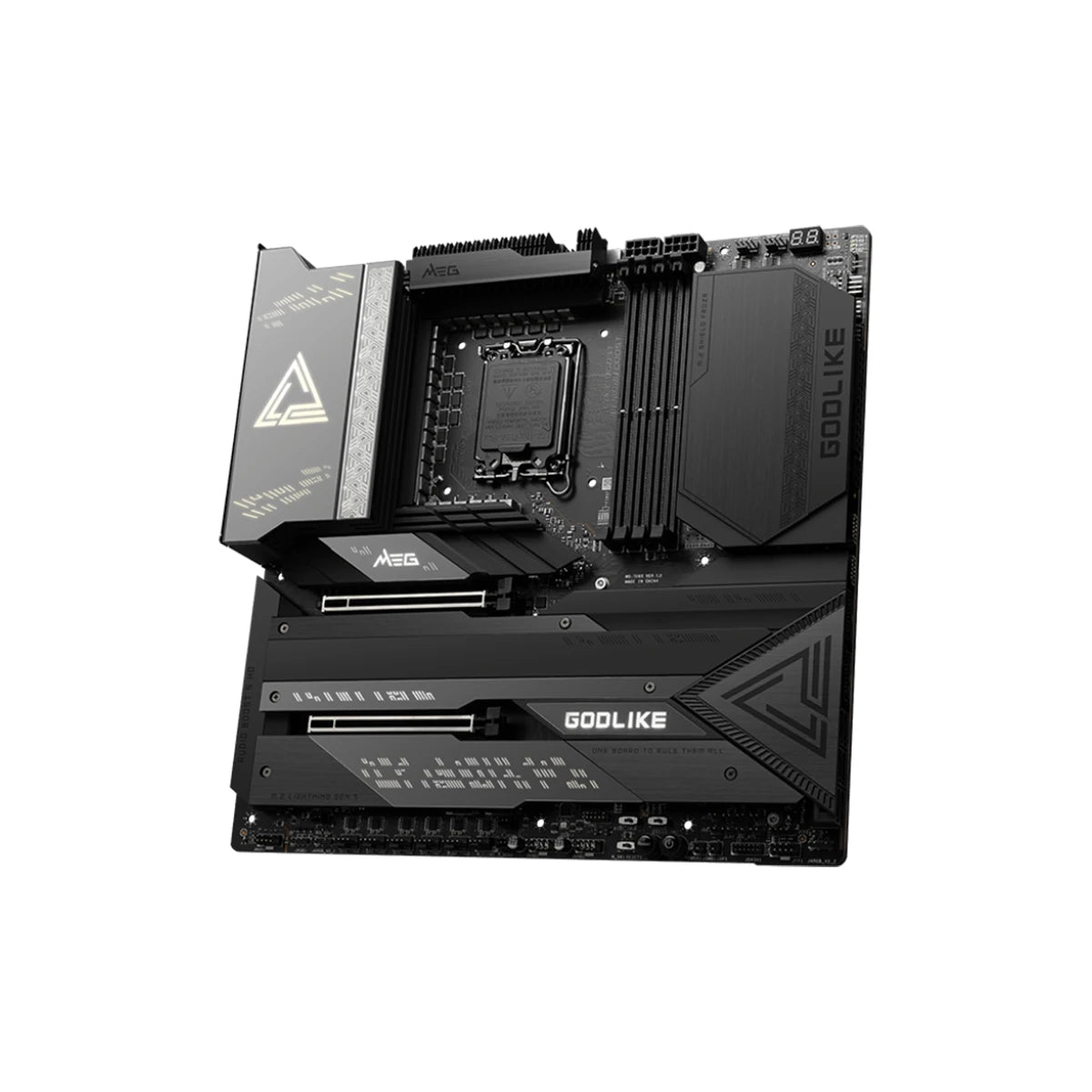

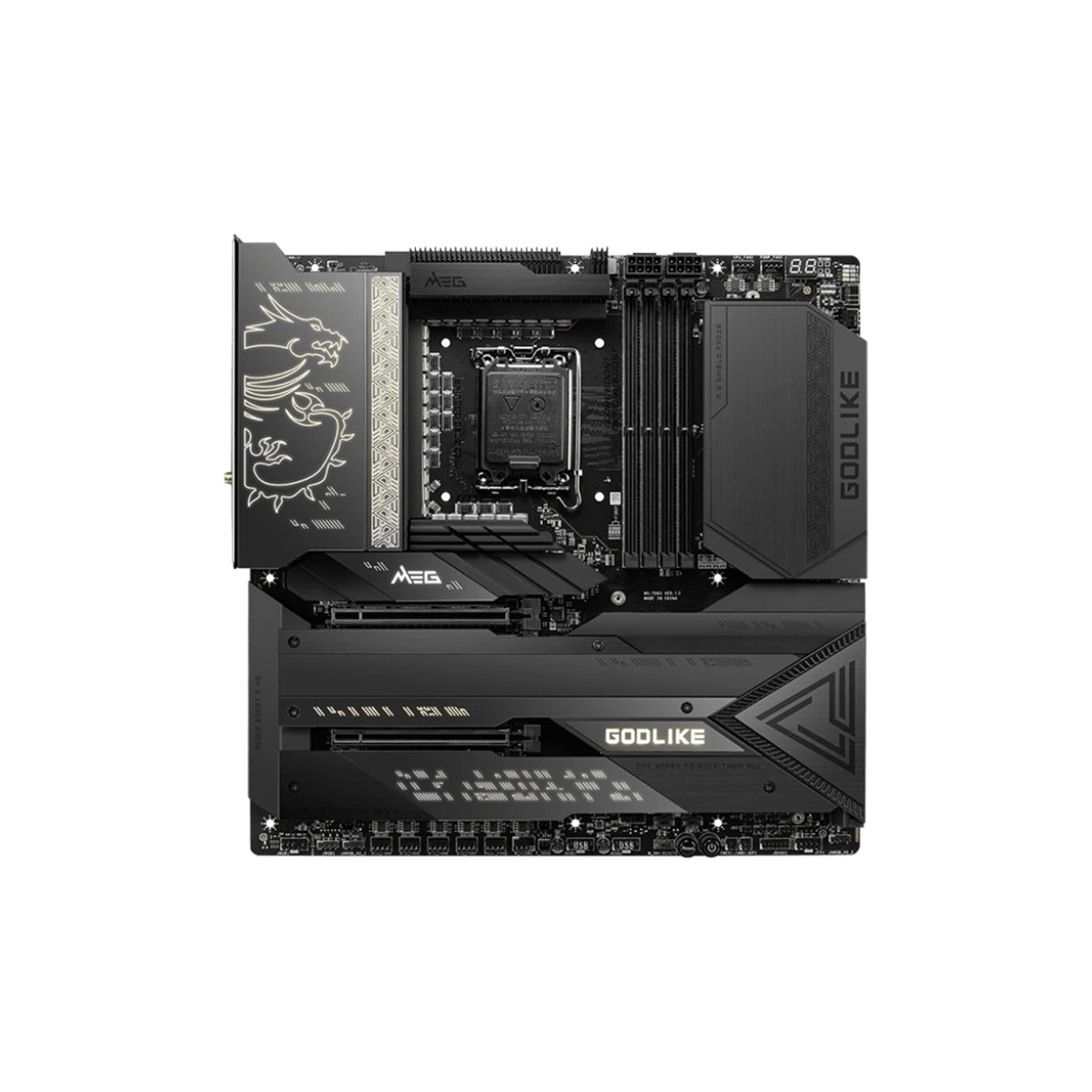

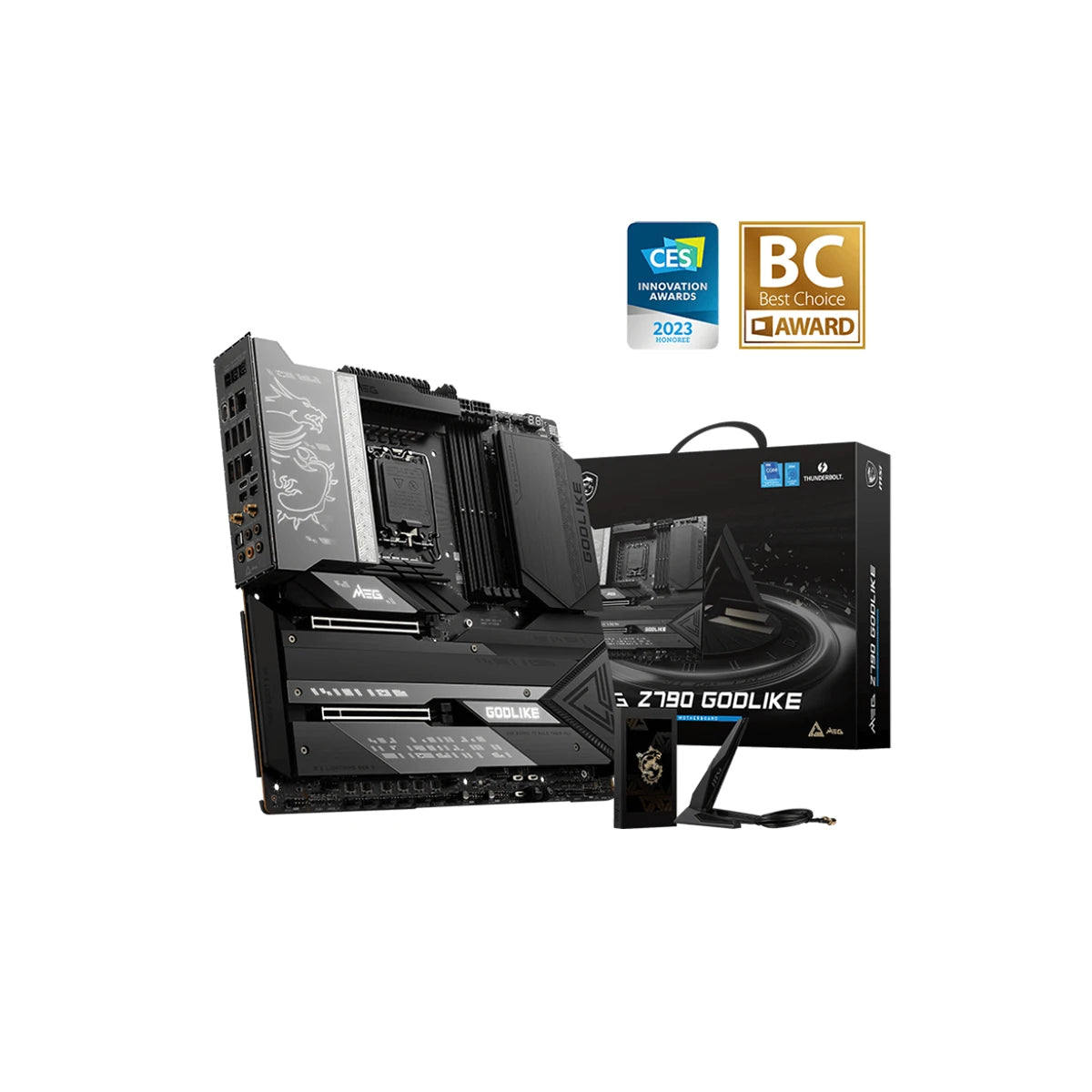

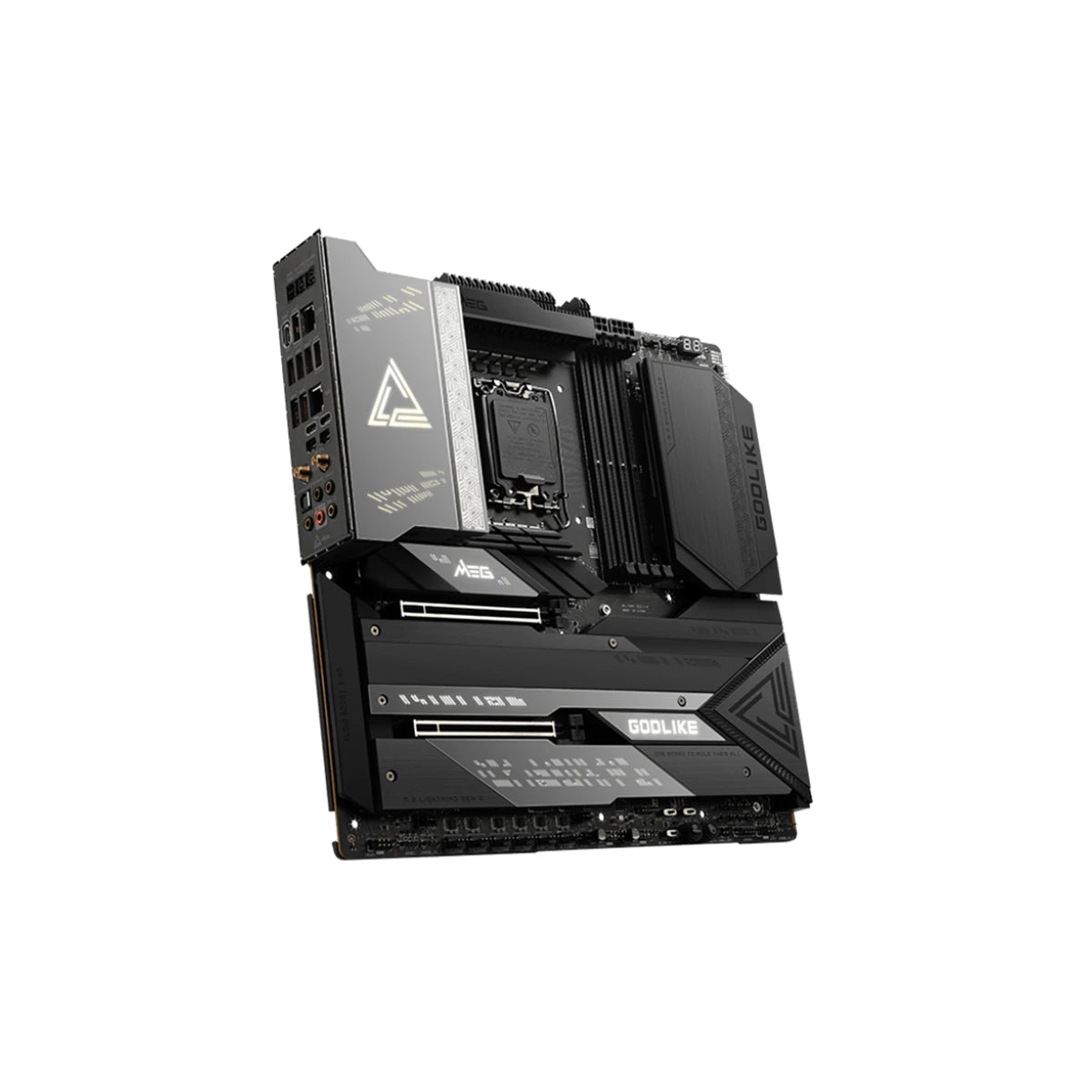

MSI MEG Z790 Godlike WiFi DDR5 LGA 1700 E-ATX Motherboard

Rs. 200,000.00 Rs. 109,999.00

*GST & Offers are Calculated at Checkout!
Free Shipping
Verified by Sentinel
7-Day Return
Verified by Sentinel
Secure Checkout
Verified by Sentinel
  • Brand
    MSI
  • Color
    • Black
  • Chipset
    INTEL Z790
    CPU
    Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors and LGA 1700
    Memory
    4x DDR5 UDIMM, Maximum Memory Capacity 256GB, Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Max. overclocking frequency
    1DPC 1R Max speed up to 7800+ MHz, 1DPC 2R Max speed up to 6600+ MHz, 2DPC 1R Max speed up to 6400+ MHz, 2DPC 2R Max speed up to 5600+ MHz
    Memory Support Type
    Intel® XMP3.0 OC, Dual-Controller Dual-Channel mode, non-ECC, un-buffered memory
    Slot
    2x PCI-E x16 slot, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
    Audio
    Realtek® ALC4082 Codec + ESS ES9280AQ Combo, DAC/HPA, 7.1-Channel USB High Performance Audio, Supports S/PDIF output, Supports up to 32-Bit/384 kHz playback on front panel
    Storage
    7x M.2, M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices, M.2_4 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices, M.2_5 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices, M.2_6 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_7 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, 6x SATA 6G *PCI_E2 slot will be unavailable when installing M.2 SSD in the M2_4 slot. **SATA5~8 will be unavailable when installing M.2 PCIe SSD in the M2_5 slot. ***SATA5~8 will be unavailable when installing M.2 SATA SSD in the M2_5 slot.
    Multi-GPU
    AMD MULTI-GPU Support
    RAID
    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices *SATA_A1_A2 do not support RAID function.
    Onboard Thunderbolt
    Thunderbolt chip JHL8540, Thunderbolt Resource JHL8540, 2x Thunderbolt4 ports (Rear), 2x Thunderbolt4 (USB-C) ports Q’ty, Supports up to 40Gbps transfer rate with Thunderbolt devices, Supports up to 20Gbps transfer rate with USB4 devices, Supports up to 10Gbps transfer rate with USB 3.2 devices, Supports up to 5V/3A,15W power charging, Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices, Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)
    USB
    4x USB 2.0 (Front), 4x USB 5Gbps Type A (Front), 7x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Rear), 2x USB 20Gbps Type C (Front) *To achieve 60W PD fast charging for JUSB6, the PD_PWR1 connector needs to be connected to the power supply unit. **JUSB6 doesn’t support USB 2.0 and older USB devices.
    LAN
    Marvell® AQC113CS-B1-C 10Gbps LAN, Intel® 2.5Gbps LAN
    Internal IO
    1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x Front Type-C Quick Charge Connector(PD_PWR1), 1x CPU Fan, 2x Pump Fan, 7x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Water Flow connector, 1x Slow Mode Booting Jumper(JSLOW), 1x Front Audio (JAUD), 2x Thermal Sensor connectors(T_SEN), 1x Tuning Controller connector(JDASH), 3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), V-check point, 4x USB 2.0 ports, 4x USB 5Gbps Type A ports, 2x USB 20Gbps Type C ports
    Wireless LAN & Bluetooth
    Intel® Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
    LED Feature
    1x EZ LED Control switch, 4x EZ Debug LED, 1x 2-Digit Debug Code LED

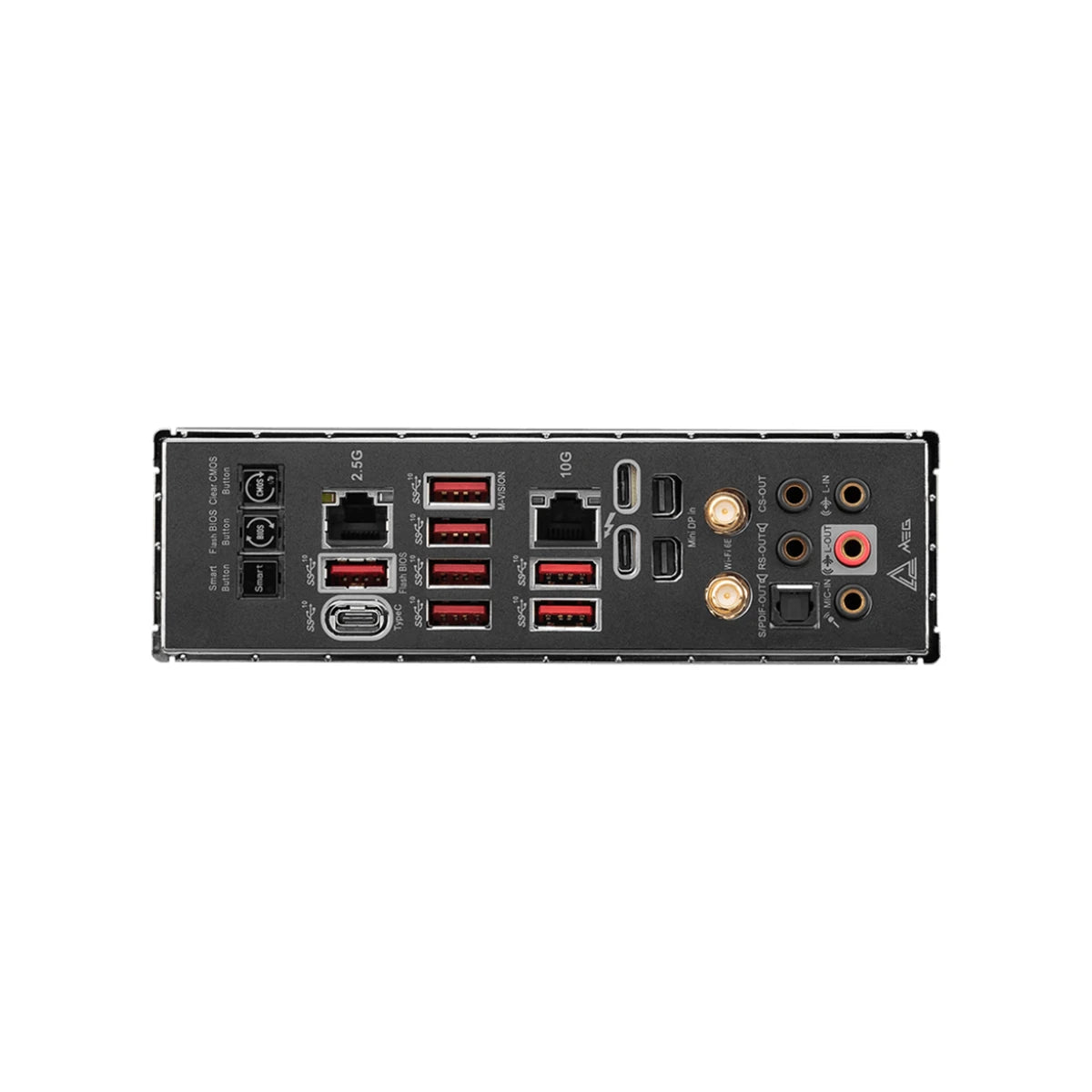

    Back Panel Ports
    Clear CMOS Button, Flash BIOS Button, 2.5G LAN, 10G Super LAN, Thunderbolt 4 40Gbps (Type-C), Wi-Fi / Bluetooth, Audio Connectors, Smart Button, USB 3.2 Gen 2 10Gbps (Type-C), USB 3.2 Gen 2 10Gbps (Type-A), Mini DisplayPort Input (for Thunderbolt passthrough), Optical S/PDIF-Out
    Operating System
    Support for Windows® 11 64-bit, Windows® 10 64-bit
    Box Content
    PCB Info E-ATX, 304.8mmx310mm
