Brand Logo of MSI
Product Code: MEG Z890 ACE

MSI Meg Z890 Ace WiFi DDR5 LGA1851 ATX Motherboard

Rs. 136,000.00 Rs. 68,888.00

*GST & Offers are Calculated at Checkout!
Free Shipping
Verified by Sentinel
7-Day Return
Verified by Sentinel
Secure Checkout
Verified by Sentinel
  • Brand
    MSI
  • Color
    • Black
  • PCB INFO
    ATX, 243.84mmx304.8mm
    Chipset
    INTEL Z890
    CPU Support
    Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851
    Memory
    4x DDR5 UDIMM, Maximum Memory Capacity 256GB, Memory Support up to 9200 - 6400 (OC)
    Onboard Graphics
    1x HDMI™ 2.1 maximum resolution of 4K 60Hz*, 2x Type-C DisplayPort, supporting DisplayPort 2.1 with UHBR20 over USB Type-C maximum resolution of 4K@120Hz / 8K@60Hz*
    PCIe Slot
    3x PCI-E x16 slot (PCI_E1 Gen PCIe 5.0 up to x16 from CPU, PCI_E2 Gen PCIe 5.0 up to x8 from CPU, PCI_E3 Gen PCIe 4.0 up to x4 from Chipset)
    Audio
    Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA, 7.1-Channel USB High-Performance Audio
    Storage Slot
    5x M.2, 4x SATA 6G
    RAID
    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
    USB Ports
    4x USB 2.0 (Front), 4x USB 5Gbps Type A (Front), 11x USB 10Gbps Type A (Rear), 2x USB 10Gbps Type C (Rear), 1x USB 20Gbps Type C (Front)
    LAN
    1x Marvell® AQC113CS 10Gbps LAN
    Internal IO
    1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x Power Connector(PCIE_PWR 8pin), 1x Front Type-C Quick Charge Connector(PD_PWR1), 1x CPU Fan, 2x Combo Fan (Pump_Sys Fan), 5x System Fan, 1x EZ Conn-header (JAF_2), 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Water Flow connector, 1x Slow Mode Booting Jumper(JSLOW), 1x Front Audio (JAUD), 2x Thermal Sensor connectors(T_SEN), 1x Tuning Controller connector(JDASH), 3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), V-check point
    Wireless LAN & Bluetooth
    Intel® Killer™ BE1750x Wi-Fi 7, Bluetooth® 5.4
    LED Feature
    4x EZ Debug LED, 1x EZ Digit Debug LED, 1x EZ LED Control switch

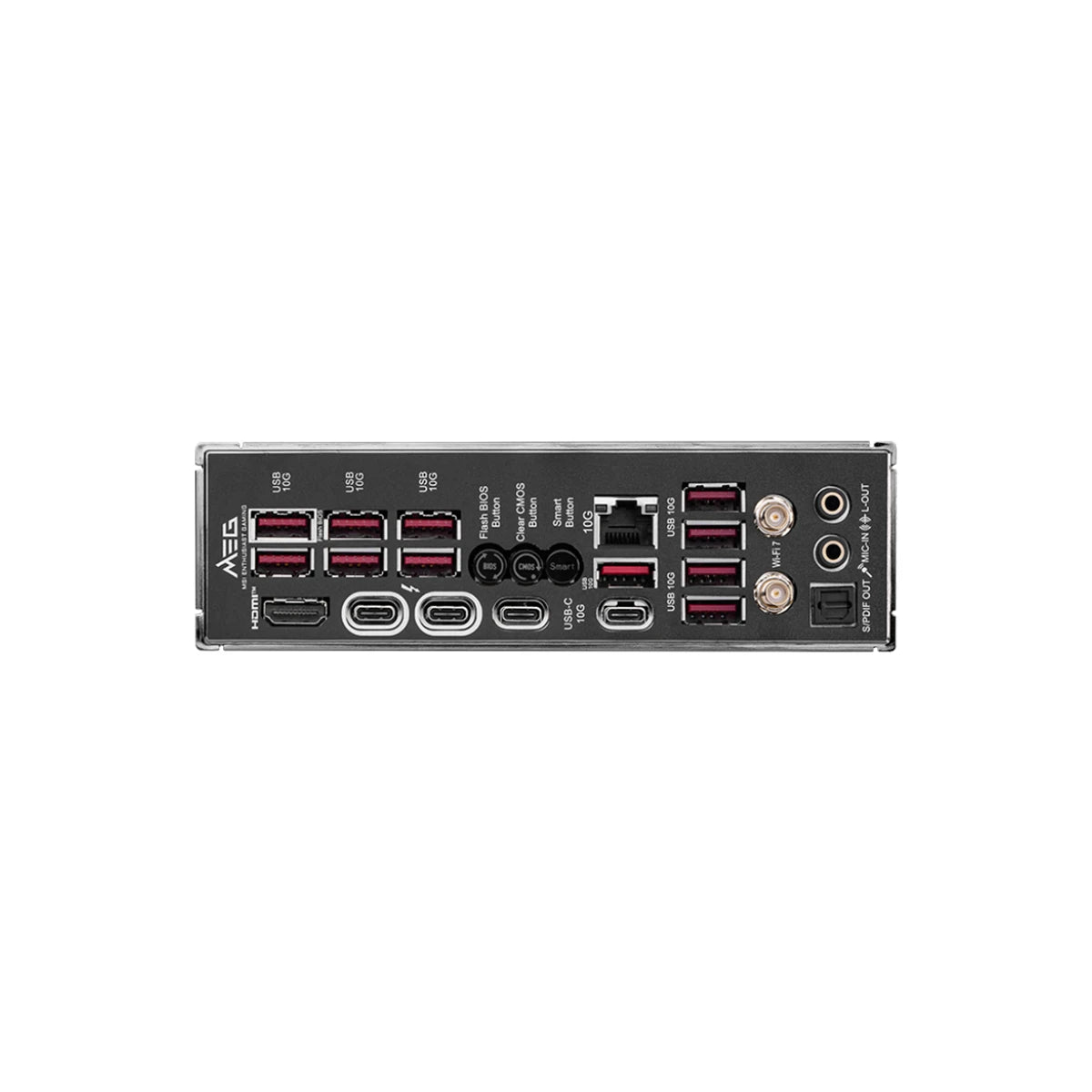

    Back Panel Ports
    USB 10Gbps (Type-A), Flash BIOS Button, Clear CMOS Button, Smart Button, 10G LAN, Wi-Fi/Bluetooth, HD Audio Connectors, HDMI™ 2.1 Port, Thunderbolt™ 4 40Gbps (Type-C), USB 10Gbps (Type-C), USB 10Gbps (Type-A), Optical S/PDIF-Out
    Operating System
    Support for Windows® 11 64-bit
    Box Content
    Motherboard, EZ Wi-Fi Antenna, USB Drive, Cable Sticker, 4x SATA Cables, EZ Front Panel Cable, 1 to 3 EZ Conn-Cable (V2), 1 to 2 RGB Extension Cable, ARGB Extension Cable, 2x Thermistor Cables, EZ M.2 Clip II Remover, EZ M.2 Clips II, M.2 Screw and Standoff Set, Shout Out Flyer, Quick Installation Guide, European Union Regulatory Notice
    Warranty
    3 Years
