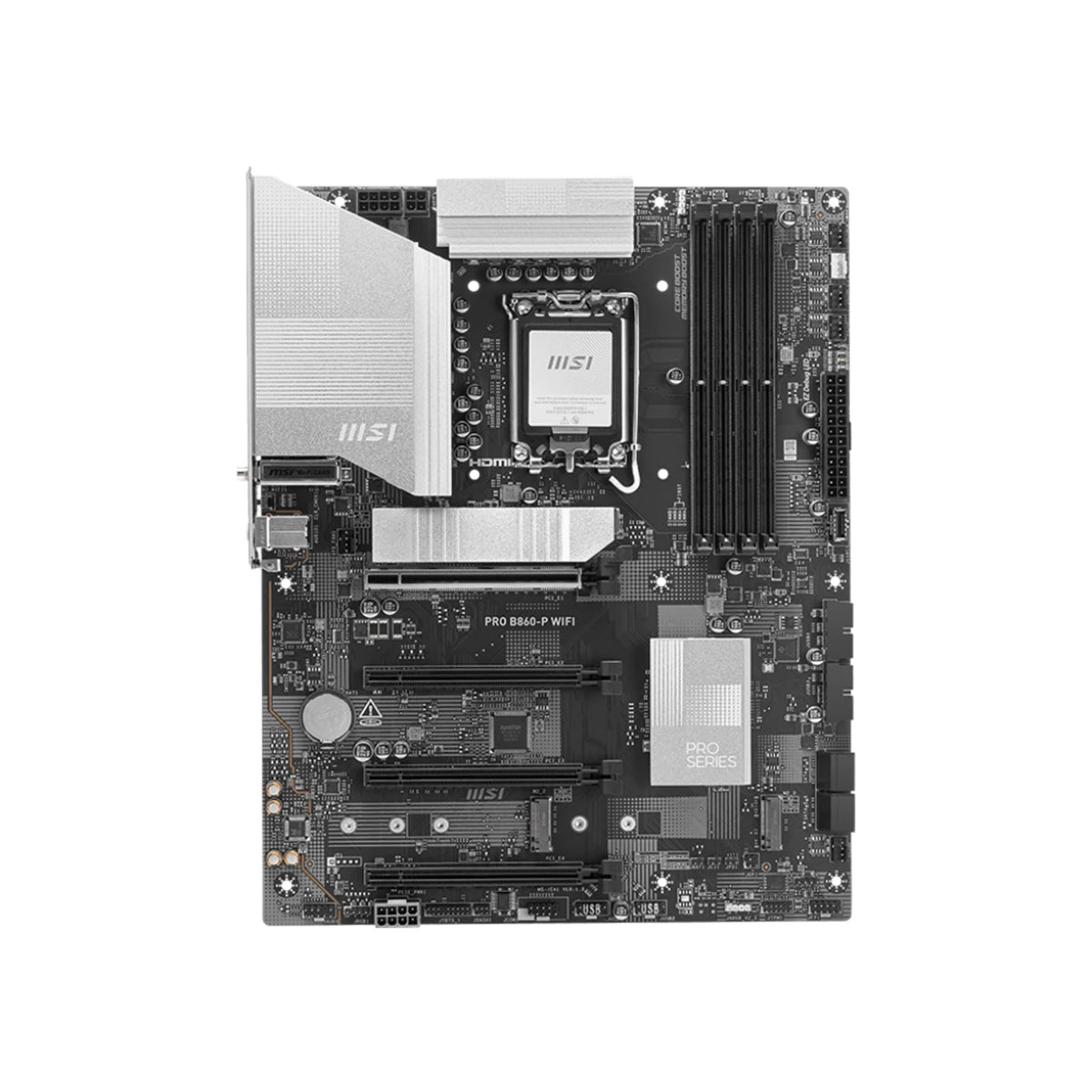

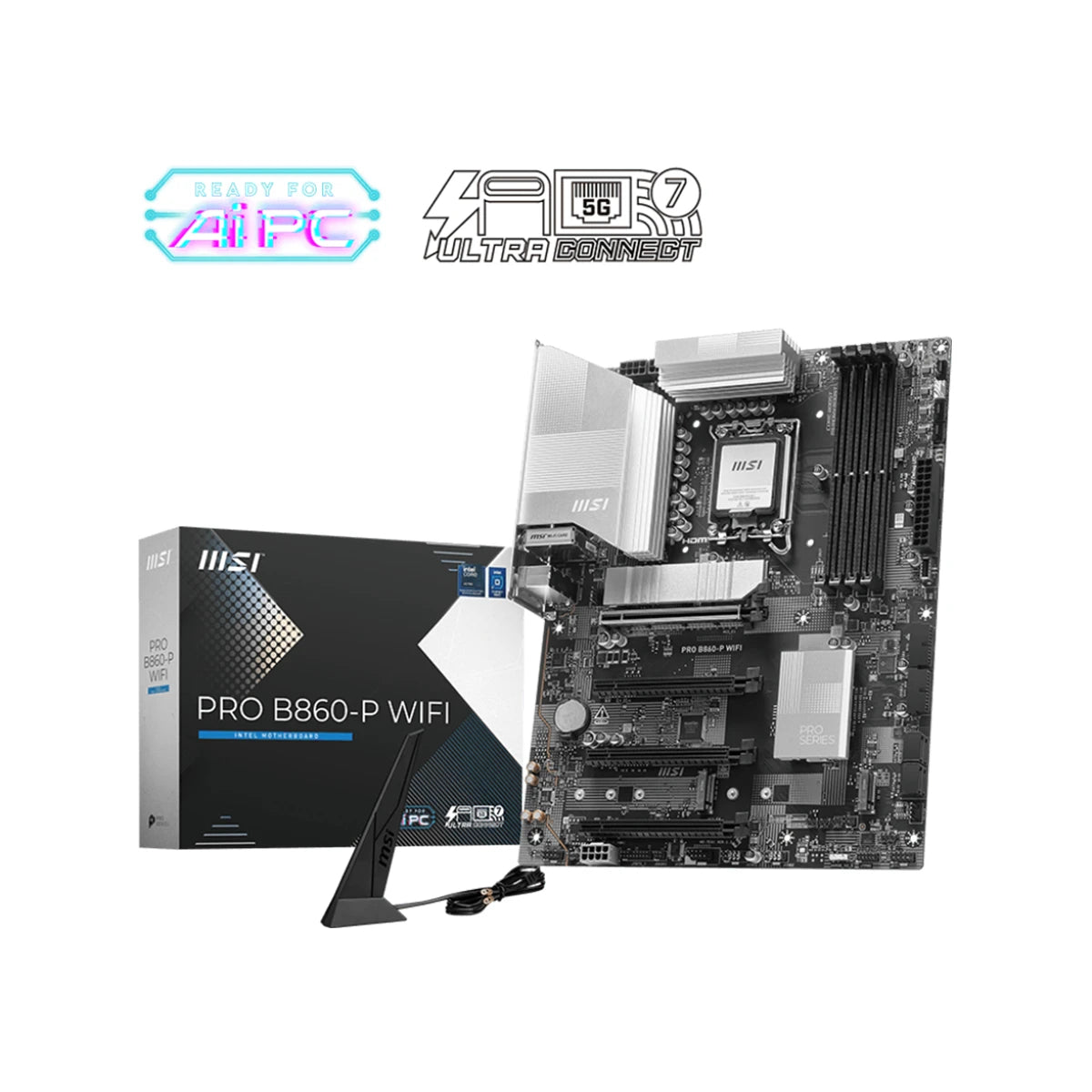

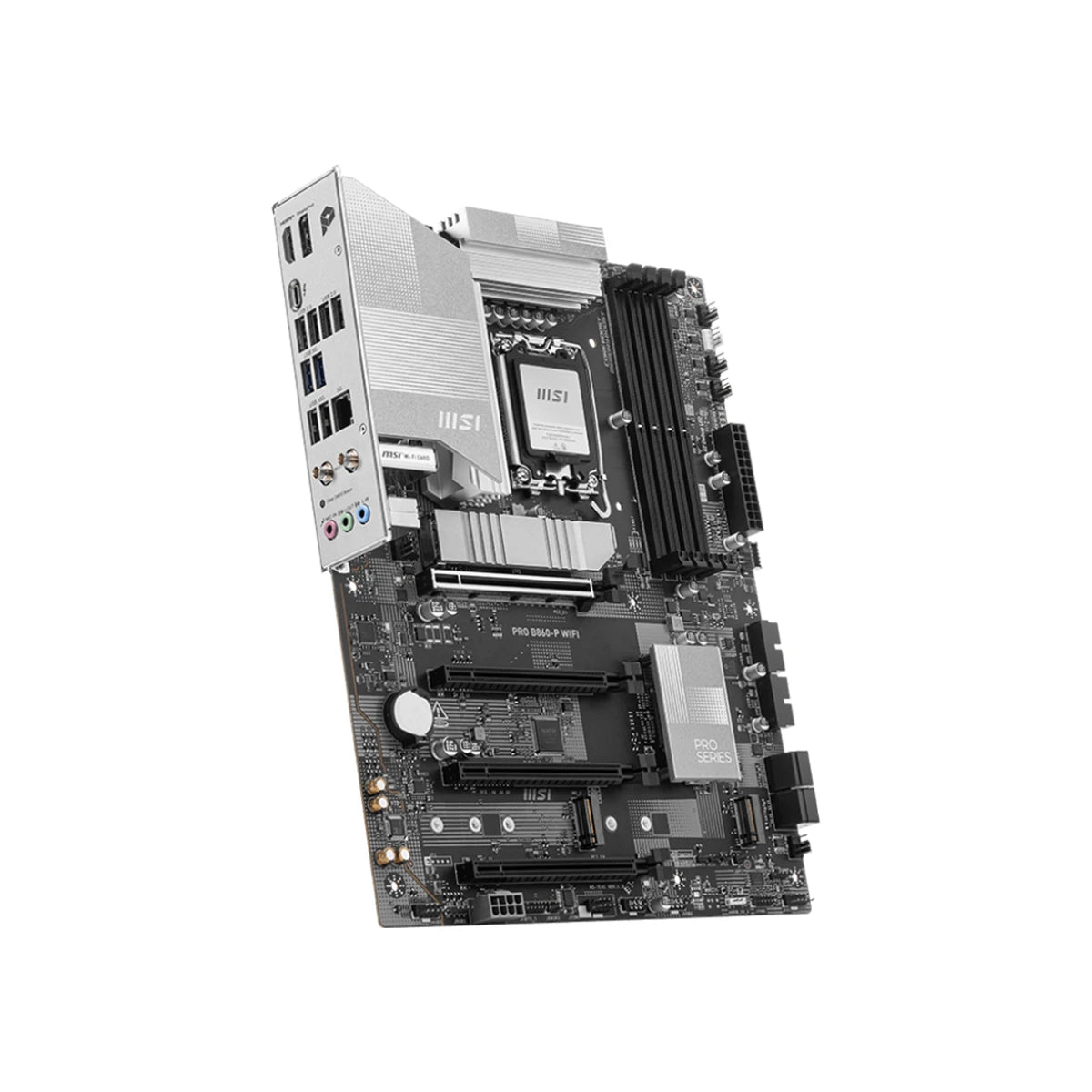

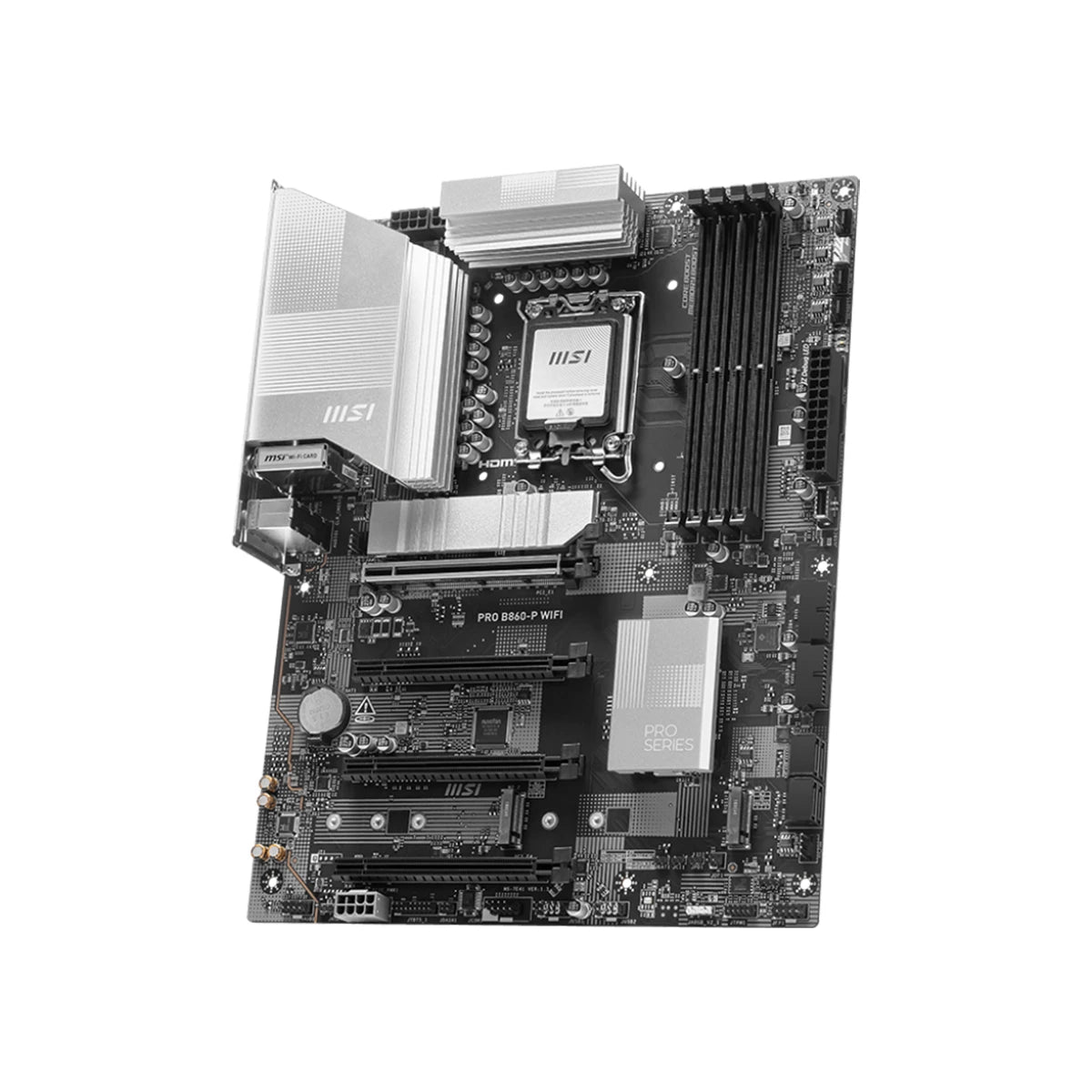

MSI PRO B860-P WIFI LGA 1851 ATX Motherboard
MSI PRO B860-P WIFI LGA 1851 ATX Motherboard is backordered and will ship as soon as it is back in stock.
*GST & Offers are Calculated at Checkout!
Couldn't load pickup availability
-
Brand
-
MSI PRO B860-P WIFI
Introducing the MSI PRO B860-P WIFI—a feature-rich ATX motherboard designed for professionals and creators seeking top-tier performance and advanced connectivity. Built on the Intel B860 chipset, it supports Intel® Core™ Ultra Processors (Series 2) with the LGA 1851 socket, delivering exceptional power and features for demanding applications.
🧠 Powerful Performance & Memory Support
- Supports Intel® Core™ Ultra Processors (Series 2): With the LGA 1851 socket, ensuring compatibility with the latest CPUs.
- 12+1+1+1 Duet Rail Power System: With Digital PWM IC, providing stable and efficient power delivery for optimal performance.
- DDR5 Memory Support: Accommodates up to 256GB of DDR5 memory, with speeds reaching up to 8800+ MT/s (OC), delivering lightning-fast data processing capabilities.
⚡ Advanced Connectivity
- Wi-Fi 7 & Bluetooth® 5.4: Offers ultra-fast wireless connections with speeds up to 5.8Gbps, ensuring seamless online experiences.
- 5G LAN: Provides high-speed wired networking options for low-latency gaming and data transfers.
- Thunderbolt™ 4 Port: Delivers up to 40Gbps data transfer speeds, supporting up to 8K displays, and offering 15W power delivery.
💾 Versatile Storage Options
- Three M.2 Slots: 1x PCIe 5.0 x4 (CPU), 2x PCIe 4.0 x4 (Chipset)
- Four SATA 6Gb/s Ports: Provides additional storage options for HDDs and SSDs.
- RAID Support: RAID 0, 1, 5, 10 for SATA devices; RAID 0, 1, 5 for M.2 NVMe devices.
❄️ Efficient Thermal Management
- Extended Heatsink Design: Ensures optimal cooling for VRMs and other critical components.
- M.2 Shield Frozr II: Provides thermal protection for M.2 SSDs, maintaining performance under heavy workload.
- 6-Layer Server Grade PCB: With 2oz thickened copper, enhancing durability and heat dissipation.
🛠️ EZ DIY Features
- Pre-Installed I/O Shield: Offers a streamlined and hassle-free installation experience.
- EZ M.2 Shield Frozr II: Tool-free design for easy installation and improved thermal performance of M.2 SSDs.
- EZ Antenna: MSI's latest Wi-Fi antenna features a magnetic design, making it easier to adjust the antenna's placement.
🎨 Sleek and Functional Design
- ATX Form Factor: Provides ample space for components while maintaining compatibility with a wide range of cases.
- Silver Color Scheme: Offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds.
- Audio Boost: Delivers high-quality sound for an immersive gaming experience.
The MSI PRO B860-P WIFI motherboard stands as a testament to MSI's commitment to excellence, offering a feature-rich platform that caters to the needs of professionals and creators alike. With its advanced power delivery, next-gen connectivity, and innovative design elements, it's the ultimate choice for building a high-performance PC.
