Product Code: PRO-Z790-S-WIFI

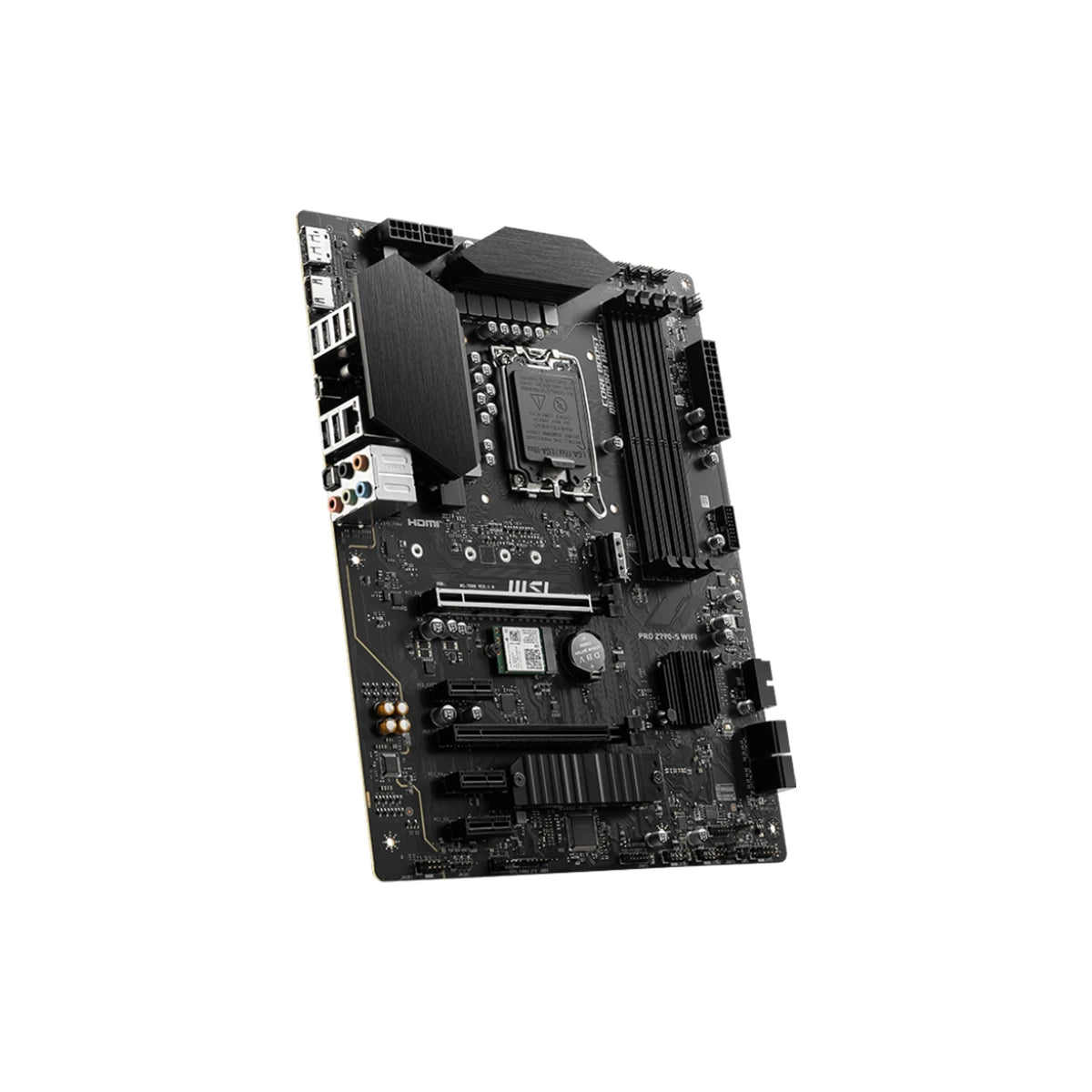

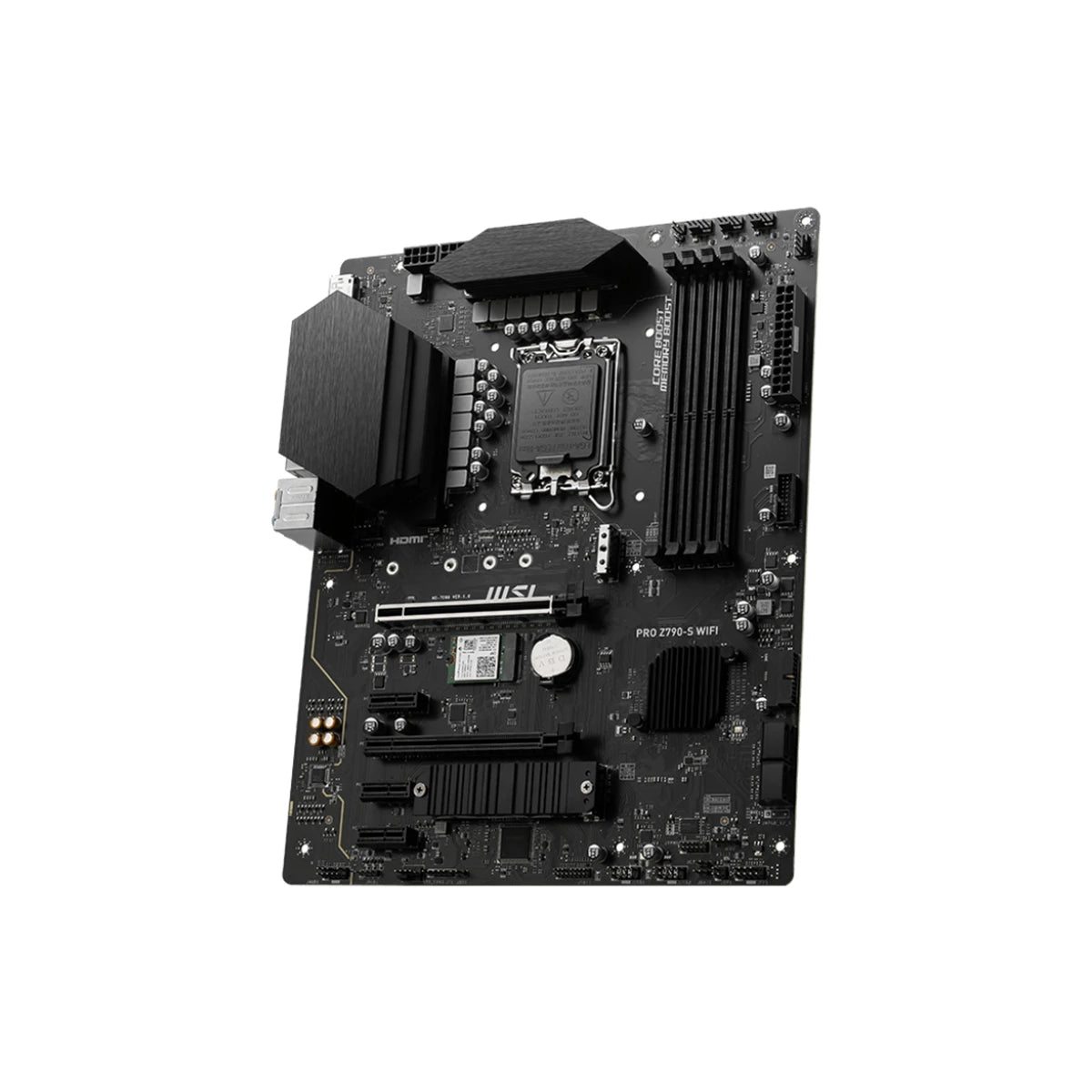

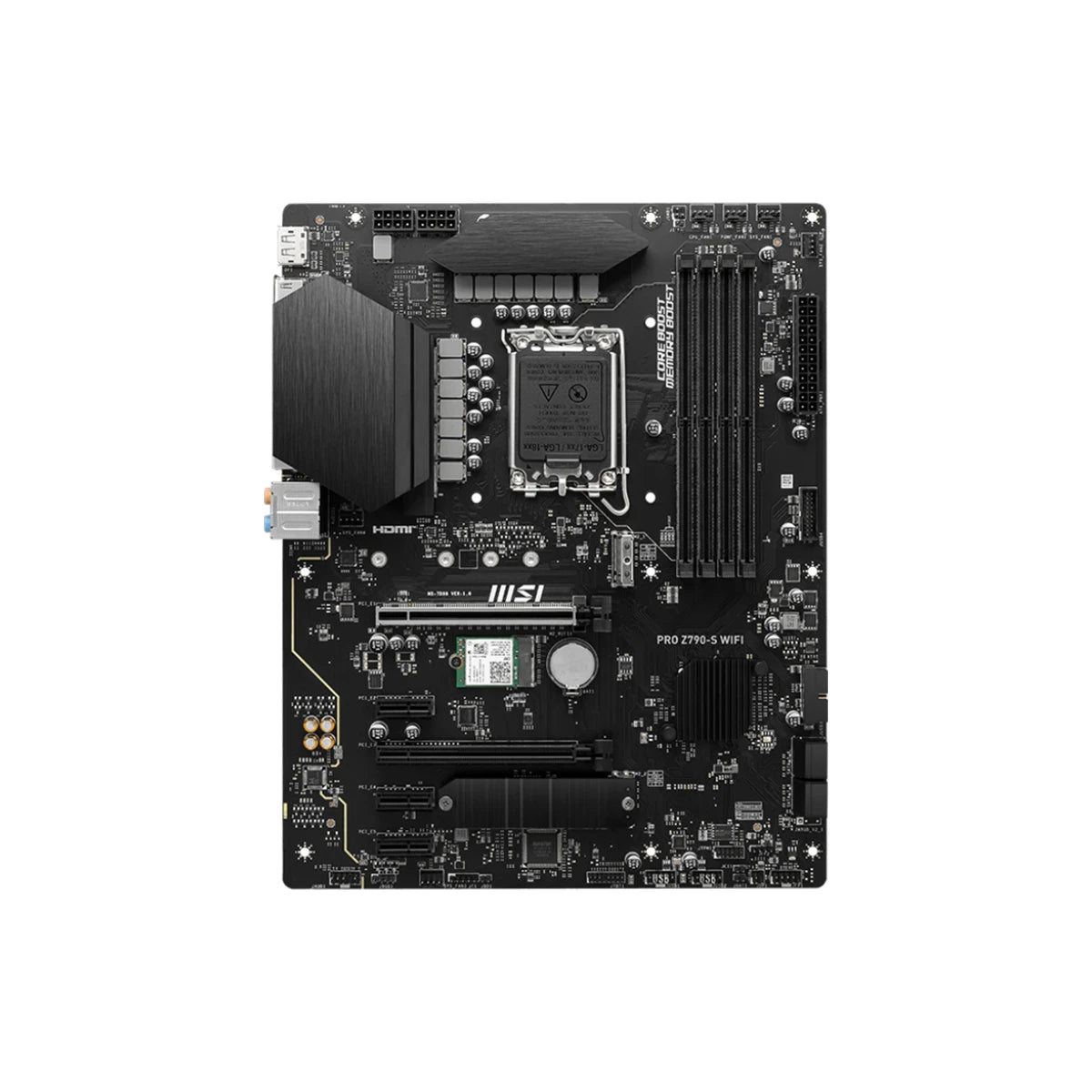

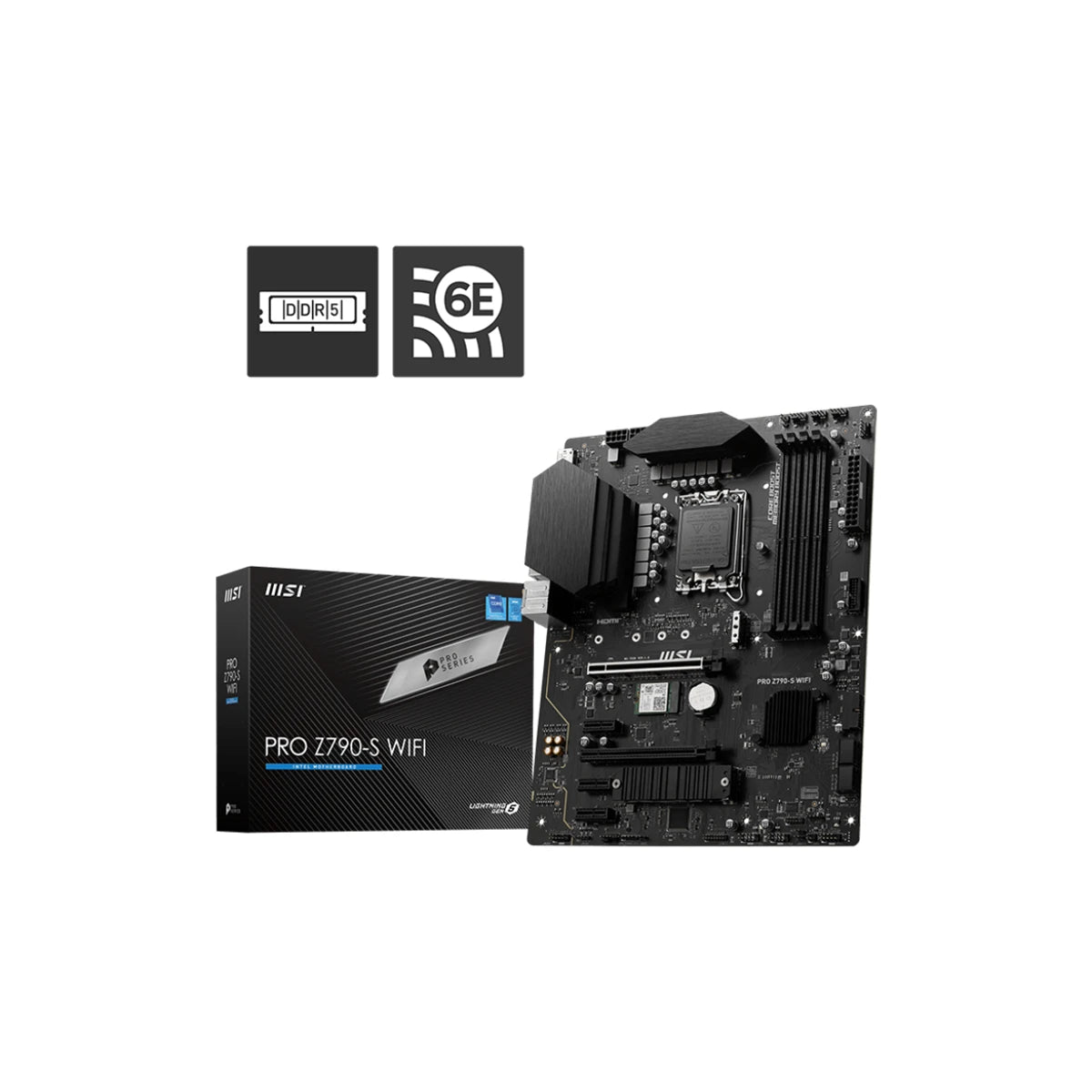

MSI Pro Z790-S WIFI DDR5 LGA 1700 ATX Motherboard

Rs. 40,000.00 Rs. 19,999.00

*GST & Offers are Calculated at Checkout!

Free Shipping
7-Day Return
Secure Checkout
  • Brand
    MSI
  • Color
    • Black
  • PCB Info
    ATX, 243.84mmx304.8mm

    Chipset
    INTEL Z790

    CPU
    Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA 1700

    Memory
    4x DDR5, Maximum Memory Capacity 256GB, up to 6600+(OC)

    Onboard Graphics
    1x HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz, 1x DisplayPort 1.4, maximum resolution of 4K 60Hz

    PCIe Slot
    2x PCI-E x16 slot, 3x PCI-E x1 slot

    Audio
    Realtek® ALC897 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output

    Storage Slot
    2x M.2, 4x SATA 6G

    RAID
    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

    USB
    2x USB 2.0 (Rear), 4x USB 2.0 (Front), 4x USB 5Gbps Type A (Rear), 4x USB 5Gbps Type A (Front), 1x USB 20Gbps Type C (Rear)

    LAN
    Realtek® RTL8125BG 2.5Gbps LAN

    Internal I/O
    1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 4x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x RGB LED connector (JRGB), 1x TPM pin header (Support TPM 2.0), 4x USB 2.0 ports, 4x USB 5Gbps Type A ports

    Wireless LAN & Bluetooth
    Intel® Wi-Fi 6E, Bluetooth® 5.3, MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps

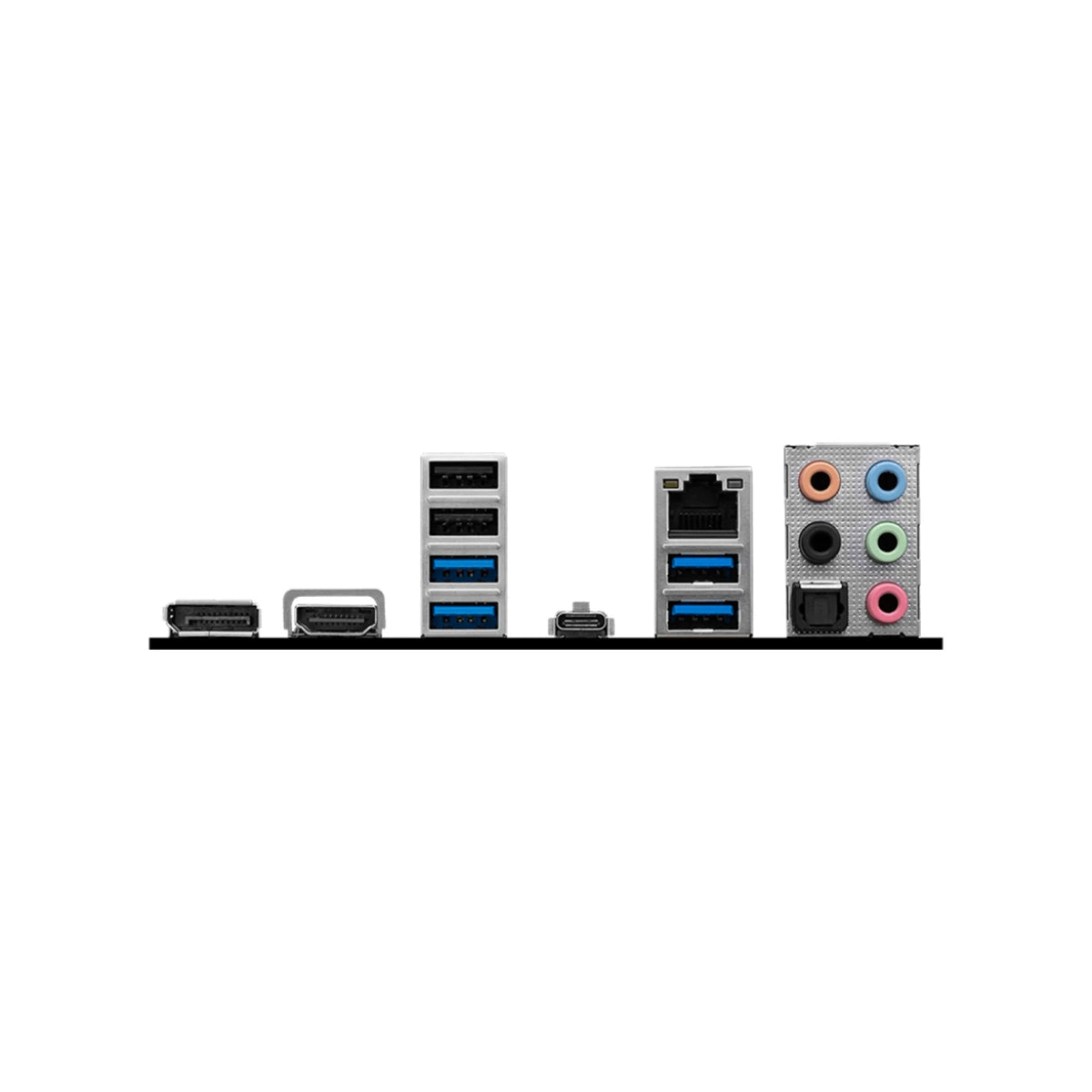

    Back Panel Ports
    DisplayPort, HDMI™, USB 2.0, USB 3.2 Gen 2x2 20Gbps (Type-C), 2.5G LAN, Audio Connectors, USB 3.2 Gen 1 5Gbps (Type-A), S/PDIF-OUT

    Operating System
    Support for Windows® 11 64-bit, Windows® 10 64-bit

    Box Content
    Motherboard, Regulatory Notice, 2x M.2 Screw / Standoff Screws, Wi-Fi Antenna, Wi-Fi Bracket, I/O Shield, 2 x SATA Cable, Quick Installation Guide

    Warranty
    3 Years
