Brand Logo of MSI
Product Code: Z790-GAMING-PLUS-WIFI

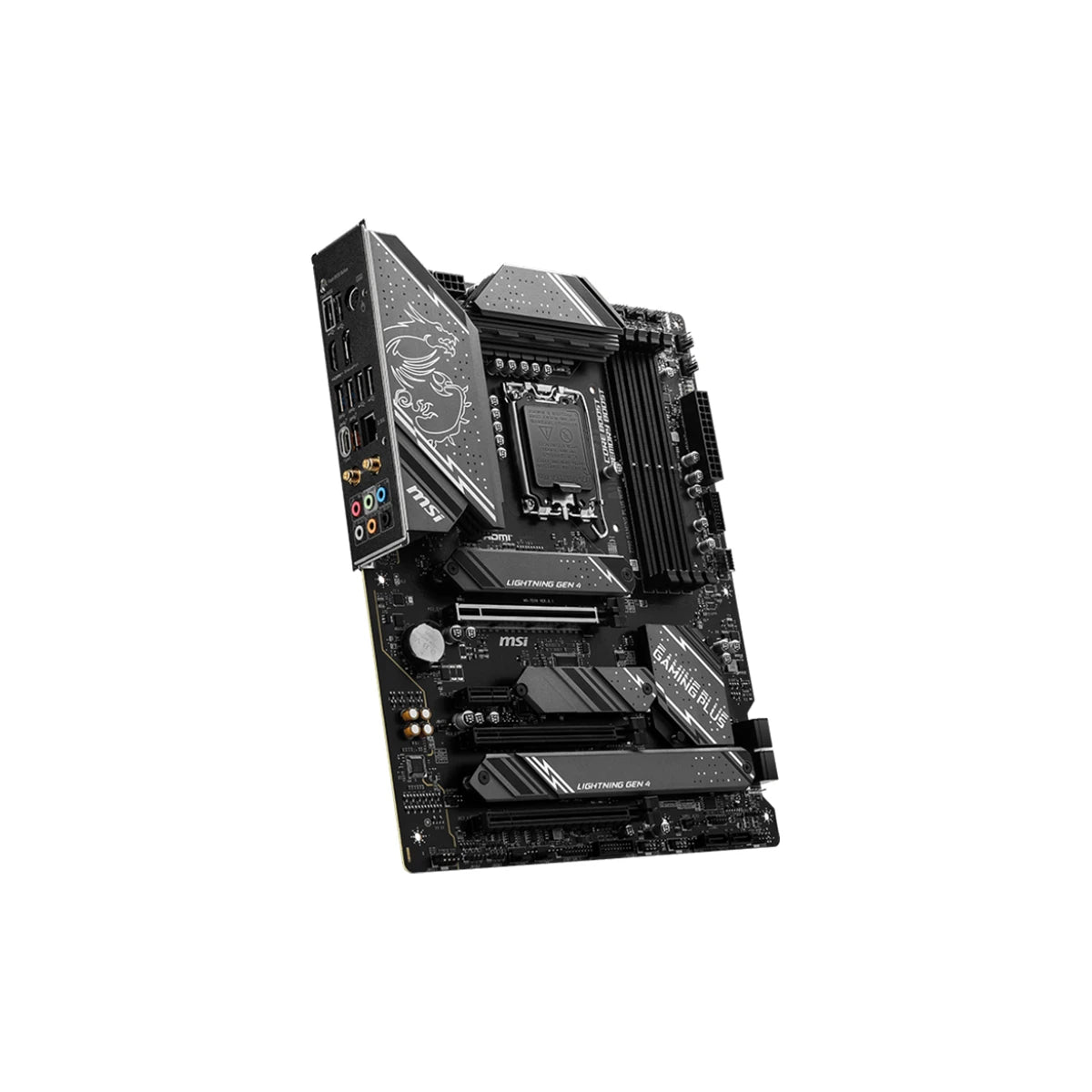

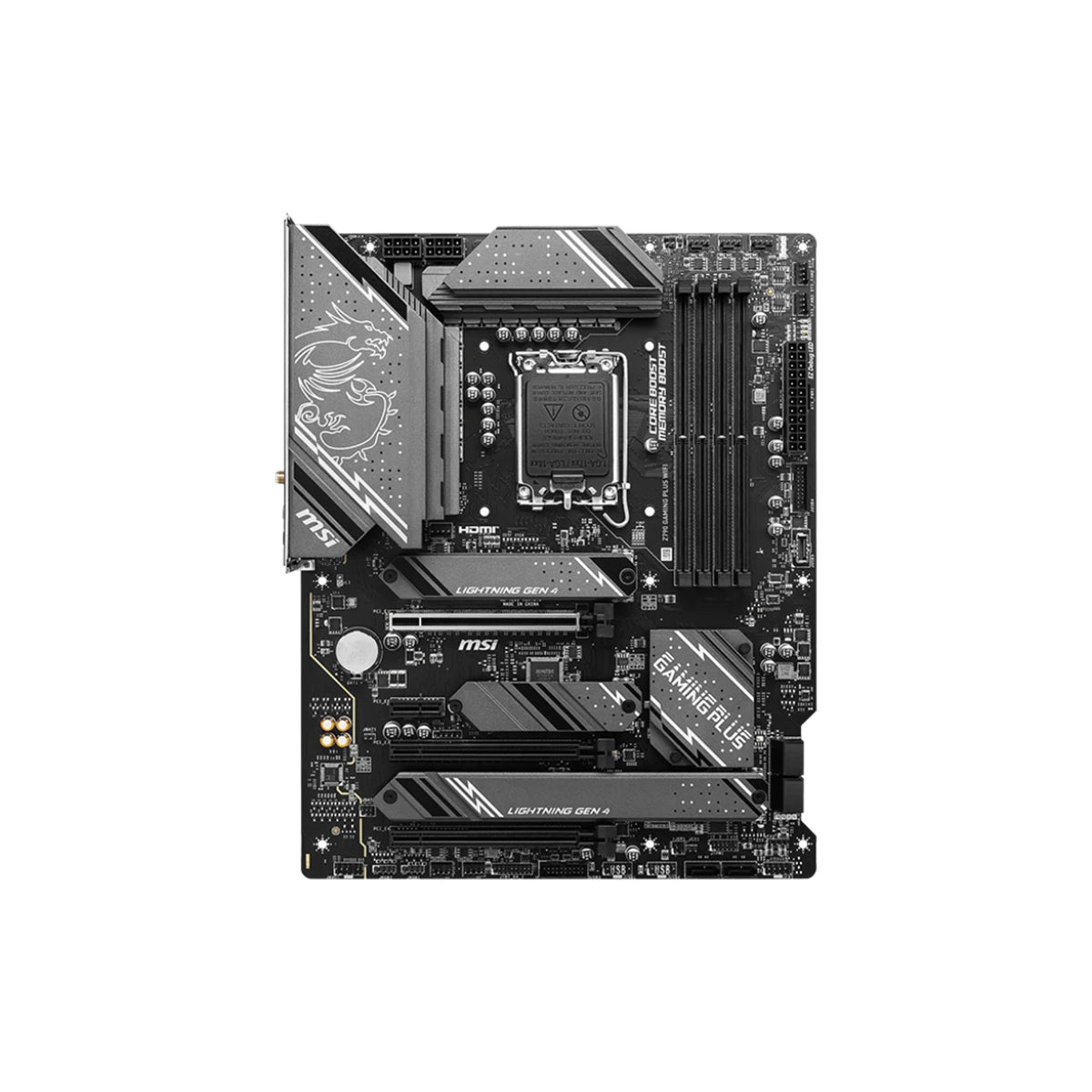

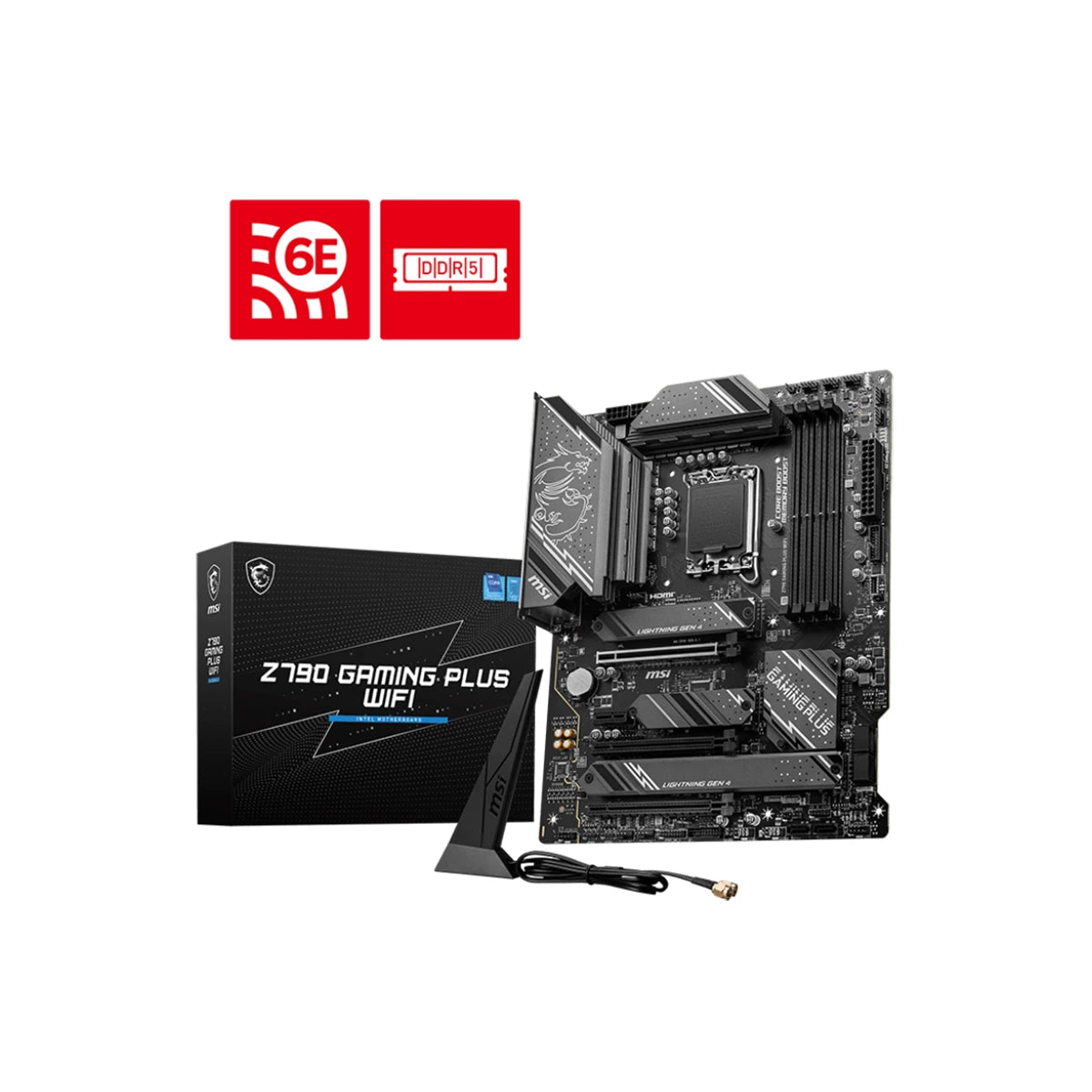

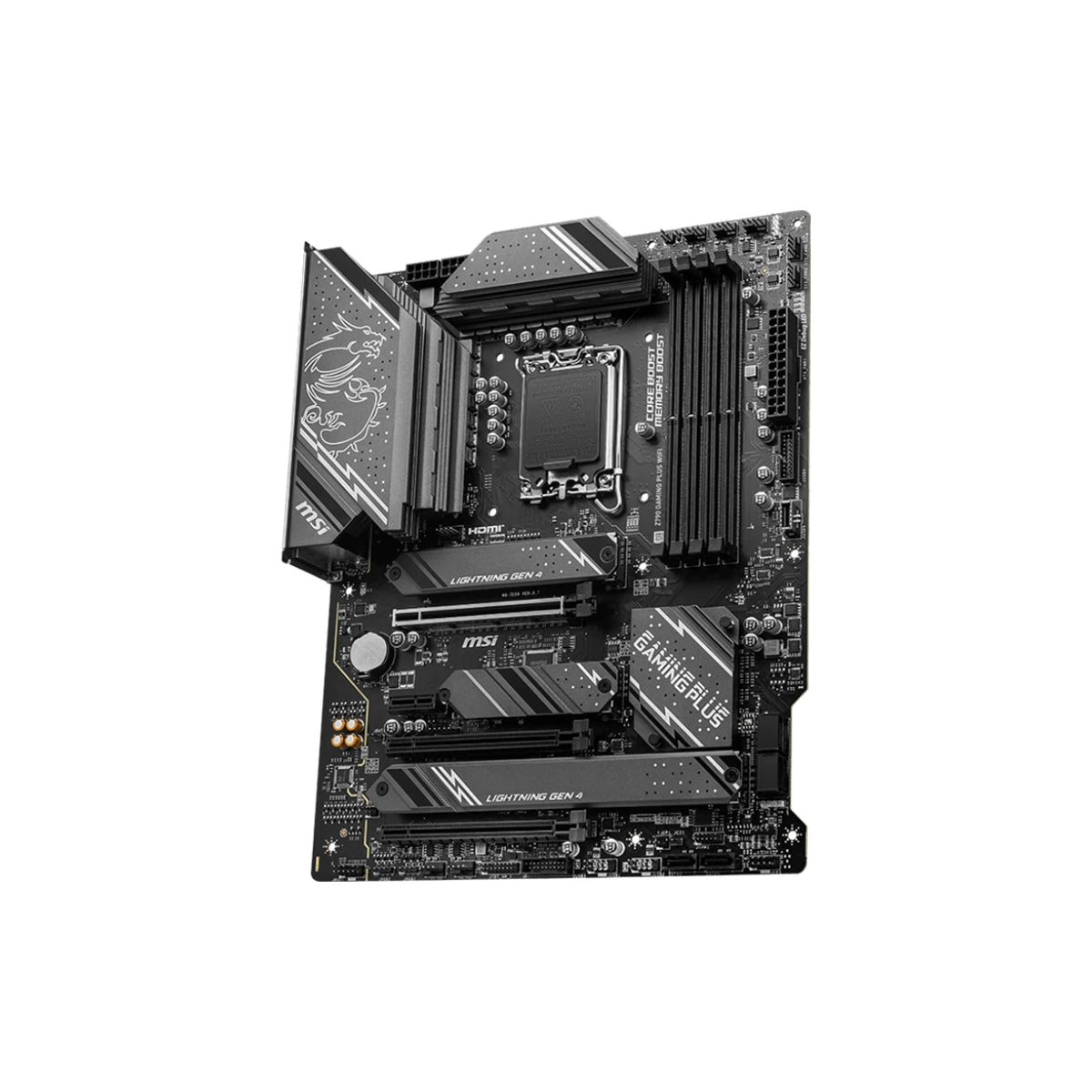

MSI Z790 Gaming Plus WiFi DDR5 LGA 1700 ATX Motherboard

Rs. 50,000.00 Rs. 25,777.00

*GST & Offers are Calculated at Checkout!

Free Shipping
7-Day Return
Secure Checkout
  • Brand
    MSI
  • Color
    • Black
  • PCB Info
    ATX, 243.84mmx304.8mm

    Chipset
    INTEL Z790

    CPU
    Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA 1700

    Memory
    4x DDR5, Maximum Memory Capacity 256GB, up to 7200+(OC)

    Onboard Graphics
    1x HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz, 1x DisplayPort 1.4, maximum resolution of 4K 60Hz

    PCIe Slot
    3x PCI-E x16 slot, 1x PCI-E x1 slot

    Audio
    Realtek® ALC897 Codec, 7.1-Channel High Definition Audio

    Storage Slot
    4x M.2, 6x SATA 6G

    RAID
    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

    USB
    4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 4x USB 5Gbps Type A (Front), 1x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Front), 1x USB 20Gbps Type C (Rear)

    LAN
    Intel® 2.5Gbps LAN

    Internal I/O
    1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 6x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Tuning Controller connector (JDASH), 2x Addressable V2 RGB LED connector (JARGB_V2), 2x RGB LED connector (JRGB), 1x TPM pin header (Support TPM 2.0), 1x USB4 card connector (JTBT_U4_1, supports RTD3), 4x USB 2.0 ports, 4x USB 5Gbps Type A ports, 1x USB 10Gbps Type C ports

    Wireless LAN & Bluetooth
    Intel® Wi-Fi 6E, Bluetooth® 5.3, FIPS, FISMA

    LED Feature
    4x EZ Debug LED

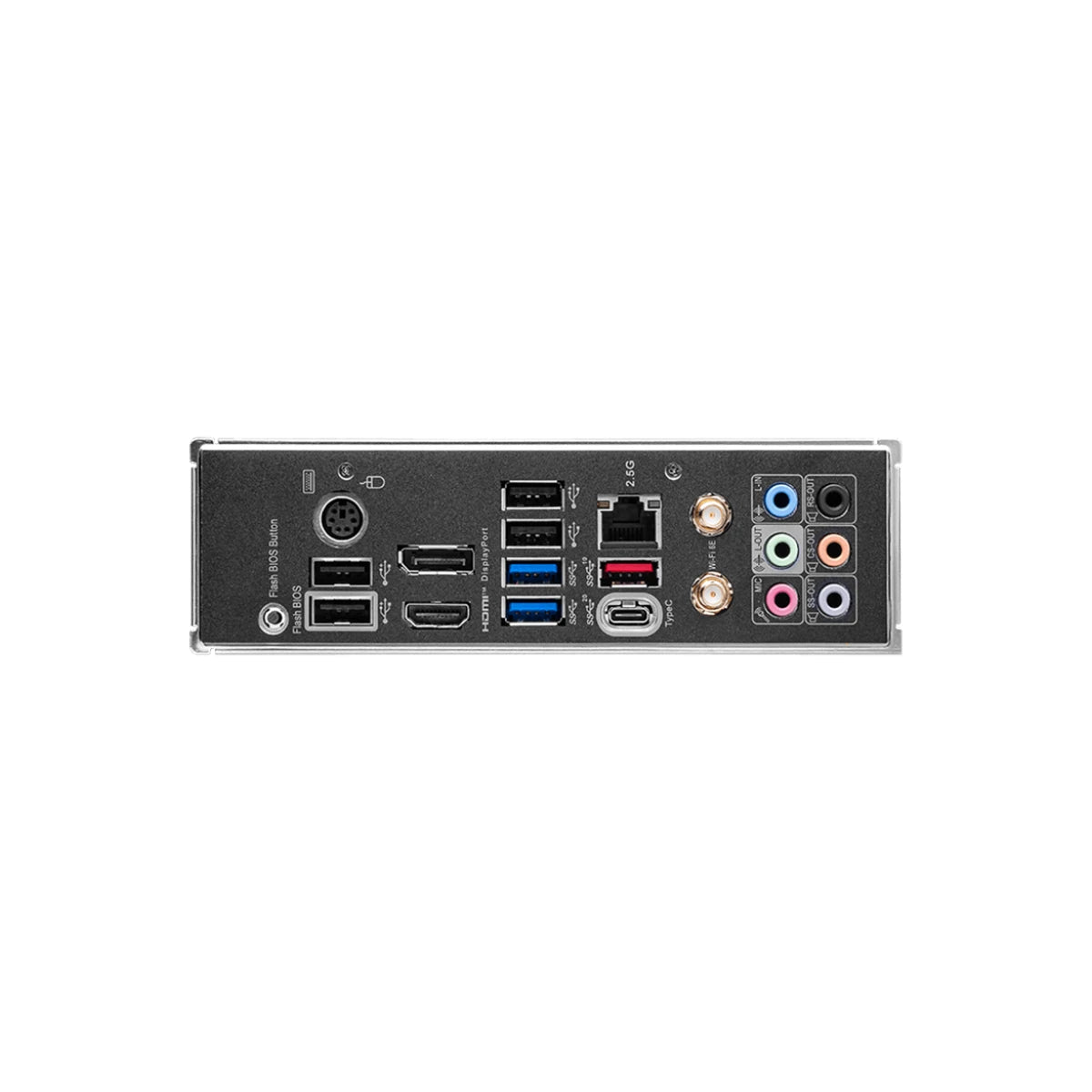

    Back Panel Ports
    Keyboard / Mouse, DisplayPort, USB 2.0, 2.5G LAN Port, Wi-Fi / Bluetooth Antenna, Audio Connectors, Flash BIOS Button, USB 2.0, HDMI™ 2.1 Port, USB 3.2 Gen 1 5Gbps Type-A, USB 3.2 Gen 2x2 20Gbps Type-C, USB 3.2 Gen 2 10Gbps Type-A

    Operating System
    Support for Windows® 11 64-bit, Windows® 10 64-bit

    Box Content
    Motherboard, Regulatory Notice, Quick Installation Guide, 2 x M.2 Clips, Wi-Fi Antenna, 2 x SATA Cables, Driver DVD, EZ M.2 Clips, M.2 Screws / Standoff Sets, Cable Sticker

    Warranty
    3 Years
