Thermaltake TH420 V2 Ultra EX ARGB Sync AIO CPU Liquid Cooler

Thermaltake Th420 V2 Ultra Ex Argb Sync Aio Cpu Liquid Cooler

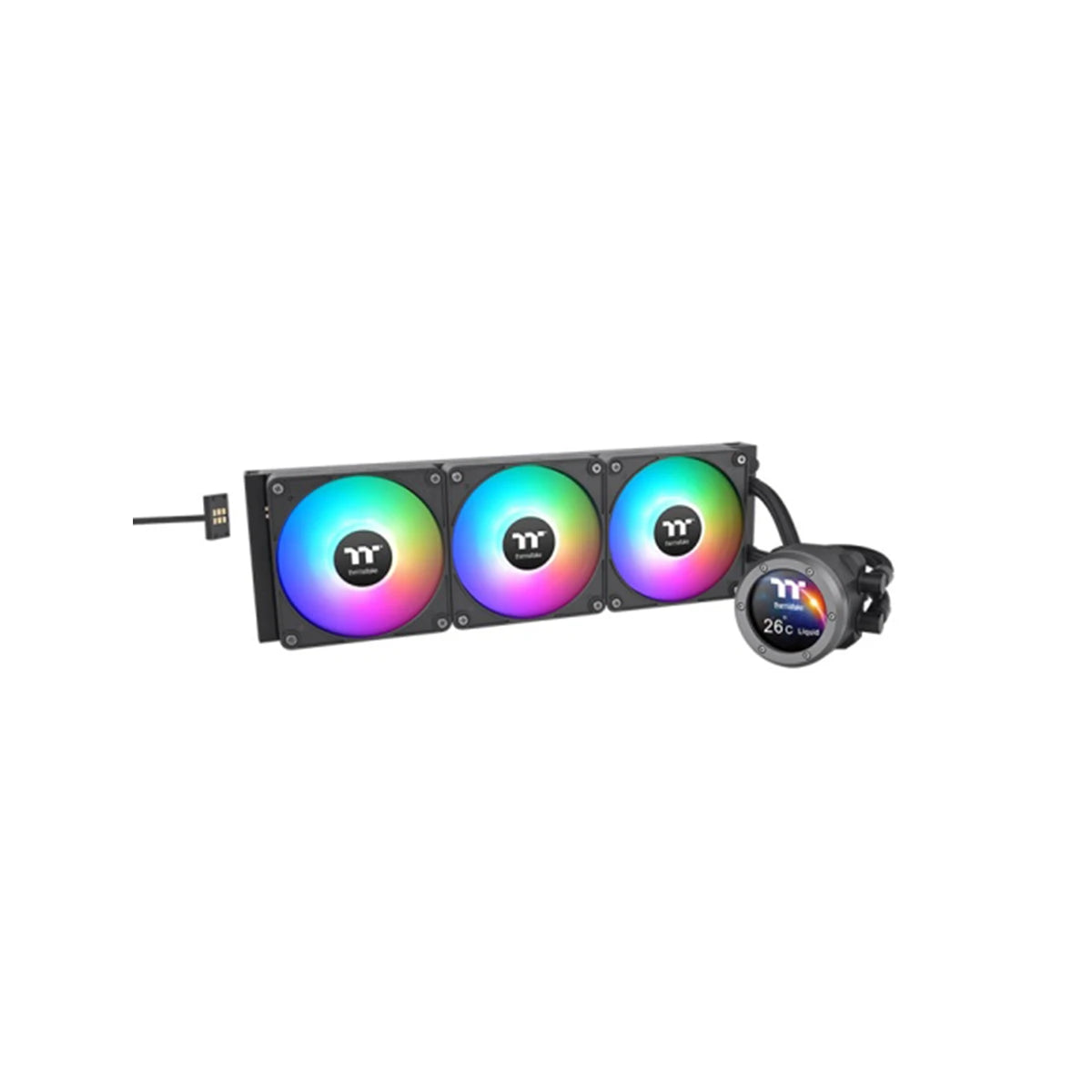

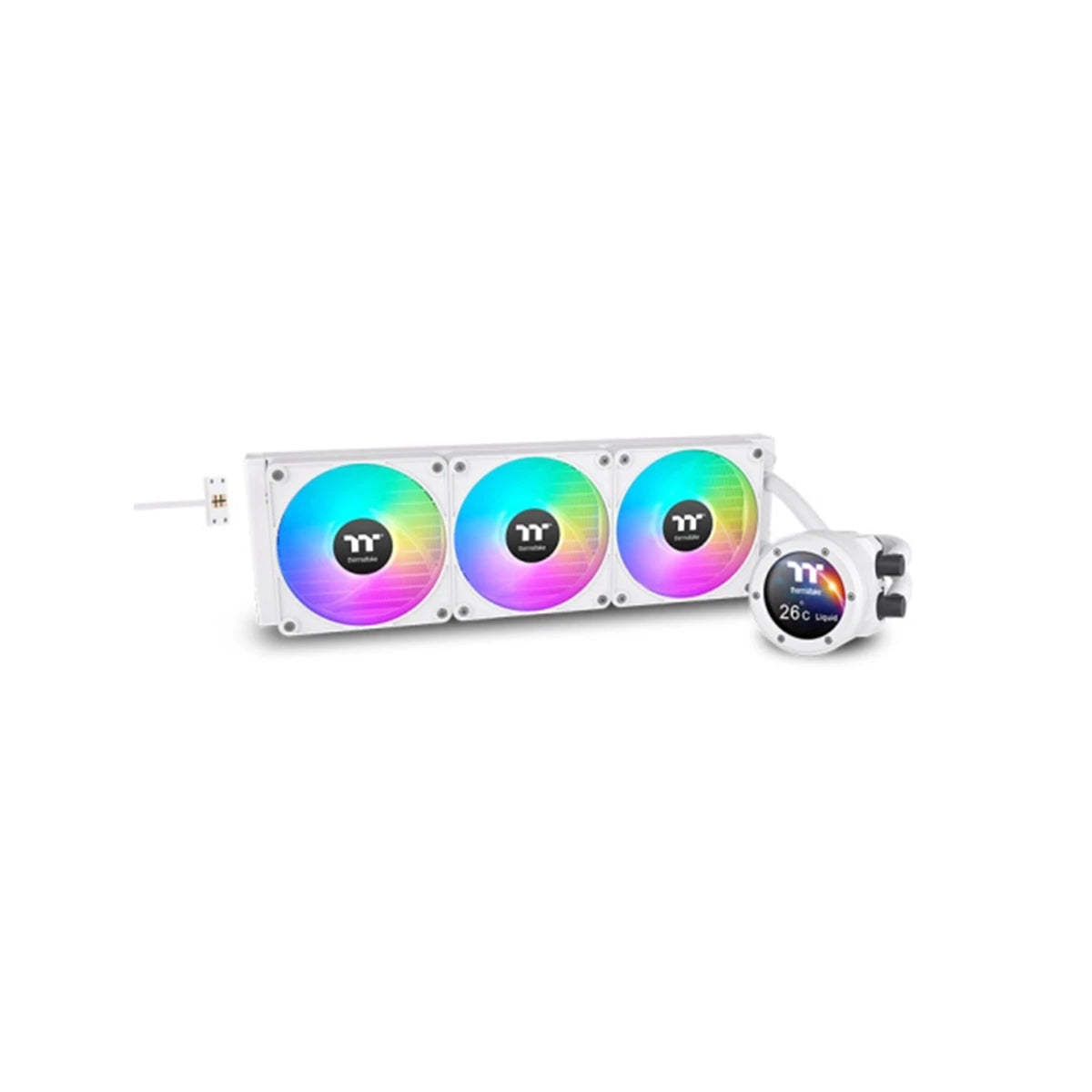

Introducing the Thermaltake TH420 V2 Ultra EX ARGB Sync AIO CPU Liquid Cooler—a top-tier cooling solution designed for enthusiasts seeking both exceptional thermal performance and striking aesthetics. With its expansive 420mm radiator, customizable LCD display, and advanced ARGB lighting, this cooler ensures your high-performance system remains cool under pressure while showcasing your unique style.

❄️ Unmatched Cooling Efficiency

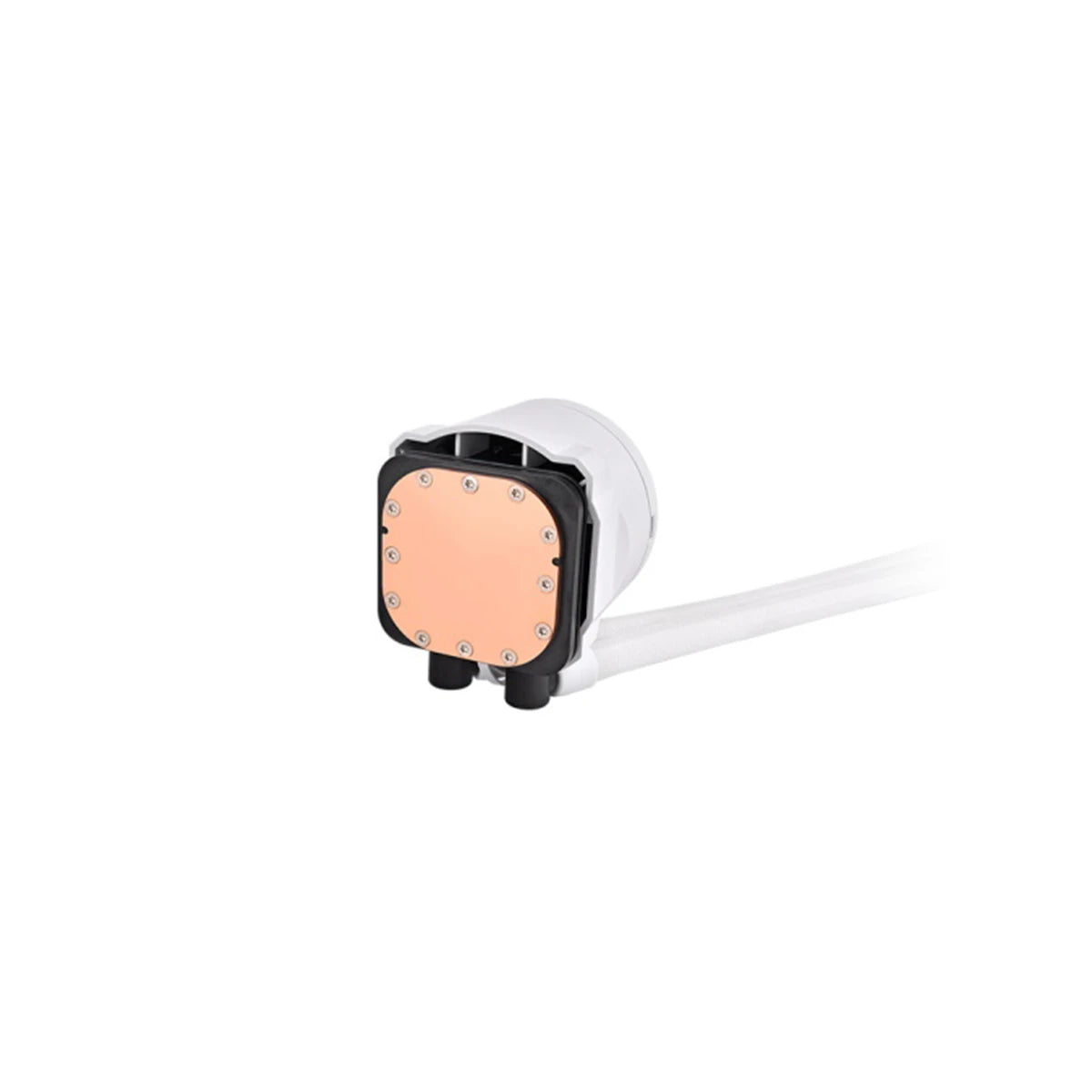

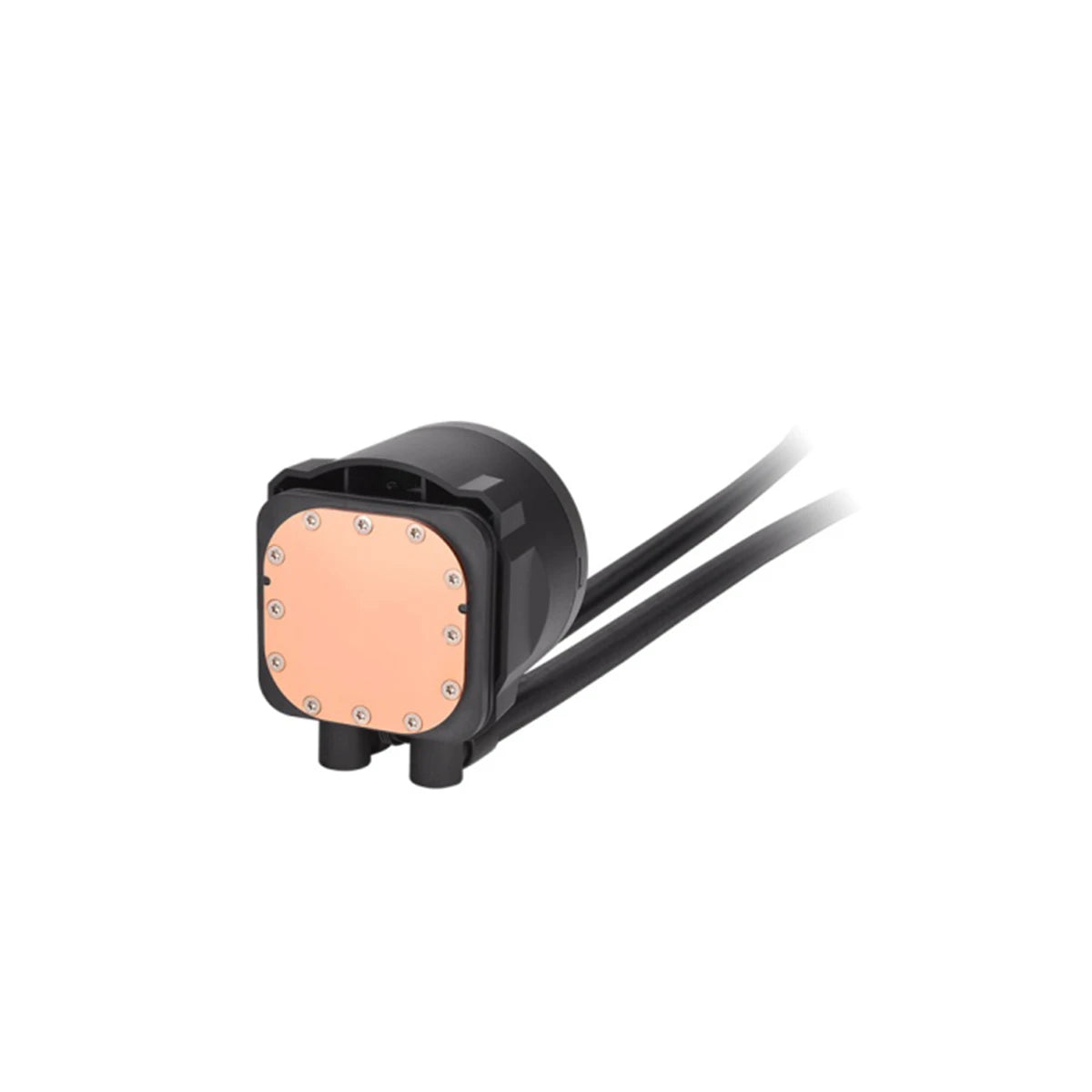

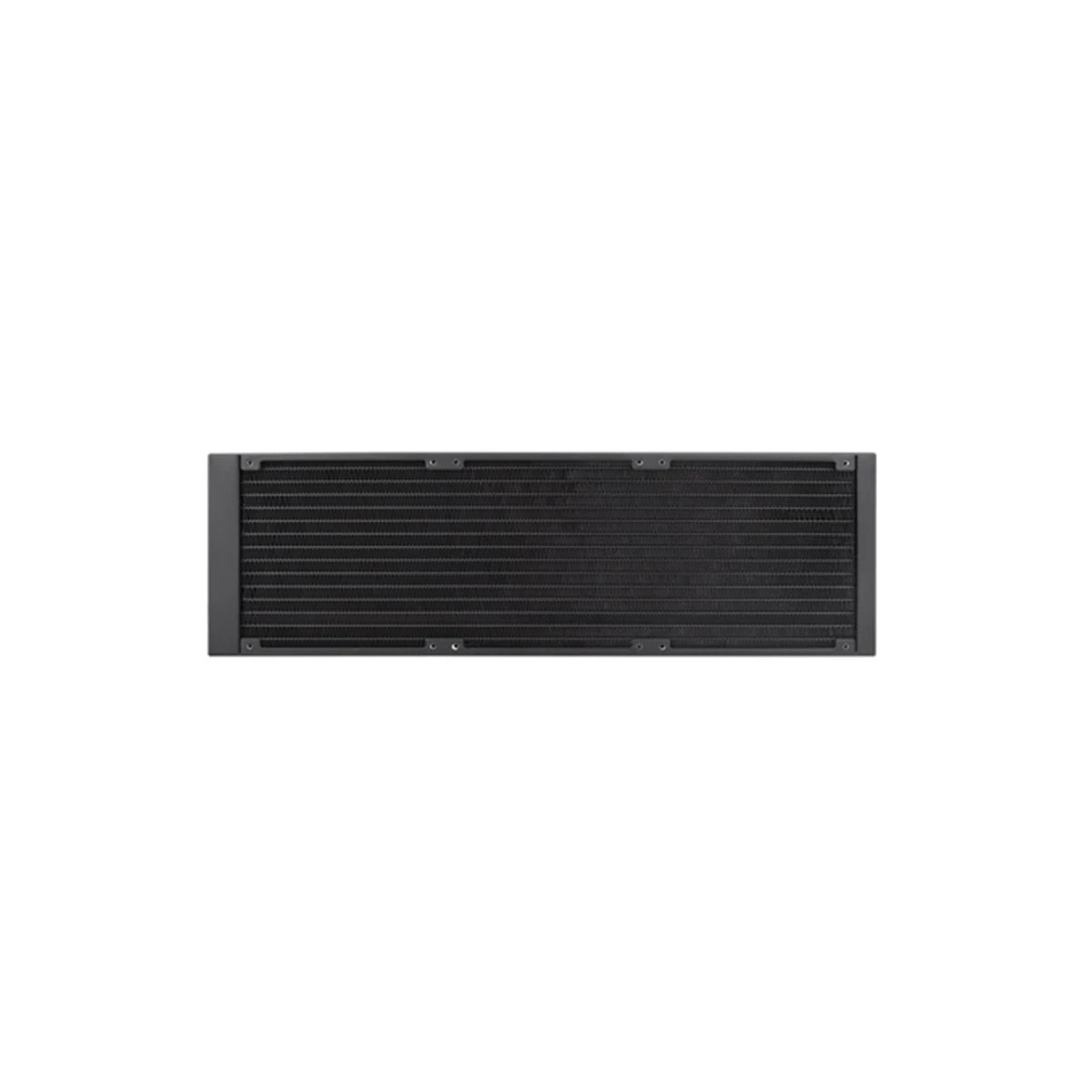

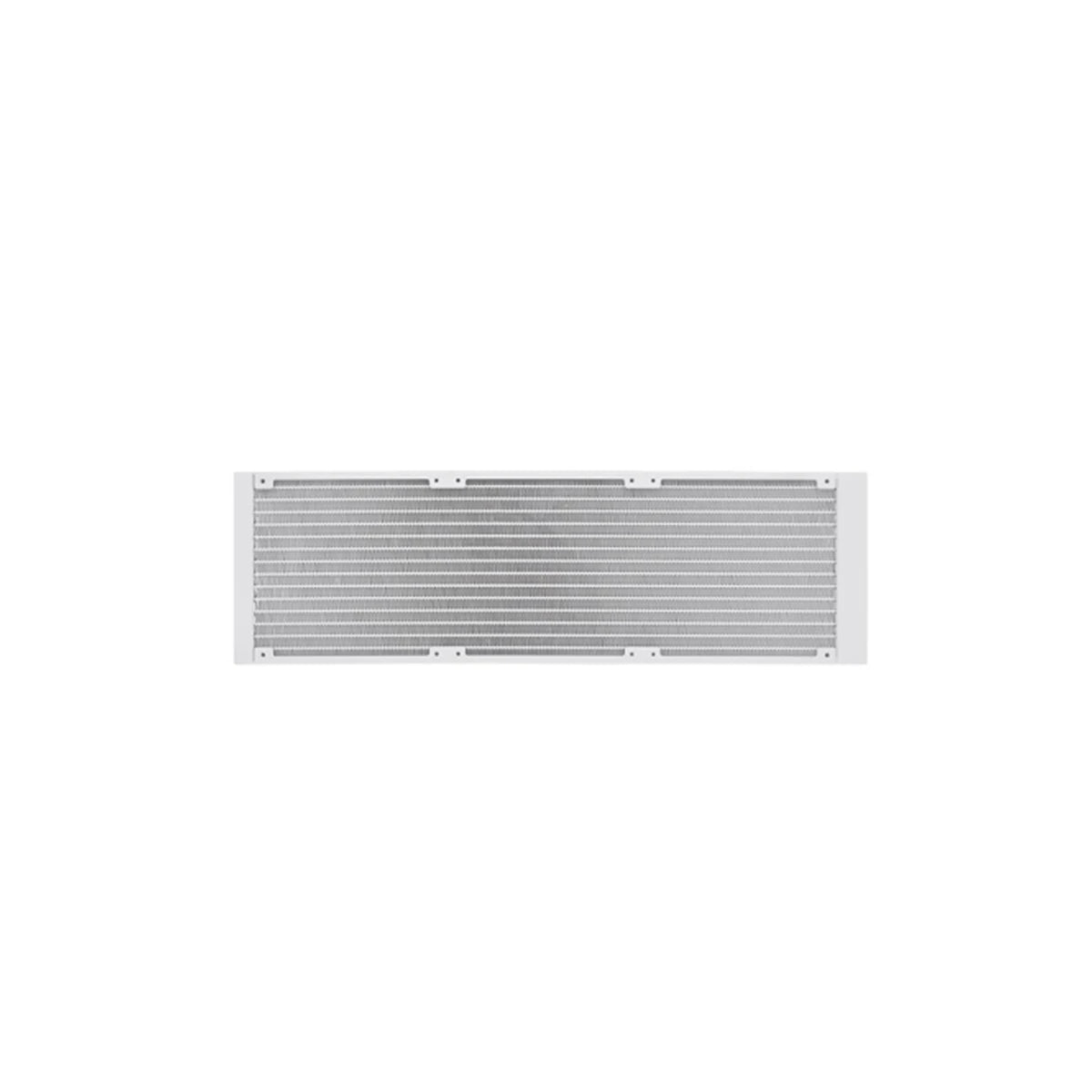

• 420mm Slim Radiator: Features a 27mm thick aluminum radiator paired with a 20mm thickened copper chamber, delivering superior heat dissipation for high-end CPUs.
• High-Performance Fans: Equipped with three CT140 EX ARGB Sync fans, each providing 90.3 CFM airflow and 3.07 mm-H₂O static pressure at a noise level of 30.7 dBA, ensuring efficient and quiet cooling.
• Reliable Pump: The high-quality pump operates between 1500–3300 RPM, facilitating maximum water circulation to keep your system cool.
• Low Evaporation Tubes: Utilizes rubber tubes that effectively minimize coolant loss, eliminating the need for refills.

🌈 Dynamic Argb Lighting & Modular Design

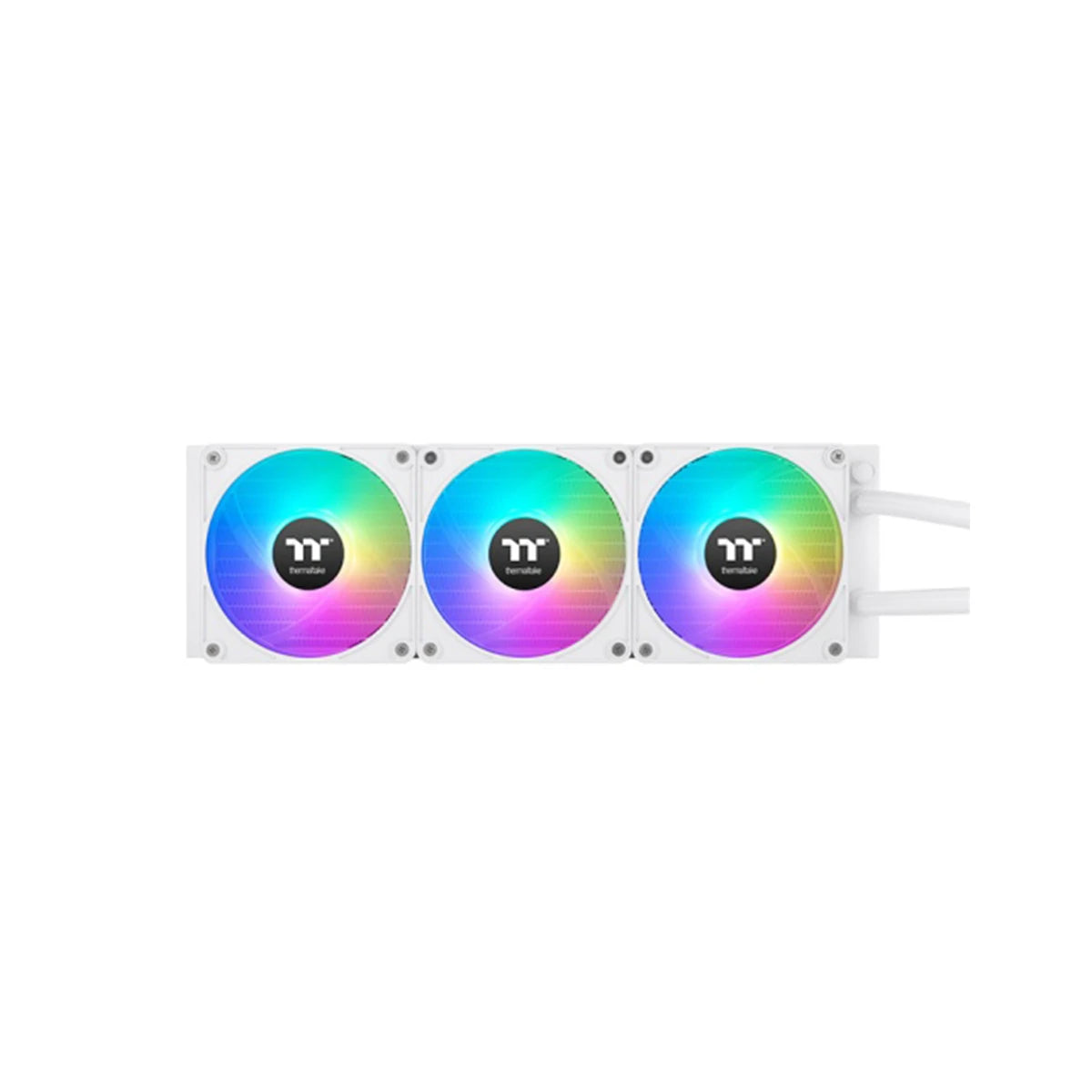

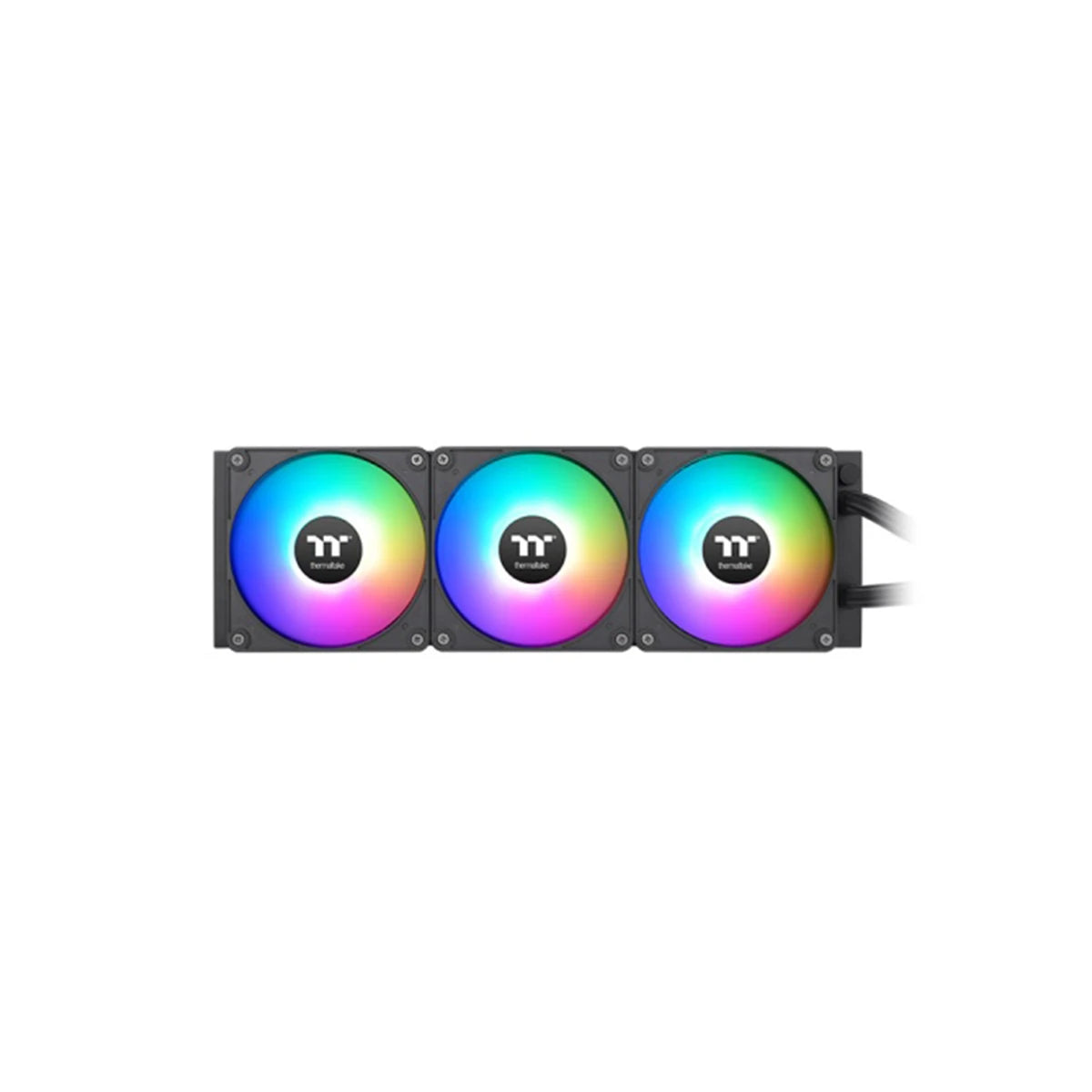

• CT140 EX ARGB Sync Fans: Offer vibrant lighting effects that can be synchronized with your motherboard's ARGB software, including ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome.
• MagForce 2.0 Technology: Features magnetic connectors with enlarged pogo pin contact pads, allowing for secure and streamlined fan installation with minimal cable clutter.
• Fully Modular Design: Provides flexibility with a single-cable connection for all fans or individual cables, catering to various build preferences.

🖥️ Customizable 2.1” Lcd Display

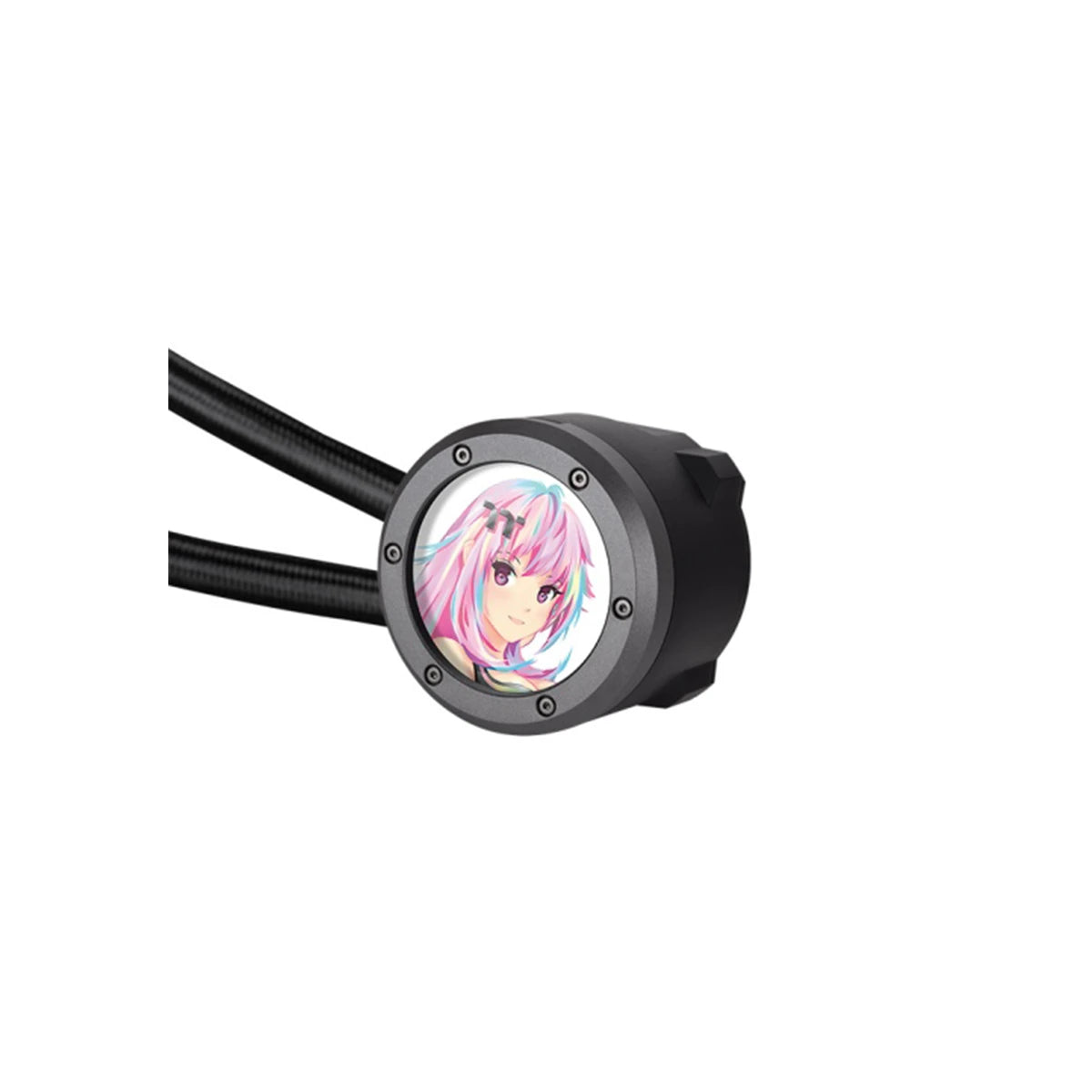

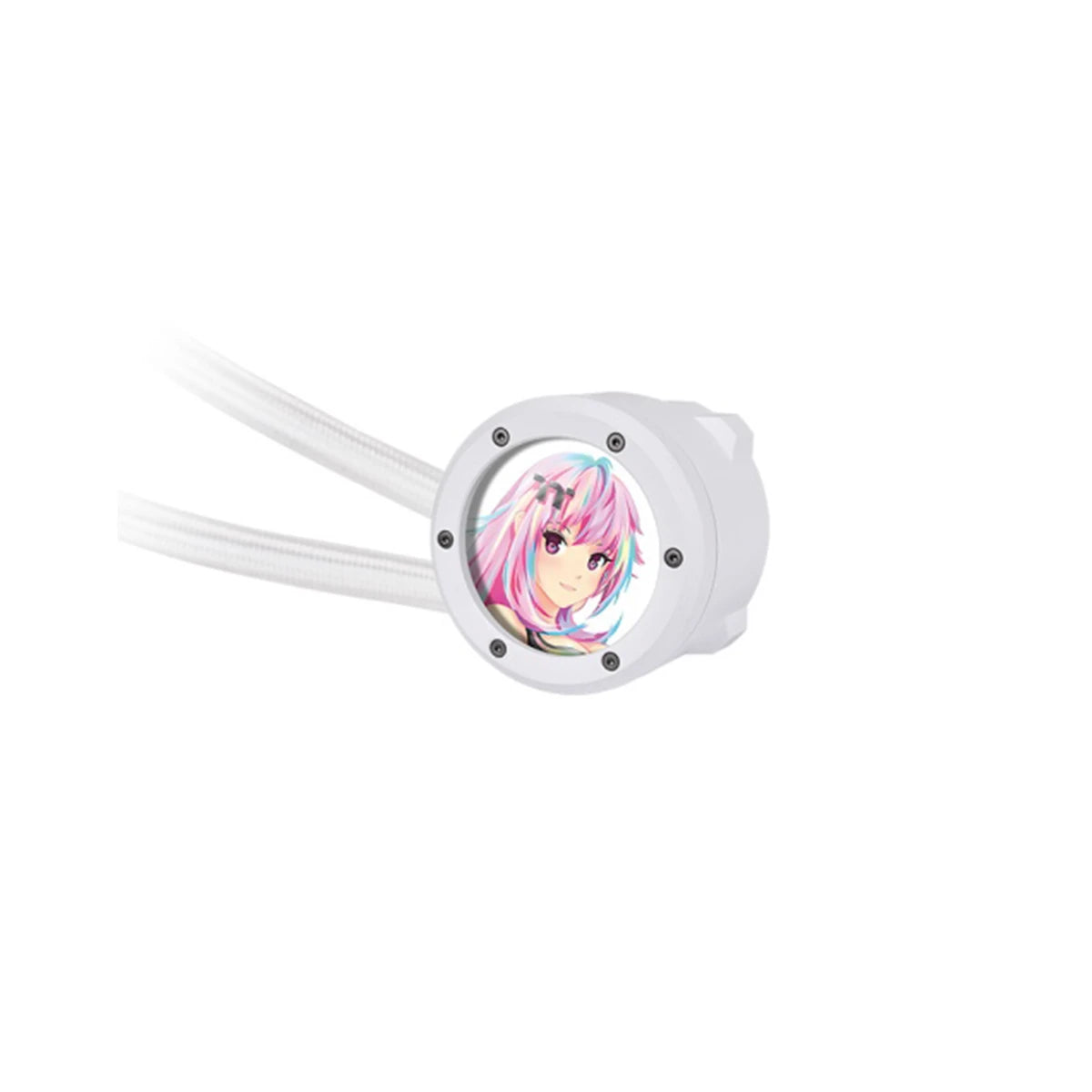

• High-Resolution Screen: The 480x480 TFT-LCD display on the pump cap enables you to showcase images, GIFs, or system information, adding a personalized touch to your build.
• TT RGB Plus 2.0 Integration: Customize the display with real-time system data, personal images, or animations using the TT RGB Plus 2.0 software.
• TT PlayLink App: Facilitates easy customization of the LCD display via your smartphone, allowing quick uploads of visuals.

🔧 Broad Compatibility & Easy Installation

• Intel Socket Support: Compatible with LGA 2066, 2011-3, 2011, 1851, 1700, 1200, 1156, 1155, 1151, 1150.
• AMD Socket Support: Compatible with AM5, AM4, AM3+, AM3, AM2+, AM2, FM2, FM1.
• User-Friendly Installation: Includes all necessary mounting hardware and thermal paste for a straightforward setup.

📦 Technical Specifications

• Radiator Dimensions: 456 x 139 x 27 mm
• Fan Dimensions: 140 x 140 x 25 mm
• Fan Speed: PWM 500–1800 RPM
• Air Flow: 90.3 CFM per fan
• Static Pressure: 3.07 mm-H₂O per fan
• Noise Level: 30.7 dBA
• Pump Speed: PWM 1500–3300 RPM
• Tube Length: 460 mm
• Display Resolution: 480x480 (RGB) px
• Display Interface: Micro USB to USB (9 PIN)
• System Compatibility: Windows 10/11
• TDP Support: Up to 65W
